To download your language go to www.side-power.com
SLEIPNER MOTOR AS
P.O. Box 519
N-1612 Fredrikstad
Norway
www.side-power.com
Control Panels
PJC 211 & PJC 212
Document id:
2917
Revision:
12
Date:
2020
© Sleipner Motor AS 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJC 212 and is the answer not in the manual?

Questions and answers

Summary of Contents for Side-Power PJC 212

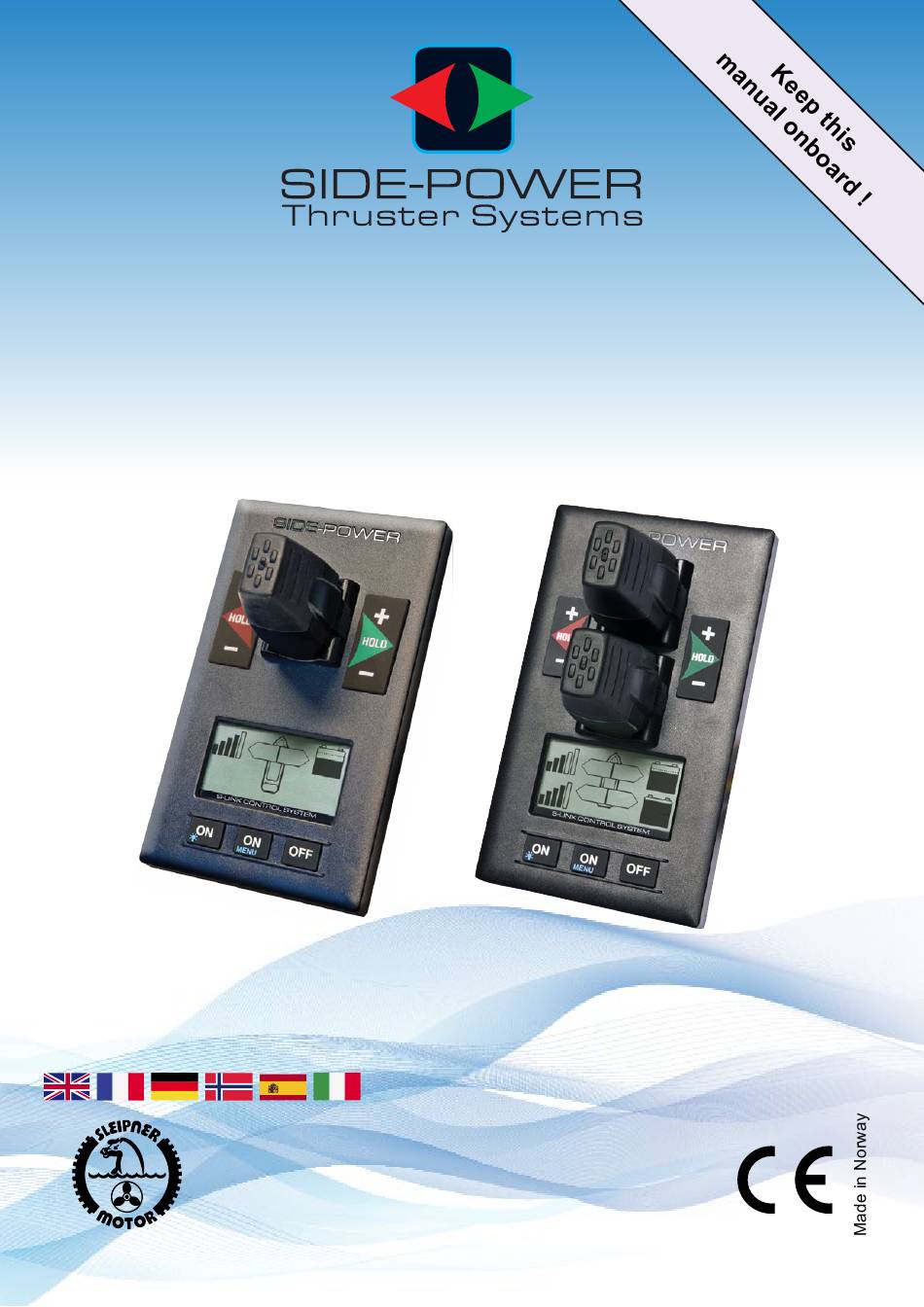

  • Page 1 Control Panels PJC 211 & PJC 212 To download your language go to www.side-power.com SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Document id: 2917 www.side-power.com Revision: Date: 2020 © Sleipner Motor AS 2020...
  • Page 2: Table Of Contents

    Contents Considerations and Precautions ........... 3 Installation Manual Panel Layout & Functions ............4 Technical Specifications & Measurements ....... 5 Connections ................6 Setup Procedure ............... 7 Menu System Setup ..............7 System Devices ................ 7 Control Panel Setup Buttons ............ 8 Combining Stabilizer with AC &...
  • Page 3: Considerations And Precautions

    S-link control system without the designated and approved interface will render all warranties and responsibilities for the complete line of Side-Power products connected void and null. If you are interfacing by agreement with Sleipner and through a designated Side-Power supplied interface, you are still required to also install at least one original Side-Power control panel to enable effi...
  • Page 4: Panel Layout & Functions

    Panel Layout & Functions MC_0116 PJC-211 Speed control joystick for thruster Holding function for au- to-running of bow and stern thrusters together in the direc- tion of the arrows at selected Information display, power see following pages for details. Press “+” for more and “-” for less power (6 steps).
  • Page 5: Technical Specifications & Measurements

    Technical Specifi cations and Measurements MC_0104 Description Minimum Maximum Units Comment Input voltage Volt DC Powered from S-Link Current Voltage External Alarm Buzzer Voltage Volt DC External Alarm Buzzzer Current Internally fused Description Value Operating temperature -10 to + 60 degrees C. Storage temperature -20 to + 70 degrees C.
  • Page 6: Connections

    Connections MC_0104 Connections for optional external buzzer/audible alarm. External alarm/buzzer connection (S-link) Supply +12V / 24V DC Internal fuse/relay External alarm buzzer 12V / 24V DC - max 0,5A PJC 211 & 212 2917 2020...
  • Page 7: Setup Procedure

    Setup Procedure MC_0094 At the fi rst startup of a new system, one of the two screens below will be shown: SETUP DO NOT MATCH SYSTEM.  FOR AUTO SETUP New devices found. Not in confl ict with other devices. Press button below the -symbol to auto setup.
  • Page 8: Control Panel Setup Buttons

    SETUP NOTICE regarding following Location modes: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display and thruster(s) at the right side of the display.
  • Page 9: Ac System - Pdc 301 Setup

    BOW-STB or STERN-STB for starboard thruster. (NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display and thruster(s) at the right side of the display.)
  • Page 10: Dc System - Automatic Main Switch Setup

    (i.e a catamaran), use BOW or STERN for port thruster, BOW-STB or STERN-STB for starboard thruster. (NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display and thruster(s) at the right side of the display.)
  • Page 11: Dc System - Rcrs 1 & Rcrs 2 Setup

    DC System - RCRS 1 & RCRS 2 Setup MC_0097 RCRS 1 & RCRS 2 BOW/STERN Thrust Values: 0-100% (Default 75%) Set the amount of thrust given by the remote control. In a bow/stern confi guration, try to balance the thrust so that the boat moves straight sideways when both thrusters are operated simultanously with input from the remote only.
  • Page 12: Hold Calibration

    Hold Calibration MC_0098 Calibrates the HOLD-function to get balanced thrust from the bow and stern thruster. If only one thruster or PJC221/PJC211 you will not get any balanced thrust, but you can adjust the maximum thrust from HOLD buttons. Hold-button represents 1/6 of the calibrated value. (NB: HOLD CALIBRATION is not available until SETUP is completed.) Setup Default in systems...
  • Page 13: Information - Pdc101 & Pdc201

    Information - PDC101 & PDC201 MC_0098 PDC101 and PDC 201 (Controller for AC electric thrusters) Motor Speed: RPM on motor output shaft Motor Power: Motor power consumption in % (PDC201 only) Motor Temp: Temperature measured in motor Thrust: Thrust level from joystick/hold buttons Information - PDC301 MC_0098 PDC-301 (SAC controller)
  • Page 14: Menu System - Panel Setup

    Menu System - Panel Setup MC_0101 • Move between parameters with the (stern) joystick. • Press the button below to return to the previous menu. • Press the button below to edit the selected parameter. • Parameter value will start to blink, use joystick to alter value. •...
  • Page 15: Alarm System

    WARNING! HIGH SPEED. STABILIZER NOT ACTIVE! (Only for yachts equipped with a Side-Power Stabilizer system) Warning will show when yacht is driven at high speed with stabilizer system inactive. Please refer to the Stabilizer ECU manual for speed settings.
  • Page 16: Proportional Thruster Display

    Proportional Thruster Display MC_0053 PJC221 PJC222 PJC211 PJC212 Status indicators for bow BOW-STB Status indicators for starboard thruster. (Port bow thruster bow thruster. Only shown in in a dual bow thruster setup). a dual bow thruster setup. Runtime indicator will be shown here Battery indicator will be in a single DC electric bow thruster shown here in a single DC...
  • Page 17: Proportional Thruster Display Symbols

    Proportional Thruster Display Symbols MC_0053 DC Thrusters: Motor temperature indicator. Battery indicator. From 70°C/ 158°F to 130°C/266°F. From 8.5V to 12V for 12V thrusters, 15V to 24V for 24V thrusters Symbol shown when a DC Thruster is used in a dual bow or dual stern setup: Battery indicator.
  • Page 18: Hold Function

    HOLD Function MC_0053 The ‘HOLD’ function is for auto-run ning of bow and stern thrusters together in the direction of the arrows at selected power. Press “+” for more and “-” for less power (6 steps). The ‘HOLD’ function is normally used to hold the boat into the dock while mooring. The ‘HOLD’ function can be deactivated by running any thruster in the opposite direction from any control unit.
  • Page 19: Menu System

    All system devices will be erased from memory. (Setup procedure must be followed to reconfi gure the system) STABILIZER (Shown only for yachts equipped with a Side-Power Stabilizer system) Press the button below to edit the selected parameter. ON/OFF will start to blink, use joystick to alter value.
  • Page 20: Alarm Descriptions

    Alarm Descriptions MC_0053 "Ext. buzzer "Err. "Auto Errors shown in display activation at Description Action Reset" No." Alert Level" ² Motor current too high. "Thruster must be serviced by author- Motor Overcurrent ized personnel, reset or power OFF/ON ¹ ." ²...
  • Page 21 Alarm Descriptions MC_0053 "Ext. buzzer "Err. "Auto Errors shown in display activation at Description Action No." Reset" Alert Level" Actuator Fault ² Actuator not getting any power "Check actuator connection or pow- er to actuator. Reset alarm in alarm menu on PJC 211/212/221/222 or recycle power."...
  • Page 22: Phc-3 Alarm Descriptions

    PHC-3 Alarm Descriptions MC_0117 Fault Code Description Cause Action "-Limit use of thruster 10500.0.10 PHC Oil Level - Level Low Hydraulic oil level is low -Inspect hydraulic oil level -Check system for leaks and refi ll hydraulic oil" "-Sensor not connected or wire break. -Verify sensor type in parameter 0201 10500.0.13 PHC Oil Level - Open Circuit...
  • Page 23: Pdc-301 Alarm Descriptions

    PHC-3 Alarm Descriptions MC_0117 Fault Code Description Cause Action 10516.0.51 PHC DOUT 3 - Current High Digital Output 3 current higher than 4.0A -Check wires and connections for short circuit Digital Output 2 is confi gured as crossover and output is open "-Check for open circuit, power consumption <...
  • Page 24: Notes

    Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................PJC 211 & 212 2917 2020...
  • Page 25 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................PJC 211 & 212 2917 2020...
  • Page 26 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................PJC 211 & 212 2917 2020...
  • Page 27: Note Type, Location And Serial Numbers

    Note Type, Location and Serial Numbers MC_0102 Fill in the type, location and serial numbers of the S-link devices installed. Keeping this as a reference will make the setup procedure easier! S-link device Location Serial number (ie Thruster, AMS, PPC etc) (Bow, Bow-STB, Stern, Stern-STB) PJC 211 &...
  • Page 28 Worldwide sales and service www.side-power.com SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain.
