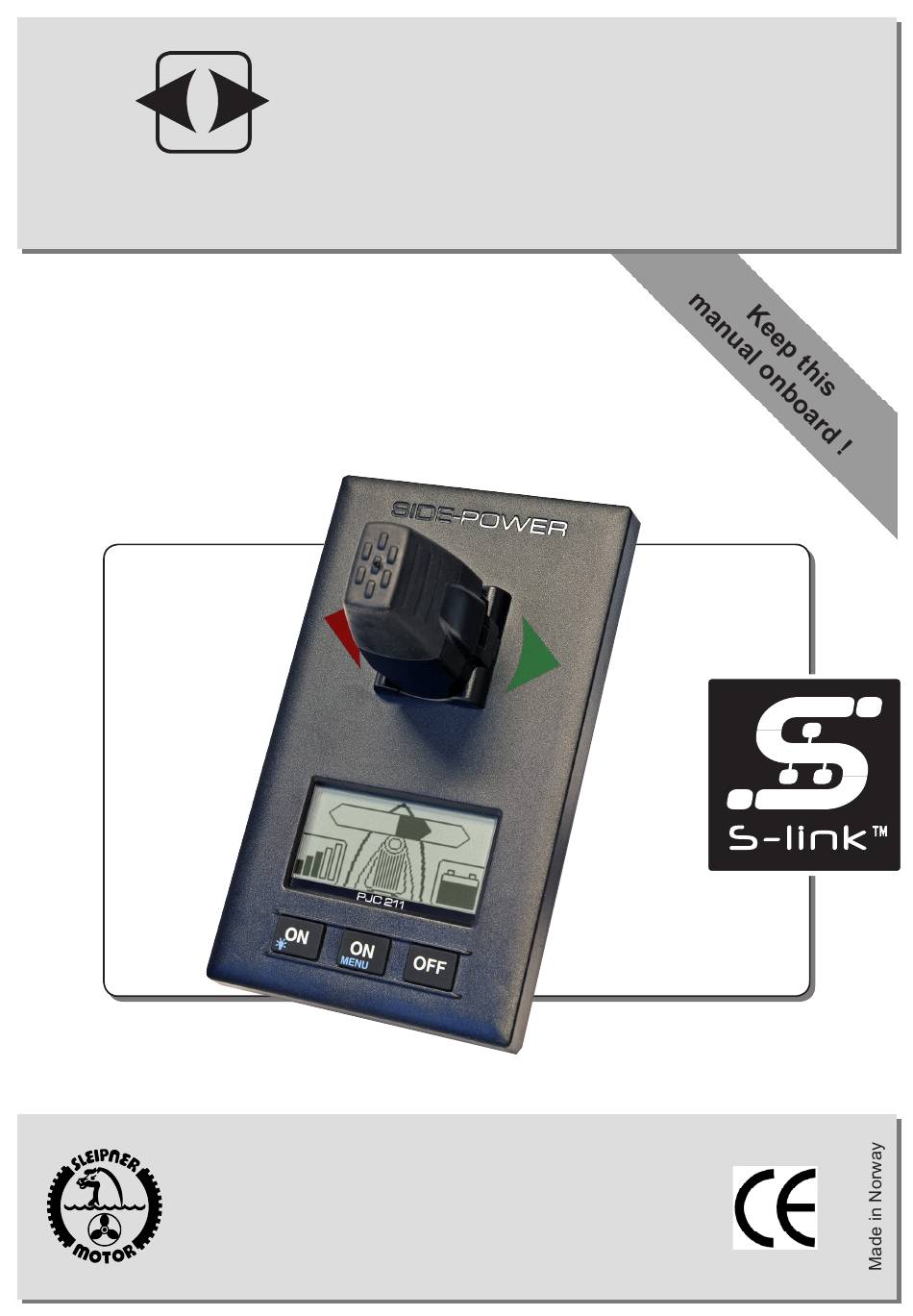

PJC-211 S-link SIDE-POWER Control Panel Thruster Systems Installation and user's manual v 1.1.1 SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 w w w . s i d e - p o w e r . c o m...
PJC-211 ™ Control panel with S-link CAN-bus connection Product features • For proportional thruster control with the new Power Controlled DC-thrusters • Finger tip control speed control with purpose designed joysticks • Back-lit LCD display with instant feedback System status Amount of thrust & direction of thrust Thruster temperature/remaining run time Battery supply voltage to thrusters - Monitoring of Automatic Mainswitch (informs if the fuse has blown or the manual override is activated) • Interactive multi-language menus • CAN-Bus communication with thrusters and accessories • Plug & play cables, waterproof and compact connectors • Diagnostics via panel • Built-in audible alarm “buzzer” • Connector for external “buzzer”/loud audible alarms • Supports Side-Power retractable thrusters with or without Speed Control DO NOT connect any other control equipment to the S-link controlled products except Side-Power original S-link products or via a Side-Power supplied interface product made for interfacing with other controls. Any attempt to directly control or at all connect into...
Remaining run Thrust power Battery sup- time of thruster and direction ply performance based on the based on deliv- electric motors ered voltage to heat at present. thruster. As the As bars empties battery empties, you have less run you have less time left. power and less run time left Indicating amount of thrust set by other control units in the system, i.e additonal PJC-212/211 panels, 8700 Retract panel, input via 8730 S-link external switch interface (remote control, foot switches etc.) If two or more units is set to run the thruster in opposite direction, this information will not be shown. Alarms are ignored for 3 seconds after turning panel SPECIFIC INFORMATION WHEN USED IN A SYSTEM WITH SR-SERIES RETRACTABLE THRUSTERS Symbol shown when the thruster deploys Symbol shown when the thruster retracts FIRST TIME SETUP After installation of a S-link thrusters system, a SCAN SYSTEM procedure to setup control panels, thrusters and additional equipment must be completed before the system can be used. PJC-211 1.1.1 - 2012...
MENU MENU MENU If the problem is that the voltage delivered from the batteries are too low for the thruster to be allowed to run, this is shown directly on the display by the battery that is not delivering being replaced by the alarm sign (see example). If the issue is something else, the alarm signal will replace the remaining run time indicator for the thruster / system that is causing the alarm. Voltage below 9.3V/17.5V or temperature above 80 (12V/24V system) single beep every 2.4 seconds Voltage below 8.9V/16.3V or temperature above 90 (12V/24V system) two beeps every 2.4 seconds Voltage below 8.5V/15V or temperature above 100 (12V/24V system) red backlight in display and three beeps every 2.4 seconds The last warning signal will also be triggered when operating the thruster with the joysticks, except with no external buzzer output. If one or both of the thrusters enters an alarm state (Voltage below 8 Volts - for both 12 and 24 Volt systems - or temperature above 110 C): continuous beeps. Temperature must drop below 100 before the thruster can be operated again. SPECIFIC ALARMS WHEN USED IN A SYSTEM WITH SR-SERIES RETRACTABLE THRUSTERS Alarm shown when the thruster is obstructed while deploying. The internal buzzer will sound. Buzzer can be muted by pressing the “OFF” button Alarm shown when the thruster is obstructed while retracting. PJC-211 1.1.1 - 2012...
Type 2: Retract SR150000(SR130/170/210) with PPC800, both devices needs to be set to Type 2 WHEN INSTALLING A RETRACT THRUSTER WITH SPEED CONTROL (PPC800), DO NOT TRY TO RUN THE THRUSTER UNTIL YOU HAVE COMPLETED THE ENTIRE SETUP PROCEDURE CORRECTLY! This is to prevent damage to the thruster caused by running the thruster while the retract mechanism is not fully opened. OK: Saves changes and quit editing. Select: Switch between Location, Retract and Retract settings. Cancel: Cancel operation without saving changes. Cancel: Returns to “SETUP” –menu. PJC-211 1.1.1 - 2012...
Page 6
Move: Moves the selected thruster assignment from bow to stern/stern to bow OK: Saves changes and returns to SETUP-menu Any changes made will be relayed to all other installed panels RADIO REMOTE SETUP Adjusts the amount of thrust which the ON/OFF remote control will run at. Use joysticks to adjust applied thrust OK: Saves changes and returns to “SETUP”-menu Cancel: Returns to “SETUP”-menu without saving changes Any changes made will be relayed to 8730 INTERFACE units with Firmware 1.203 or newer INFO The info selection is a service screen. Choose the Info screen if you wish to check your system. When in this screen you will be able to run the thrusters individually with the joysticks or simul- INFO taneously with the “Hold” function. You will be able to see two screens by pressing the “more” button 1st screen : Control panel info: - Firmware and Hardware version - Serial number - S-link voltage 2nd screen: Bow thruster information - Motor temperature - Speed controller (PPC800) temperature - Actual voltage - Thrust percentage it is running at - Current consumption & watt at present. More: Changes to next information page Cancel: Returns to main menu PJC-211 1.1.1 - 2012...
Page 7
DEFAULT SETTINGS Reset all settings to factory default - follow instructions on screen Start: Resets system to default factory settings DEFAULT Cancel: Returns to main menu without changes PANEL SETUP BACKLIGHT LEVEL PANEL Set level of panel backlight in daylight mode, 1-5 NIGHTLIGHT - COLOR Select color of backlight in nightlight mode: GREEN, BLUE, RED, WHITE NIGHTLIGHT - LEVEL Set level of panel backlight in nightlight mode, 1-3 TIMER AUTO OFF Set the time from last use to auto panel shutdown. Set from 5-60 minutes in 5 minute steps or OFF (panel will not turn off automatically) OK: Saves changes and returns to main menu Select: Selecting parameter Cancel: Returns to main menu without saving changes Use joystick to change values up or down. PJC-211 1.1.1 - 2012...
Manual Main switch manually Pull main switch Override overridden Deploy Retract obstructed Turn off all panels. Go for lower obstructed while deploying speed/deeper water and retry. Retract Retract obstructed Turn panel on and manually over- obstructed while retracting ride main switch. Remove obstruc- tion and try again. Power Fail Actuator not getting Check actuator connection or power Actuator any power. to actuator. Pos.Sensor Fail Retract position sensor Check position sensor cables and fail for sensor damage. Not In Running Retract not in running Check dipswitch setting on retract Mode mode control box. PJC-211 1.1.1 - 2012...
Page 9
Sample S-link system PJC-211 1.1.1 - 2012...
Page 10
Connections for optional external buzzer/audible alarm External alarm/buzzer connection (S-link) Supply +12V / 24V DC Internal fuse/relay External alarm buzzer 12V / 24V DC - max 0,5A PJC-211 1.1.1 - 2012...
