Page 1: Control Panel
PJC-222 S-link SIDE-POWER Control Panel Thruster Systems Installation and user's manual v 1.0.6 SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 w w w . s i d e - p o w e r . c o m... -
Page 2: Product Features
PJC-222 ™ Control panel with S-link CAN-bus connection Product features • For proportional thruster control with Side-Power hydraulic thruster systems • Finger tip control speed control with purpose designed joysticks • Hold - function for easy docking, runs thrusters at selected power • Back-lit LCD display with instant feedback System status Amount of thrust & direction of thrust Oil temperature • Interactive multi-language menus • CAN-Bus communication with thrusters and accessories • Plug & play cables, waterproof and compact connectors • Built-in audible alarm “buzzer” • Connector for external “buzzer”/loud audible alarms DO NOT connect any other control equipment to the S-link controlled products except Side-Power original S-link products or via a Side-Power supplied interface product made for interfacing with other controls. Any attempt to directly control or at all connect into the S-link control system without the designated and approved interface, will render all warranties and responsibilities for the complete line of Side-Power products connected void and null. If you are interfacing by agreement with Sleipner and through a designated Side-Power supplied interface, you are still required to also install at least one original Side-Power control panel to enable efficient troubleshooting if necessary. front s_v strek_PJC222.pdf 1 04.11.2010 11:05:34... -
Page 3: Display In Normal Use
When the oil temperature is higher than 75°C the screen will illuminate red, a internal buzzer will sound & and the oil temp symbol will flash. The alarm will FIG. 2 stop when the temperature drops below 65°C. The buzzer can be silenced by pushing the OFF button. The thrusters can be operated when the alarms are active. COMMUNICATION FAILURE (FIG. 2) When the panel looses communication with tank equipment the screen will il- FIG. 3 luminate red and a symbol for communication failure will flash in the centre of the screen. Both internal & external buzzers will sound. The buzzer can be silenced by pushing the OFF button. STOP BUTTON (FIG. 3) Pressing the STOP button will the dump valve operate and the thruster will stop. NB: FOR EMERGENCY USE ONLY FIG. 4 WARNING! HIGH SPEED. STABILIZER NOT ACTIVE! (FIG. 4) (Only for yachts equipped with a Side-Power Stabilizer system) Warning will show when yacht is driven at high speed with stabilizer system inactive. Please refer to the Stabilizer ECU manual for speed settings. PJC-222 1.0.6 - 2012... - Page 4 AC MOTOR ALARMS HYDRAULIC AC MOTOR POWER PACK OVERTEMP: The overtemp symbol will show in the upper right corner of the display when the AC motor temperature is above 120°C and automatically reset when temperature goes below 110°C. HYDRAULIC AC MOTOR POWER PACK TEMP SENSOR: The AC motor temp sensor fail symbol will show in the upper right corner if the system is set up with an hydraulic AC motor power pack and the sensor has an open circuit. STABILIZER ALARM (Only for yachts equipped with a Side-Power Stabilizer system) Alarm will show when an stabilizer alarm occurs. See stabilizer panel for more detailed information. Clear: Clears the alarm in the panel and mutes the buzzer alarm PJC-222 1.0.6 - 2012...
- Page 5 When the SAC reach the warning level, the screen will illuminate red, an buzzer will sound & the SAC temperature will show with a W. See SAC Manual for more details. HIGH TEMPERATURE ALARM When the SAC reach the alarm level, the screen will illuminate red, an buzzer will sound & the SAC temperature will show with a AL. See SAC Manual for more details. TEMPERATURE SENSOR FAIL When there is something wrong with the temperature sensor in the SAC or bad connection - the screen will illuminate red, a buzzer will sound & SENSOR will show. VFD WARNING When there is an warning from the VFD, the screen will illuminate red, an buzzer will sound & VFD symbol with WARNING will show. See SAC Manual for more details. VFD NOT READY When the VFD is not ready, the screen will illuminate red, an buzzer will sound & VFD symbol with NOT READY will show. And the thruster stops. See SAC Manual for more details. VFD FAULT When there is an alarm from the VFD, the screen will illuminate red, an buzzer will sound & VFD symbol with ALARM will show, and the thruster stops. See SAC Manual for more details. PJC-222 1.0.6 - 2012...
-
Page 6: Menu System
When pump 1 is set to auto, the pump is on when any panel is turned on and off when all panels are off. This can be used to control a hydraulic AC motor power pack or electric clutch. PUMP 2 (PTO mounted): Pump 2 could be set to ON or AUTO. When Pump 2 is set to auto and SPS stabilizers are running, the pump will start automatically when the oil pressure drops below 80 Bar and keep running for 15 min. or as long as the thrusters are running. When SPS stabilizers are inactive, Pump 2 will run all the time. The AUTO function is used for reduced energy consumption while SPS Stabilizers are running. NB: only to be used with PHC24 controller with firmware 1.008 or newer! HOLD CALIBRATION Calibrates the HOLD-function to get balanced thrust from the bow and stern thruster. Start: Starts calibration. An instruction explaining the calibration procedure will be shown on the display. In some languages it will be necessary to press “More” to read the complete instructions. Press port or starboard “HOLD”-button for calibration in the desired direction This will make both thrusters run in the selected direction. Adjust amount of bow thrust with bow joystick and stern thrust with the stern joystick until a balanced thrust is achieved PJC-222 1.0.6 - 2012... - Page 7 Type 2 WHEN INSTALLING A RETRACT THRUSTER WITH SPEED CONTROL (PPC800), DO NOT TRY TO RUN THE THRUSTER UNTIL YOU HAVE COMPLETED THE ENTIRE SETUP PROCEDURE CORRECTLY! This is to prevent damage to the thruster caused by run- ning the thruster while the retract mechanism is not fully opened. OK: Saves changes and quit editing. Select: Switch between Location, Retract and Retract set- tings. Cancel: Cancel operation without saving changes. Cancel: Returns to “SETUP” –menu. PJC-222 1.0.6 - 2012...
-
Page 8: Default Settings
Back : Returns to Info menu AC THRUSTER INFO Shows AC thruster temperature and rpm for every AC thrusters installed. Blank square indicates no AC thruster installed in this instance.Thruster can be operated with the joystick. STOP: Emergency stop – Stop thrusters. Back : Returns to Info menu. DEFAULT SETTINGS Reset all settings to factory default - follow instructions on screen Start: Resets system to default factory settings DEFAULT Cancel: Returns to main menu without changes PANEL SETUP BACKLIGHT LEVEL Set level of panel backlight in daylight mode, 1-5 PANEL NIGHTLIGHT - COLOR Select color of backlight in nightlight mode: GREEN, BLUE, RED, WHITE NIGHTLIGHT - LEVEL Set level of panel backlight in nightlight mode, 1-3 TIMER AUTO OFF Set the time from last use to auto panel shutdown. Set from 5-60 minutes in 5 minute steps or OFF (panel will not turn off automatically) OK: Saves changes and returns to main menu Select: Selecting parameter Cancel: Returns to main menu without saving changes Use stern joystick to change value up or down PJC-222 1.0.6 - 2012... - Page 9 S-link System Overview, Hydraulic PJC-222 1.0.6 - 2012...
- Page 10 S-link System Overview, AC PJC-222 1.0.6 - 2012...
-
Page 11: Panel Dimensions
Connections for optional external buzzer/audible alarm External alarm/buzzer connection (S-link) Supply +12V / 24V DC Internal fuse/relay External alarm buzzer 12V / 24V DC - max 0,5A PJC-222 1.0.6 - 2012... -
Page 12: Service Centres
Fax: +385 51 704 600 Fax: +44 1364 649 399 side-power@imtra.com acyachting@gmail.com andy@sleipner.co.uk Sleipner Motor AS • P. O. Box 519, N-1612 Fredrikstad • Norway Tel: +47 69 30 00 60 • Fax: +47 69 30 00 70 • sidepower@sleipner.no • www.side-power.com...
Need help?
Do you have a question about the PJC-222 and is the answer not in the manual?
Questions and answers

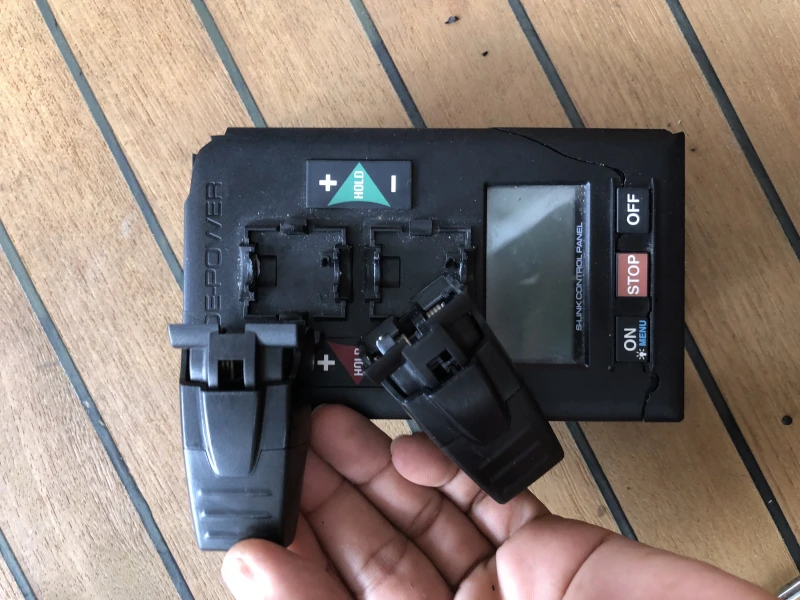

I need the case, can I buy just the case for side-power 222.
