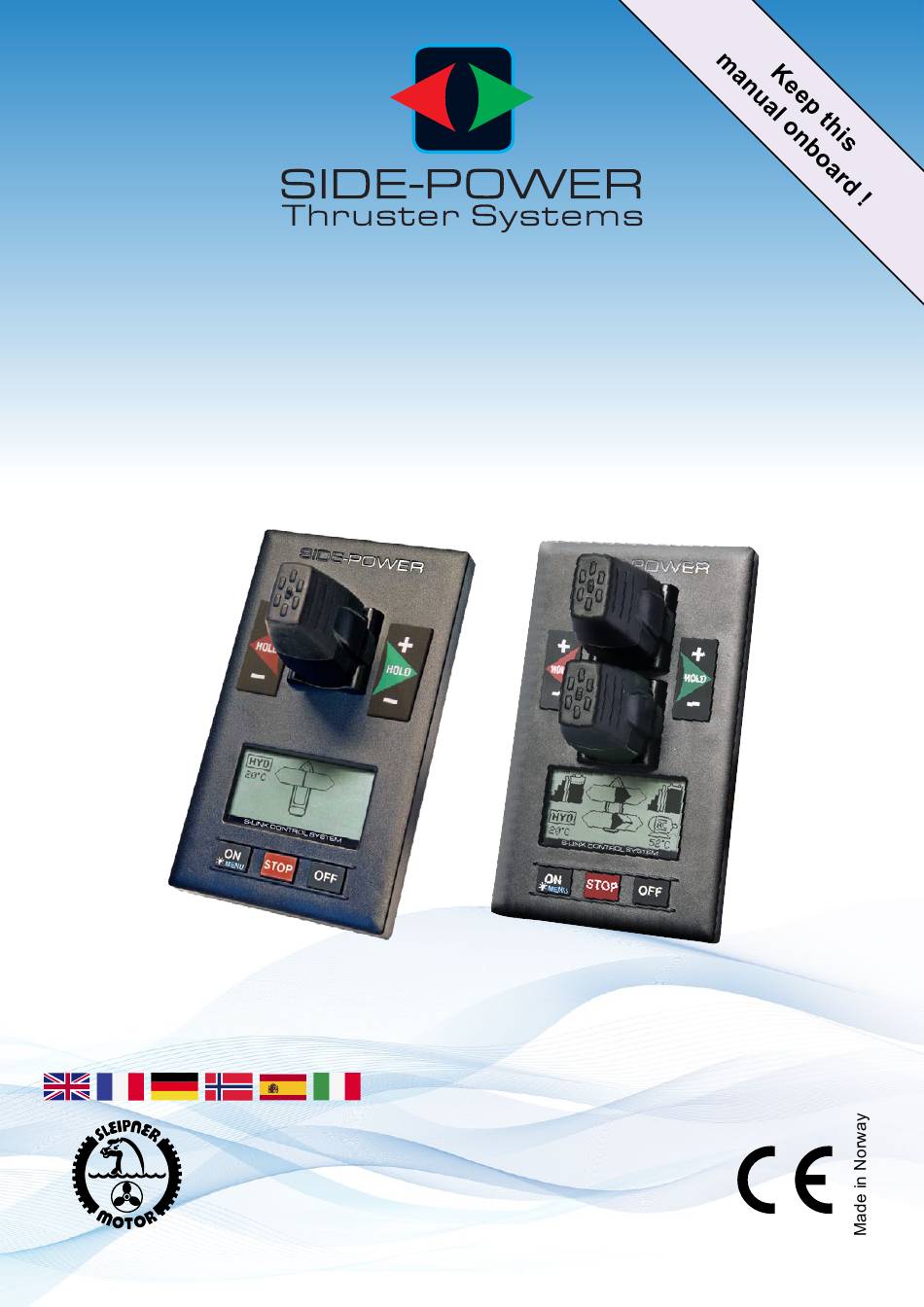

- Page 1 Control Panels PJC 221 & PJC 222 To download your language go to www.side-power.com SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Document id: 3059 www.side-power.com Revision: Date: 2019 © Sleipner Motor AS 2019...
-
Page 2: Table Of Contents
P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway Declare that this product with accompanying standard control systems complies with the essential health and safety requirements according to: DIRECTIVE 2013/53/EU DIRECTIVE 2014/30/EU DIRECTIVE 2014/35/EU PJC 221 & 222 3059 2019... -
Page 3: Considerations And Precautions
S-link control system without the designated and approved interface will render all warranties and responsibilities for the complete line of Side-Power products connected void and null. If you are interfacing by agreement with Sleipner and through a designated Side-Power supplied interface, you are still required to also install at least one original Side-Power control panel to enable effi... -
Page 4: Panel Layout & Functions
STOP or go back in menu system Press to change between day and Emergency night light. Press and hold for 3 stop button seconds to enter menu system PJC 221 & 222 3059 2019... -
Page 5: Technical Specifications & Measurements
Humidity max 95% RH EMC tested Acc. to EN 60533 Weight 215 gr. This illustration is for measurements use only. Use external template when mounting. PJC 221 & 222 3059 2019... -
Page 6: Connections
Connections MC_0104 Connections for optional external buzzer/audible alarm. External alarm/buzzer connection (S-link) Supply +12V / 24V DC Internal fuse/relay External alarm buzzer 12V / 24V DC - max 0,5A PJC 221 & 222 3059 2019... -
Page 7: Setup Procedure
The list of devices found can fi ll more than one screeen. A scroll bar indicates the position of the selected item. (NB: Re-entering the SYSTEM DEVICES menu within 15 minutes does not require re-entering PIN code.) PJC 221 & 222 3059... -
Page 8: Control Panel Setup Buttons
SETUP NOTICE regarding following Location modes: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display and thruster(s) at the right side of the display. -
Page 9: Hydraulic System - Phc 3 Setup
All this parameters are available and can be changed on the PHC-3 controllers display. Bow/Stern Direction: Values: Normal (default)/Inverted Switches between Normal and Inverted running direction for the thruster. Direction need to be inverted if incorrect prop rotation. PJC 221 & 222 3059 2019... -
Page 10: Ac System - Pdc 101 Setup
BOW and STERN is port thruster, BOW-STB and STERN-STB is starboard thruster. (NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display and thruster(s) at the right side of the display.) -
Page 11: Ac System - Pdc 301 Setup
BOW-STB or STERN-STB for starboard thruster. (NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display and thruster(s) at the right side of the display.) -
Page 12: Dc System - Automatic Main Switch Setup
(i.e a catamaran), use BOW or STERN for port thruster, BOW-STB or STERN-STB for starboard thruster. (NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display and thruster(s) at the right side of the display.) -
Page 13: Dc System - Rcrs 1 & Rcrs 2 Setup
DC System - ESI 1 & GW 1 Setup MC_0097 12.0 ESI-1 (External Single Interface) GW-1 (Gateway) This devices will only show fi rmware version and serial number at the button. PJC 221 & 222 3059 2019... -
Page 14: Hold Calibration
0° when fully deployd, and about 90° when retracted.Put SR150000 in service mode and operate the controller manually in an out to read the two end position angels for service and installation. PJC 221 & 222 3059 2019... -
Page 15: Information - Pdc101 & Pdc201
(NB: When S-link devices are hot plugged or disconnected to the bus or powered (when AMS is engaged and powering PPC and retract), it is not unnormal to see some values been incremented. But they will quickly decrement to 0 again. This will not cause any communication issues.) PJC 221 & 222 3059 2019... -
Page 16: Menu System - Panel Setup
PANEL FACING Values: FORWARD (Default), AFT FORWARD: Is when panel is facing forward AFT: Is when panel is facing aft. Display view will rotate 180 degree and joysticks thruster function will also rotate 180 degree. PJC 221 & 222 3059 2019... -
Page 17: Alarm System
WARNING! HIGH SPEED. STABILIZER NOT ACTIVE! (Only for yachts equipped with a Side-Power Stabilizer system) Warning will show when yacht is driven at high speed with stabilizer system inactive. Please refer to the Stabilizer ECU manual for speed settings. -
Page 18: Proportional Thruster Display
Hydraulic Stern Thruster PJC222: PJC212: PJC222: Dual Hydraulic Bow thrusters Dual DC Electric Bow thrusters Dual AC Electric Bow thrusters Dual Hydraulic Stern thrusters Dual DC Electric Stern thrusters Dual AC Electric Stern thrusters PJC 221 & 222 3059 2019... -
Page 19: Proportional Thruster Display Symbols
PJC panels, 8700 Retract panel, input via 8730 S-link external switch interface, S-link remote control etc. If two or more units are set to run the thruster in opposite direction, this information will not be shown. PJC 221 & 222 3059 2019... -
Page 20: Hold Function
Return to Select highlighted Edit highlighted Cancel editing This symbol menu text / Save edited previous menu. parameter. without saving. indicates that the (stern) parameter. joystick is used to move between menu items / parameters. PJC 221 & 222 3059 2019... -
Page 21: Menu System
All system devices will be erased from memory. (Setup procedure must be followed to reconfi gure the system) STABILIZER (Shown only for yachts equipped with a Side-Power Stabilizer system) Press the button below to edit the selected parameter. ON/OFF will start to blink, use joystick to alter value. -
Page 22: Alarm Descriptions
Turn panel on and manually override Motion IN Fault main switch. Remove obstruction and try again. 1. PPC520, PPC820, PPC800, PPC840 2. Buzzer is only activated when any device is sending thrust on the S-link bus. PJC 221 & 222 3059 2019... -
Page 23: Alarm Descriptions
-Check if not PPC or SR150000/ SR61242 is wrongly setup as SRP or SRVP/SRLP. 1. PPC520, PPC820, PPC800, PPC840 2. Buzzer is only activated when any device is sending thrust on the S-link bus. PJC 221 & 222 3059 2019... -
Page 24: Phc-3 Alarm Descriptions
PHC DOUT 3 - Open Circuit circuit -Output confi gured wrong, parameter 0503 10516.0.51 PHC DOUT 3 - Current High Digital Output 3 current higher than 4.0A -Check wires and connections for short circuit PJC 221 & 222 3059 2019... -
Page 25: Pdc-301 Alarm Descriptions
Lost Power Management signal from VFD, VFD not avilable 36101.1.204 VFD PMS Instance 1 SIGNAL LOST -Check VFD for more information. anymore. 36103.1.0 VFD IN LOCAL Instance 1 - VFD in Local or Hand Mode -Change mode in VFD panel. PJC 221 & 222 3059 2019... -
Page 26: Notes
MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................PJC 221 & 222 3059 2019... -
Page 27: Note Type, Location And Serial Numbers
Note Type, Location and Serial Numbers MC_0102 Fill in the type, location and serial numbers of the S-link devices installed. Keeping this as a reference will make the setup procedure easier! S-link device Location Serial number (ie Thruster, AMS, PPC etc) (Bow, Bow-STB, Stern, Stern-STB) -
Page 28: Sleipner Motor As
