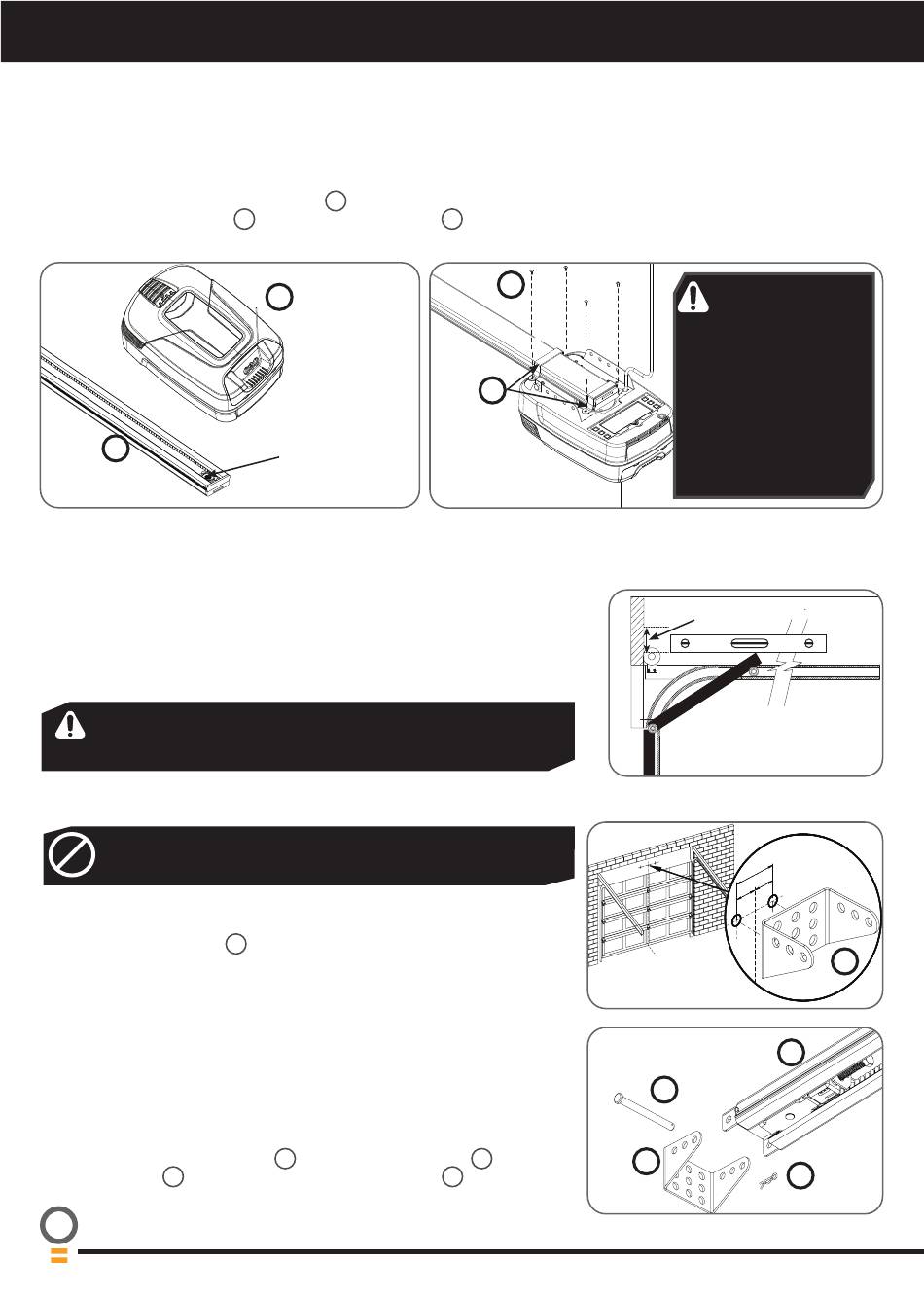

6. Fit the Opener

6.1 Secure C-Rail to Opener:
a. Remove the Opener from the box.
b. Locate and insert the shaft of drive unit
c. Fix the two track brackets
d. Place drive unit back in packing box for protection.
16

7. Bracket Position

7.1 Wall Bracket Position:

a. Determine the centre of the door and mark this point with a line on the wall
above.
b. Raise the door and find the highest point of travel of the first (top) door panel.
WARNING! The Opener must be securely fastened to structural
supports, otherwise opener failure may ensue causing serious
personal injury and / or property damage.
c. Using step ladder and a level, transfer this height to the wall above the door
and mark a line 60mm above it, across the centre line.
DO NOT DO IT YOURSELF: If sufficient structural support can not
DIY
be found, contact a door professional for installation.

7.2 Mounting The Wall Bracket:

a. Draw two lines extending 21.5mm from each side of the centre point.
b. Centre the wall bracket
centres for at least two holes and ensure it is into a solid mounting point.
c. Drill holes in the wall with an appropriate bit.
d. Secure to the wall using:
i. IF CONCRETE OR BRICK:
8mm (5/6") loxins/dynabolts.
ii. IF TIMBER:
wood screw #20 or similar (min. 50mm).

7.3 Attach The Rail To The Wall Bracket

a. Leave the drive unit in its packing box on the floor for protection and lift the
other end of the C-Rail.
b. Attach the C-Rail assembly
90mm long pin and secure with the supplied pin snap
11
into the C-Rail's sprocket.
1
with four (4) M4 x 8 screws
15
1
Locate shaft into
the sprocket
over the intersection of these two lines. Mark
6
to the wall bracket
16
supplied in accessory pack.
14
14
15
with the
6
.
9
WARNING!
DO NOT use tek screws
to affix rail. Only use
the screws provided,
and fix these into the
threaded holes in the
chassis.
Drilling additional
holes through chassis
could damage internal
components
60mm
16
11
6
9
Level
6
