3.4.2.4

Connecting the Batteries

6. Pass the red terminal lead from the charger through the cable hole down to the upper battery tray,
and then connect it to the right-hand positive battery terminal at the front of the rack; see Figure 15.
7. Pass the black terminal lead from the charger through the cable hole down to the upper battery tray,
and then connect it to the left-hand negative battery terminal at the front of the rack; see Figure 15.
8. Fit a protective cap (supplied) to each of the battery terminals.

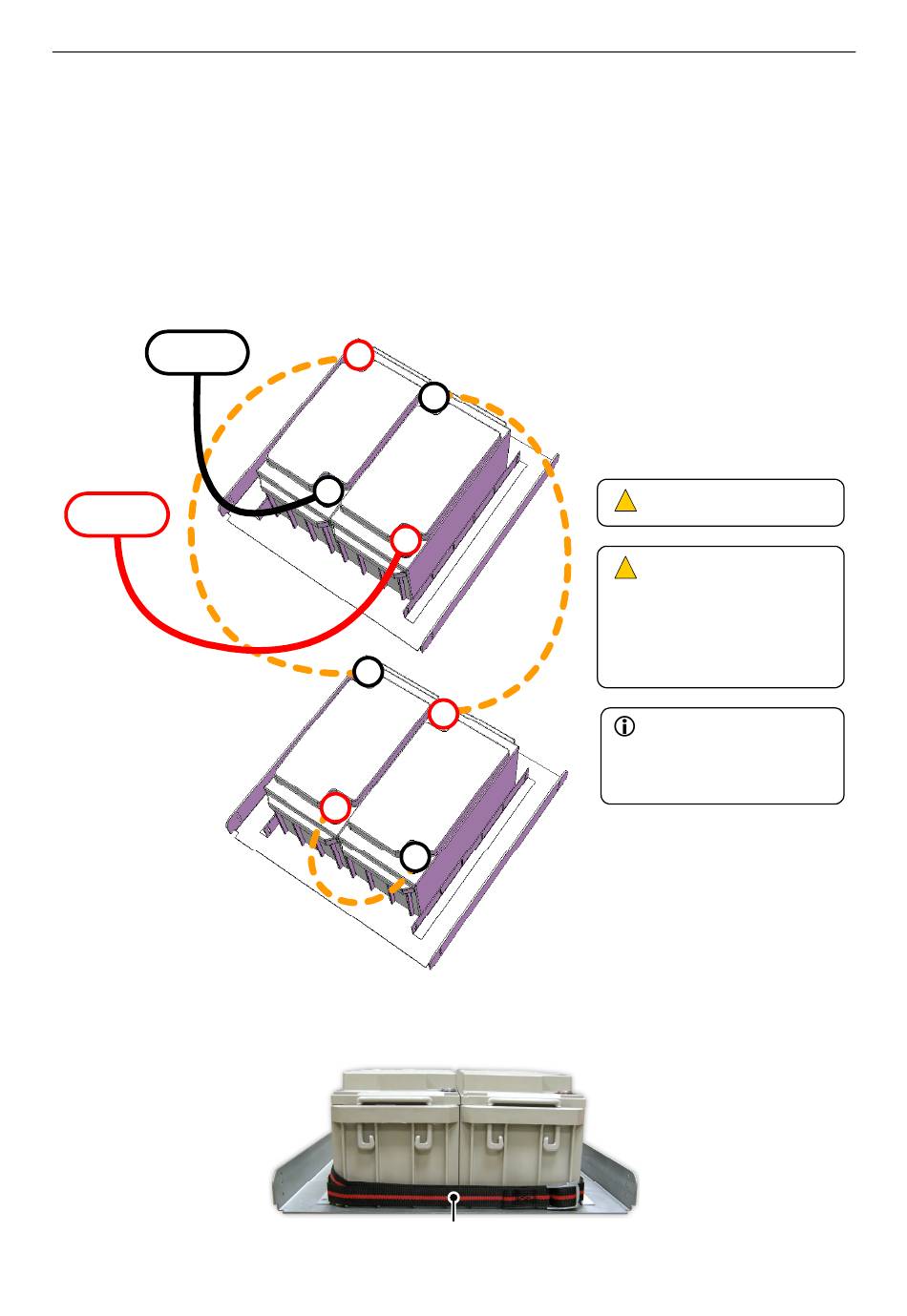

Figure 15 BPC130 positive terminal lead connection
0V (BLACK)
+24V (RED)
9. Secure the batteries in position using the straps fitted to each battery tray; see Figure 16.
Figure 16 Securing the batteries (front of rack)
BPC130 / BDIST / MDIST – Product Manual
+
6V
-
+
UPPER TRAY
FRONT OF RACK
-
6V
+
LOWER TRAY
FRONT OF RACK
U-0456-0145.doc – Issue: 04 complete, approved
-
6V
+
6V
-
FRONT OF RACK
STRAP
Page 19 of 40
Always use insulated tools!
!
!
Fit protective cap to battery
!
!
terminals!
(Depending on the model
supplied, the battery terminal
protective caps must be fitted
to the lead before its
connection to the battery
terminal.)
Note that a small spark is
usually generated when the
negative terminal lead (black)
is connected as the charger
circuitry is energized.
