Connecting The Batteries; Fitting The Front Panel - ASL INTERCOM BPC130 Series Product Manual

3.4.1.4

Connecting the Batteries

17. Pass the red terminal lead from the charger through the cable hole down to the battery tray, and
then connect it to the right-hand battery positive terminal at the rear of the rack; see Figure 11.
18. Pass the black terminal lead from the charger through the cable hole down to the battery tray, and
then connect it to the left-hand battery negative terminal at the front of the rack; see Figure 11.

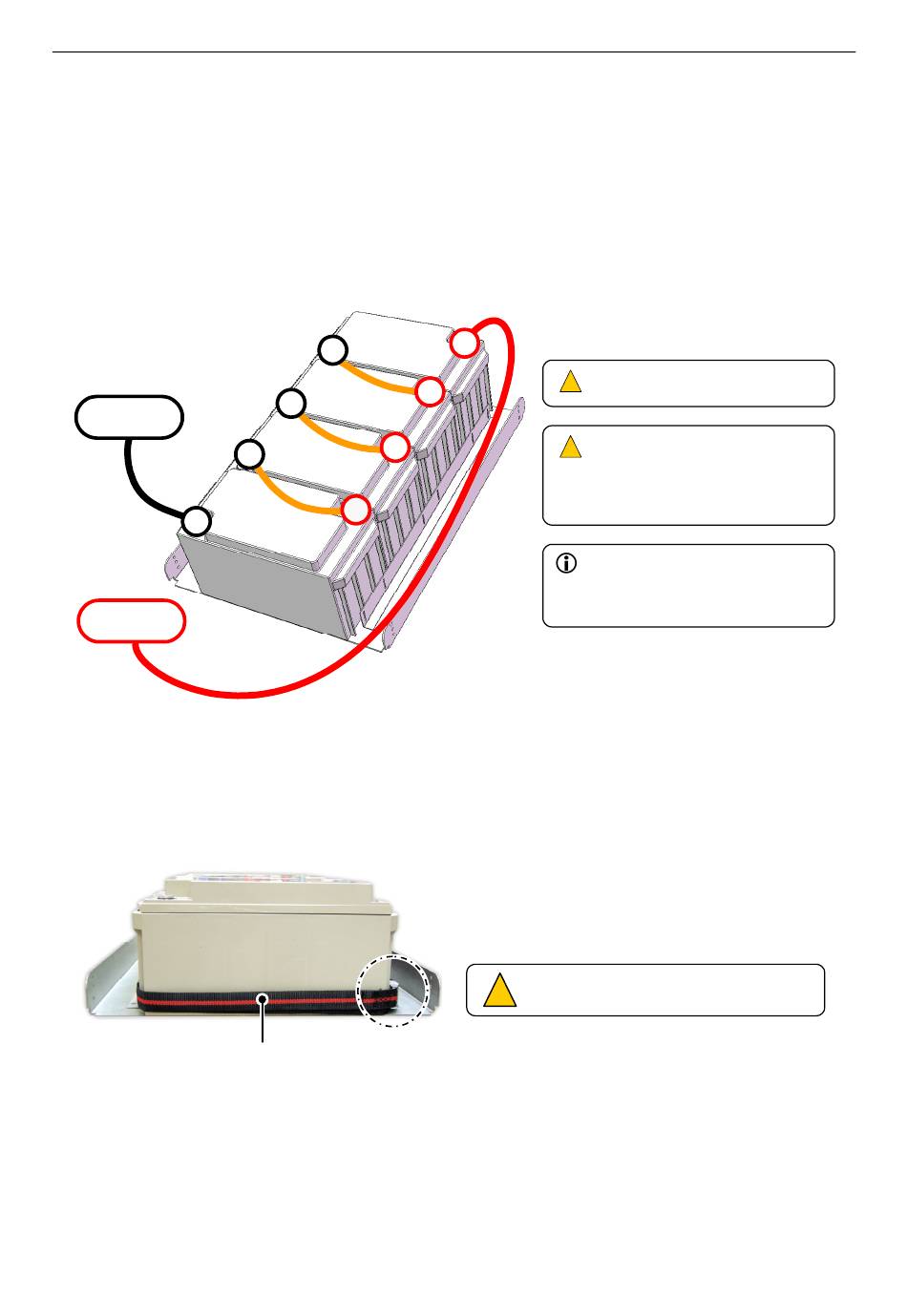

Figure 11 BPC130 terminal lead connection
0V (BLACK)
-
+24V (RED)
FRONT OF RACK
19. Fit a protective cap (supplied) to each of the battery terminals.
20. Secure the batteries in position using the strap(s) fitted to the battery tray see Figure 12.
Figure 12 Securing the batteries (front of rack)
FRONT OF RACK
3.4.1.5

Fitting the Front Panel

21. After batteries have been installed and commissioned, fit all front panels using M6 cage nuts, screws
and nylon washers.
22. Fit the supplied caution label to the appropriate front panel.
BPC130 / BDIST / MDIST – Product Manual
-
-
+
-
+
6V
6V
STRAP
U-0456-0145.doc – Issue: 04 complete, approved
+
+
! !
6V
6V
! !
Note that a small spark is usually
generated when the negative terminal
lead (black) is connected as the
charger circuitry is energized.
Buckle must be positioned on the right or left
!
!
hand-side of the batteries.
Page 15 of 40
Always use insulated tools!
Fit protective cap to battery terminals!
(Depending on the model supplied, the
battery terminal protective caps must
be fitted to the lead before its
connection to the battery terminal.)
