3.4.1.4

Connecting the Batteries

17. Pass the red terminal lead from the charger through the cable hole down to the battery tray, and
then connect it to the left-hand positive battery terminal at the front of the rack; see Figure 11.
18. Pass the black terminal led from the charger through the cable hole down to the battery tray, and
then connect it to the right-hand negative battery terminal at the front of the rack; see Figure 11.

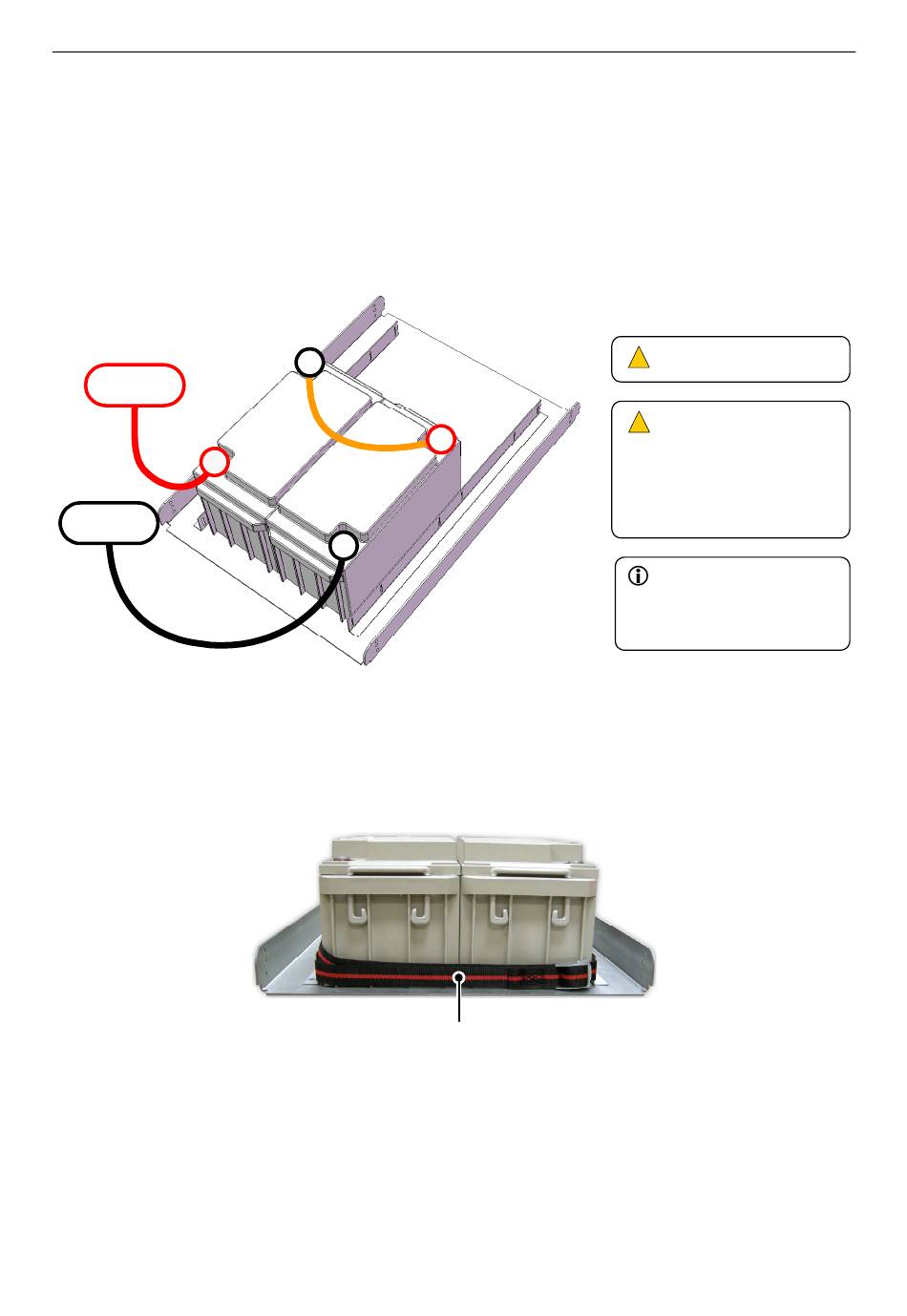

Figure 11 BPC65 terminal lead connection
+24V (RED)
+
0V (BLACK)
FRONT OF RACK
(Battery tray for rack with 800 mm depth as example)
19. Fit a protective cap (supplied) to each of the battery terminals.
20. Secure the batteries in position using the strap(s) fitted to the battery tray; see Figure 12.
Figure 12 Securing the batteries (front of rack)
3.4.1.5

Fitting the Front Panel

21. After batteries have been installed and commissioned, fit all front panels using M6 cage nuts, screws
and nylon washers.
22. Fit the supplied caution label to the appropriate front panel.
BPC65 / BDIST / MDIST – Product Manual
-
12V
+
12V
-
FRONT OF RACK
U-0456-0143.doc – Issue: 03 complete, approved
Page 13 of 32
STRAP
Always use insulated tools!
! !
Fit protective cap to battery
! !
terminals!
(Depending on the model
supplied, the battery terminal
protective caps must be fitted
to the lead before its
connection to the battery
terminal.)
Note that a small spark is
usually generated when the
negative terminal lead (black)
is connected as the charger
circuitry is energized.
