UTEPO UTP7310S-PSD240-W Quick Installation Manual

Industrial 8-Port Gigabit PoE+ 2-Port 1G/2.5G SFP L2 Managed
Ethernet Switch

Packing List

Please check the following items after unpacking, if any missing, please contact your local dealer.
Items
Switch
Mounting Accessory
Quick Installation Guide

Product Overview

The product is Industrial 8-Port Gigabit PoE+ 2-Port 1G/2.5G SFP L2 Managed Ethernet Switch.
The switch provides 8*10/100/1000Mbps Ethernet RJ-45 ports, 2*1G/2.5Gbps SFP uplink ports. All
downlink RJ-45 ports support Power-over-Ethernet (PoE), which can deliver up to 45W power per port. It
can be set by software to deliver up to 90W power for port 1, disabled PoE function for port 2 at the same
time, and deliver up to 45W power for ports 3 to 8 each. It meets IEEE 802.3af/at/bt standard.
The switch supports PoE watchdog features, which can detect and restart the camera automatically if it
stops working. It supports the Q-PoE (Quick PoE) technology, which enables PoE power supply
immediately upon switch startup without waiting for switch system software control. It supports the P-PoE
(Perpetual PoE) technology, which enables PoE power supply without interruption when switch is restarting
and restores the network quickly.
The switch has extensive L2 management functions, such as 802.1Q VLAN, 802.1p QoS, SNMP, Fast-
Ring, and PoE control. It can be easily managed via a WEB GUI (http/https), CLI (telnet/ssh/console) or
SNMP. The switch supports 12 to 57V DC wide voltage inputs and is designed for high availability
applications. It can be widely used in video security monitoring systems, network projects, etc.

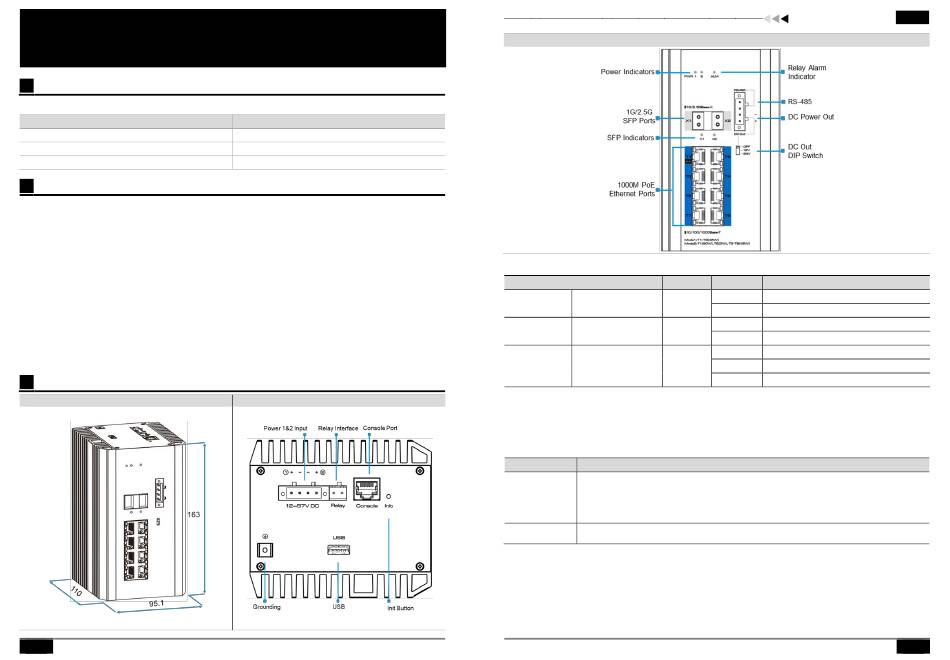

Appearance and Dimensions

Dimensions (mm)
1
Quick Installation Guide
Quantity
1 pc
1 set
1 pc
Side Panel
Front Panel
Indicator
Color
Indicator
PWR1,2 Power indicator Red
ALM Alarm indicator Red
X1,X2 SFP port indicator
Green
DC Out DIP Switch
The DC Out supports 3 working modes through DIP switch: OFF/12V/24V.

Factory Settings

The switch starts with its factory settings:
Item Specifications
Baud rate: 115200 bit/s
Flow control: None
Console Port Parity: None
Stop bits: 1
Data bits: 8
Default IP address/subnet mask: 192.168.1.200/255.255.255.0
Web Manager
User/Password: admin/admin
Init Button
The init button has two operating modes:
By short pressing the button, the switch will be reset and the configuration is as previous setting saved.
By pressing the button over 5s, the switch will be restored to the original factory default setting.
Quick Installation Guide
Status Description
Solid On Power supply is on.
Off Power supply is off.
Solid On The device alarms.
Off The device is working normally.
Solid On SFP port is linking normally.
Blink SFP port is transmitting or receiving data.
Off SFP port is linking down.
