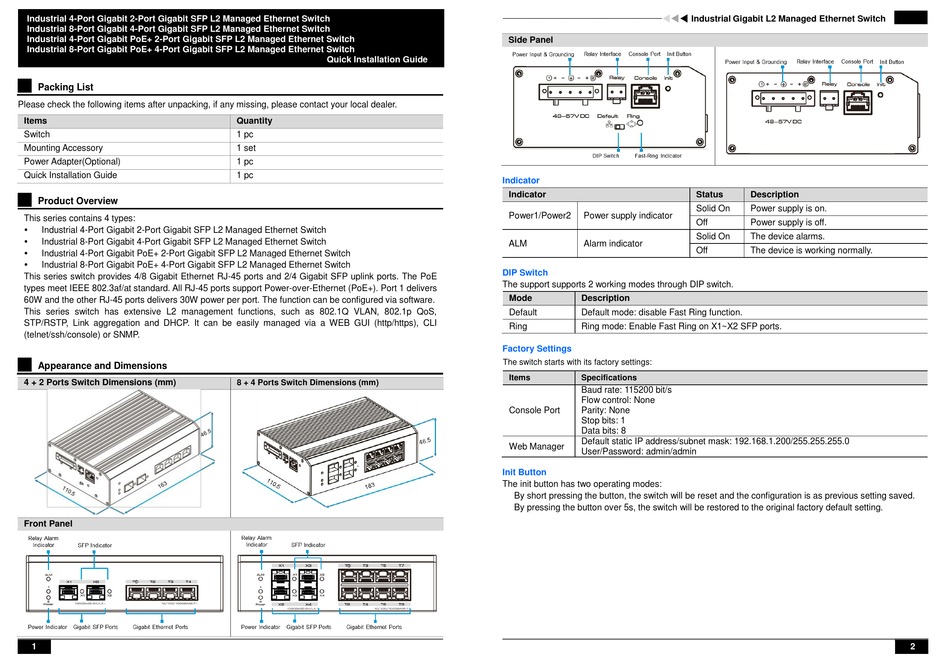

UTEPO UTP7304GE Quick Installation Manual

Industrial 4-Port Gigabit 2-Port Gigabit SFP L2 Managed Ethernet Switch
Industrial 8-Port Gigabit 4-Port Gigabit SFP L2 Managed Ethernet Switch
Industrial 4-Port Gigabit PoE+ 2-Port Gigabit SFP L2 Managed Ethernet Switch
Industrial 8-Port Gigabit PoE+ 4-Port Gigabit SFP L2 Managed Ethernet Switch
Packing List
Please check the following items after unpacking, if any missing, please contact your local dealer.
Items
Switch
Mounting Accessory
Power Adapter(Optional)
Quick Installation Guide
Product Overview
This series contains 4 types:

Industrial 4-Port Gigabit 2-Port Gigabit SFP L2 Managed Ethernet Switch

Industrial 8-Port Gigabit 4-Port Gigabit SFP L2 Managed Ethernet Switch

Industrial 4-Port Gigabit PoE+ 2-Port Gigabit SFP L2 Managed Ethernet Switch

Industrial 8-Port Gigabit PoE+ 4-Port Gigabit SFP L2 Managed Ethernet Switch
This series switch provides 4/8 Gigabit Ethernet RJ-45 ports and 2/4 Gigabit SFP uplink ports. The PoE
types meet IEEE 802.3af/at standard. All RJ-45 ports support Power-over-Ethernet (PoE+). Port 1 delivers
60W and the other RJ-45 ports delivers 30W power per port. The function can be configured via software.
This series switch has extensive L2 management functions, such as 802.1Q VLAN, 802.1p QoS,
STP/RSTP, Link aggregation and DHCP. It can be easily managed via a WEB GUI (http/https), CLI
(telnet/ssh/console) or SNMP.
Appearance and Dimensions
4 + 2 Ports Switch Dimensions (mm)

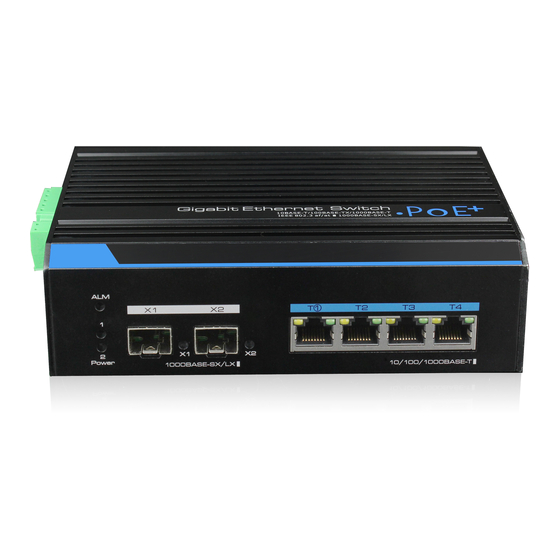

Front Panel
1
Quick Installation Guide
Quantity
1 pc
1 set
1 pc
1 pc
8 + 4 Ports Switch Dimensions (mm)
Side Panel
Indicator
Indicator
Power1/Power2 Power supply indicator
ALM Alarm indicator
DIP Switch
The support supports 2 working modes through DIP switch.
Mode Description
Default Default mode: disable Fast Ring function.
Ring Ring mode: Enable Fast Ring on X1~X2 SFP ports.
Factory Settings
The switch starts with its factory settings:
Items Specifications
Baud rate: 115200 bit/s
Flow control: None
Console Port Parity: None
Stop bits: 1
Data bits: 8
Default static IP address/subnet mask: 192.168.1.200/255.255.255.0
Web Manager
User/Password: admin/admin
Init Button
The init button has two operating modes:
By short pressing the button, the switch will be reset and the configuration is as previous setting saved.
By pressing the button over 5s, the switch will be restored to the original factory default setting.
Industrial Gigabit L2 Managed Ethernet Switch
Status Description
Solid On Power supply is on.
Off Power supply is off.
Solid On The device alarms.
Off The device is working normally.
2
