8 Ports PoE Ethernet Switch
8 ports PoE Ethernet Switch is a surveillance security Ethernet switch which aims at Ethernet
high definition surveillance, Ethernet project security system. The product fully combines the
characteristic of surveillance security, provides fast packet forwarding ability and abundant
backplane bandwidth, which ensures clear image and fluent transmission. Inserted static,
surge protection circuit can improve product stability. The product supports one key CCTV
model, can achieve VLAN, QoS priority after configuration, control the Net storm, protect the
information security, prevent the viral transmission and Ethernet attack, fully satisfy the
Ethernet video surveillance security system and Ethernet project needs.
Application
PoE IP camera
PoE Dome Camera
PoE IP Camera
PoE PTZ camera
Feature
● Major ports: 1 pc 100Mbps up link Ethernet port, 8 pcs 100Mbps down link Ethernet
ports , every port supports MDI/MDIX;
● Special function: One key CCTV model;
● Power input: DC48V~57V;
● Transmission Distance: 0~100m;
● Standard: Meet IEEE802.3, IEEE802.3u, IEEE802.3 af/at standards,
PoE use End-Span, the spare cable can be of other use;
● Protection: Excellent anti-thunder, anti-static and anti-interference ability;
● Appearance: Delicate design and easy installation, configure the anti-theft lock hole,
guard against theft;
●Operation: Plug and Play, No Setting required.
Notice
The transmission distance is related to the connected cable. We suggest standard Cat5e/6
network cable, so the transmission distance can up to 100m!
1

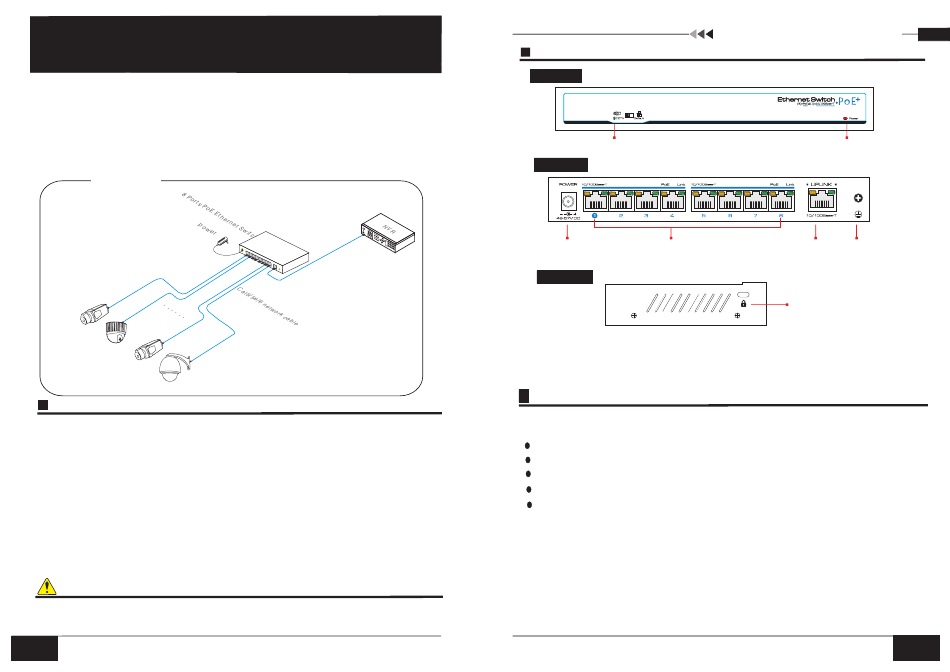

Board Diagram
VerB 1.0
Front board
Back board
Power
input port
Side board
Description:
1) The equipment must connect the ground according to the request.
2) Turn the dial switch for left, the equipment can enter surveillance module after providing
equipment power.
Installation steps
Please check the following items before installation, if it is missing, please contact the
dealer .
8 ports PoE Ethernet Switch
Power adaptor
AC power cable
Accessory
User manual
Please follow below the installation steps
1) Please turn off the signal power and display device power before installation, installation
with power will damage the transmission equipment;
2) Use network cable connect IP camera and 1~8 down link ports of product respectively;
3)Use a network cable connect equipment up link port and NVR or computer;
4) Turn on the power of the equipment;
5) Check if the installation is correct, equipment is in good condition, the connection is
stable, then provide power for system;
6) Ensure the Ethernet equipment with power and work properly.
8 Ports PoE Ethernet Switch
Surveillance module
indicated light
normally on
PoE down link
Ethernet port
Power
indicated light
Ground
Up link
Ethernet port
Kensington lock
1pc
1pc
1pc
1set
set
1
2
