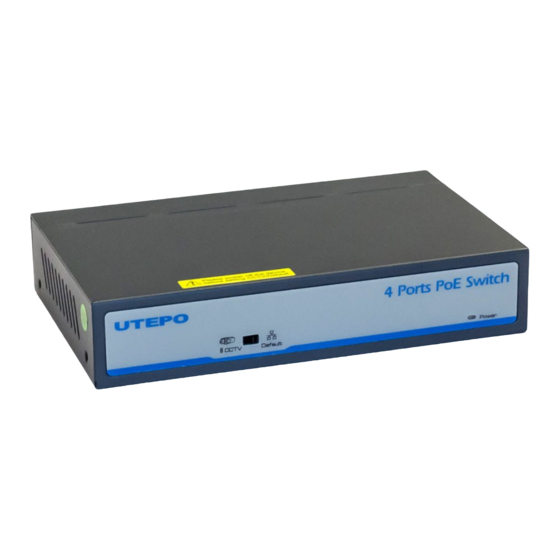

4 Ports PoE Ethernet Switch( one port uplink)
4 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet
high definition surveillance and Ethernet project security system. The product fully combines the
characteristics of security surveillance, provides fast packet forwarding ability and abundant
backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge
protection circuit can improve product stability. The product supports one key CCTV model, can
achieve VLAN, QoS priority after configuration, control the Net storm, protect the information
security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video
security surveillance system and Ethernet project needs.
Application
PoE IP Camera
PoE Dome Camera
PoE IP Camera
PoE PTZ Camera
Feature
4×10/100Base-TX Ethernet ports (PoE ports) and 1×10/100Base-TX up-link port;
Support IEEE802.3af/at standards,Max.30W output of single port;
One-key CCTV mode: 1~4 downlink ports can only communicate with uplink ports,extend
transmission distance up to 250m(10Mbps);
6KV surge protection, 8KV ESD immunity and anti-interference;
Easy & safe installation: wall-mounting, desktop,Kensington security slot;
Plug-and-play.
Notice
The transmission distance is related to the connected cable. We suggest standard Cat5e/6
network cable, so the transmission distance can up to100m!
1
User Manual
VerB 1.0
L C
D
W.od.ua | Код товара: 805-01 | https://bit.ly/3L6T6oz

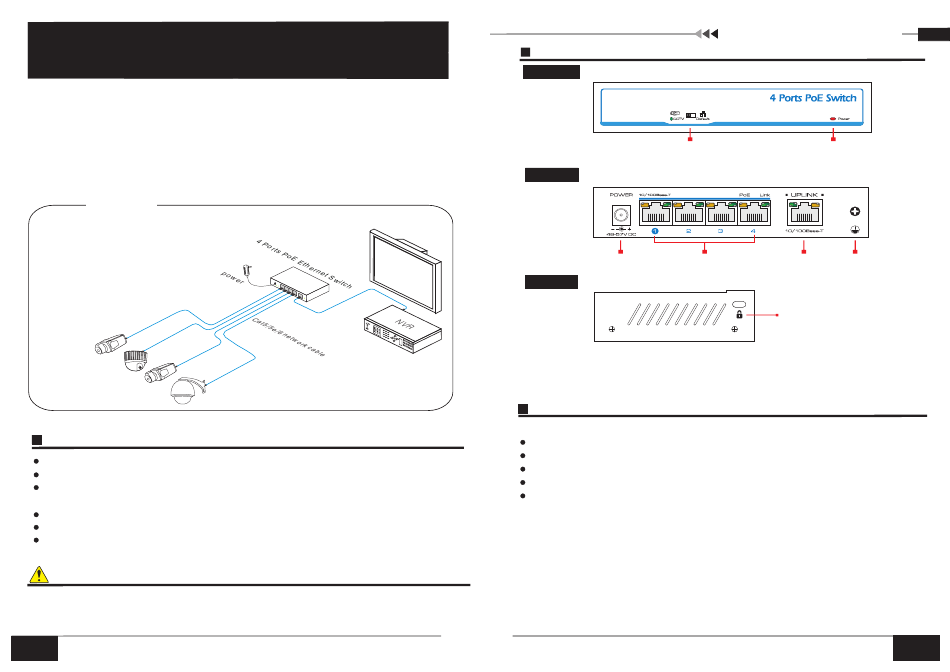

Board Diagram
Front board
CCTV mode
Back board
Power
PoE down link
input port
Ethernet port
Side board
Description:
1)
The equipment must connect the ground according to the request.
2
)
Turn the dial switch for left, the equipment can enter CCTV mode after restart the
equipment power.
Installation steps
Please check the following items before installation, if it is missing, please contact the dealer .
4 ports PoE Ethernet Switch
Power adaptor
AC power cable
Accessory
User manual
Please follow the below installation steps
1) Please turn off the signal power and display device power before installation, installation
with power will damage the transmission equipment;
2) Use network cable connect PoE IP camera and 1~4 down link ports of product respectively;
3) Use a network cable connect equipment up link port and NVR or computer;
4) Turn on the power of the equipment;
5) Check if the installation is correct, equipment is in good condition, the connection is stable,
then provide power for system;
6) Ensure the Ethernet equipment with power and work properly.
4 Ports PoE Ethernet Switch
Power
indicated light
Uplink
Ground
Ethernet port
Kensington Lock
1pc
1pc
1pc
1set
set
1
2
