UTEPO UTP3-GSW04-TP60 User Manual

4 Ports Full Gigabit PoE Switch
User Manual
The 4 Ports Full Gigabit PoE Switch is specially designed for the application of high definition
network security surveillance system. The PoE switch provides 4 Gigabit downlink PoE ports
support 802.3at and dual Gigabit uplink ports. It's widely used in survelliance monitor and
Ethernet network solution.
Application
PoE Camera
PoE Camera
PoE Camera
PoE Camera
Features
Main Ports: 4x downlink gigabit PoE Ethernet ports,2x uplink gigabit Ethernet ports
Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN
function and 1~4 downlink ports only able to communicate with uplink ports;
Power Input:DC48V~57V;
Transmission Distance:0~100m;
Standard:IEEE802.3, IEEE802.3u, IEEE 802.3ab,
End-span;
Protection:Superior lightning protection(6KV), ESD protection and anti-interference ability;
Structure: stable and delicate, easy to install;
Operation:plug and play, no any settings needed.
Notice
The transmission distance depends on the signal source and cable quality;standard Cat5e/6
Ethernet cable is strongly suggested for reaching the maximum transmission distance!
1
VerB 1.0
L C
D
;
IEEE802.3 af, IEEE802.3at, PoE adopts

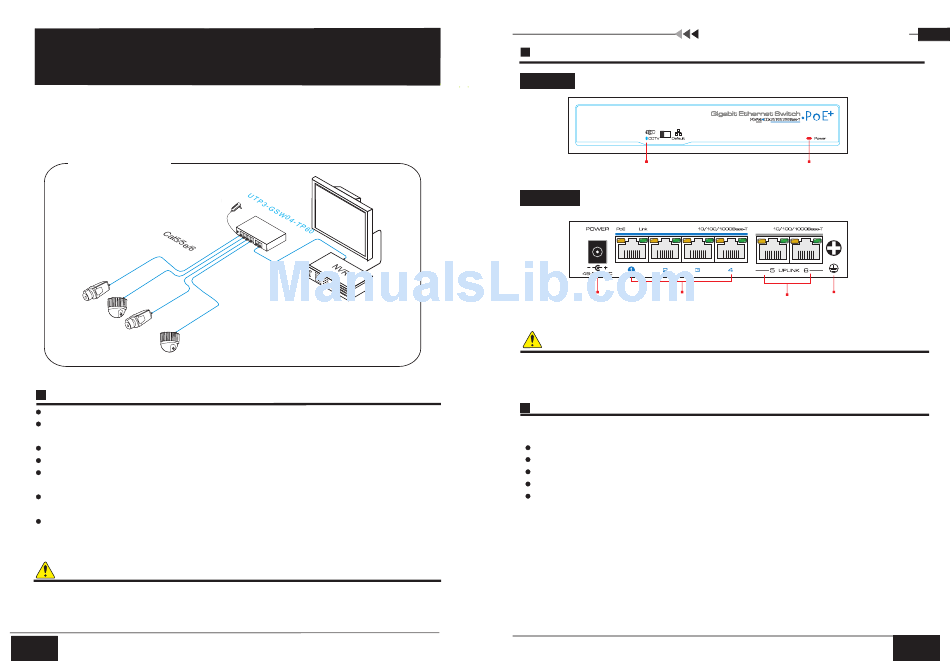

Board Diagram
Front board
LED Solid on:CCTV Mode On
Back Board
背面板
Power Downlink Gigabit
Input Port PoE Ports
Notice
1) Device must be connected with lightning protection grounding;otherwise protection level
will be greatly reduced;please use above No.20 wire to connect the grounding terminal;
2) The device requires rebooting after the Mode Switch has been utilized.

Installation steps

Please check the following items before installation, if it is missing, please contact the
dealer.
Ethernet Switch
Power Adapter
AC Power Cable
Accessory
User Manual
Please follow installation steps as below:
1) Turn off the power of all the related devices before the installation;otherwise the device
would be damaged;
2) Connect PoE IP cameras and 1~4 downlink ports with Ethernet cable;
3) Connect UPLINK port with Storage device, like NVR or PC, with Ethernet cable;
4) Connect power adapter ;
5) Double check the installation and connection of equipments are correct and the
equipments are working properly, then power on system;
6) Make sure the devices are powered and work properly.
4 Ports Full Gigabit PoE Switch
Power LED
Uplink Grounding
Terminal
Gigabit Ports
1pc
1pc
1pc
1pc
1pc
2
