UTEPO UTP6306TS-PSD Quick Installation Manual

UTEPO UTP6306TS-PSD Quick Installation Manual

Industrial 4-port gigabit poe++ 1-port gigabit rj-45 1-port gigabit sfp unmanaged ethernet switch

Advertisement

Quick Links

Industrial 4-Port Gigabit PoE++ 1-Port Gigabit RJ-45 1-Port
Gigabit SFP Unmanaged Ethernet Switch
Packing List
Please check the following items after unpacking, if any missing, please contact your local dealer.
Items
Switch
Mounting Accessory
Quick Installation Guide
Product Overview
The series product is Industrial 4-Port Gigabit PoE++ 1-Port Gigabit RJ-45 1-Port Gigabit SFP Unmanaged
Ethernet Switch.
The switches provide 4*10/100/1000Mbps Ethernet RJ-45 ports, 1*10/100/1000Mbps Ethernet RJ-45
uplink port, 1*1000Mbps SFP uplink port. It meets IEEE 802.3af/at/bt standard. All downlink RJ-45 ports
support Power-over-Ethernet (PoE++), which can deliver up to 90W power per port.
The switches support the Q-PoE (Quick PoE) technology, which enables PoE power supply immediately
upon switch startup without waiting for switch system software control.
The switches support 2 working modes through DIP switch: Default and CCTV. Under CCTV mode, the
transmission distance is extended up to 250m, but the rate is limited to 10Mbps. The wide voltage input
model uses 12 to 57V DC wide voltage input and is designed for high availability applications. It can be
widely used in video security monitoring systems, network projects, etc.

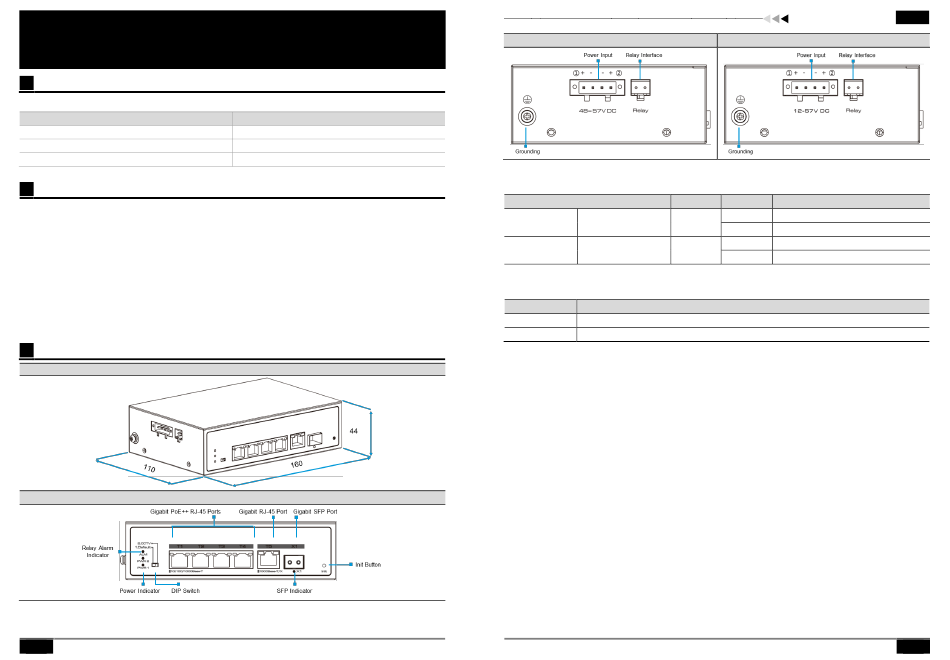

Appearance and Dimensions
Dimensions (mm)

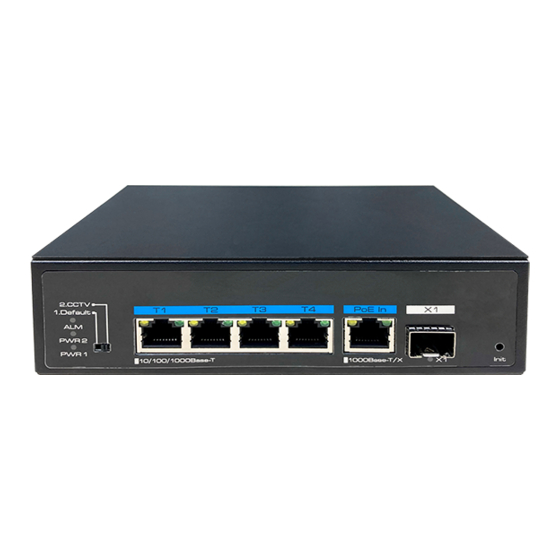

Front Panel
1
Quick Installation Guide
Quantity
1 pc
1 set
1 pc
Non-wide Voltage Input Model Side Panel
Indicator
Color
Indicator
Power Supply
PWR1/PWR2
Green
Indicator
ALM
Alarm Indicator
Red
DIP Switch
The switch supports 2 working modes through DIP switch.
Mode
Description
Default
All ports are free to communicate, transmission distance: 0~100m.
CCTV
The transmission distance is extended up to 250m, but the rate is limited to 10Mbps.
Init Button
By pressing the button over 5s, the switch will be restored to the original factory default setting.
Quick Installation Guide
Wide Voltage Input Model Side Panel
Status
Description
Solid On
Power supply is on.
Off
Power supply is off.
Solid On
The device alarms.
Off
The device is working normally.
2
