UTEPO utp3106-psb Quick Installation Manual

4-Port FE PoE+ 2-Port Fast Ethernet Switch
4-Port FE PoE++ 2-Port Fast Ethernet Switch
8-Port FE PoE++ 2-Port Gigabit Ethernet Switch
Packing List
Please check the following items after unpacking, if any missing, please contact your local dealer.
Items
Switch
Power Adapter
Power Cable
Quick Installation Guide
Product Overview
This series contains the following types:

4-Port FE PoE+ 2-Port Fast Ethernet Switch

4-Port FE PoE++ 2-Port Fast Ethernet Switch

8-Port FE PoE++ 2-Port Fast Ethernet Switch
4-Port FE PoE+/ PoE++ 2-Port Fast Ethernet Switch Ethernet Switch provides 4*10/100Mbps RJ-45
Ethernet ports, 2*10/100Mbps uplink RJ-45 Ethernet ports. 8-Port FE PoE++ 2-Port Gigabit Ethernet Switch
provides 8*10/100Mbps RJ-45 Ethernet ports, 2*10/100/1000Mbps uplink RJ-45 Ethernet ports. All
downlink RJ-45 ports support Power-over-Ethernet (PoE).
4-Port FE PoE+ 2-Port Fast Ethernet Switch can deliver up to 30W power per port.
4-Port FE PoE++ 2-Port Fast Ethernet Switch can deliver up to 90W power for port 1, and deliver up to
45W power for ports 2 to 4 each.
8-Port FE PoE++ 2-Port Gigabit Ethernet Switch can deliver up to 45W power per port. It can be set by DIP
switch to deliver up to 90W power for port 1, disabled PoE function for port 2 at the same time, and deliver
up to 45W power for ports 3 to 8 each.
The switch meets IEEE 802.3af/at/bt standard.
The switch supports 3 working modes through DIP switch: Default, VLAN and CCTV. Under VLAN and
CCTV mode, it supports PoE watchdog features, which can detect and restart the camera automatically if
it stops working. It can be widely used in video security monitoring systems, network projects, etc.

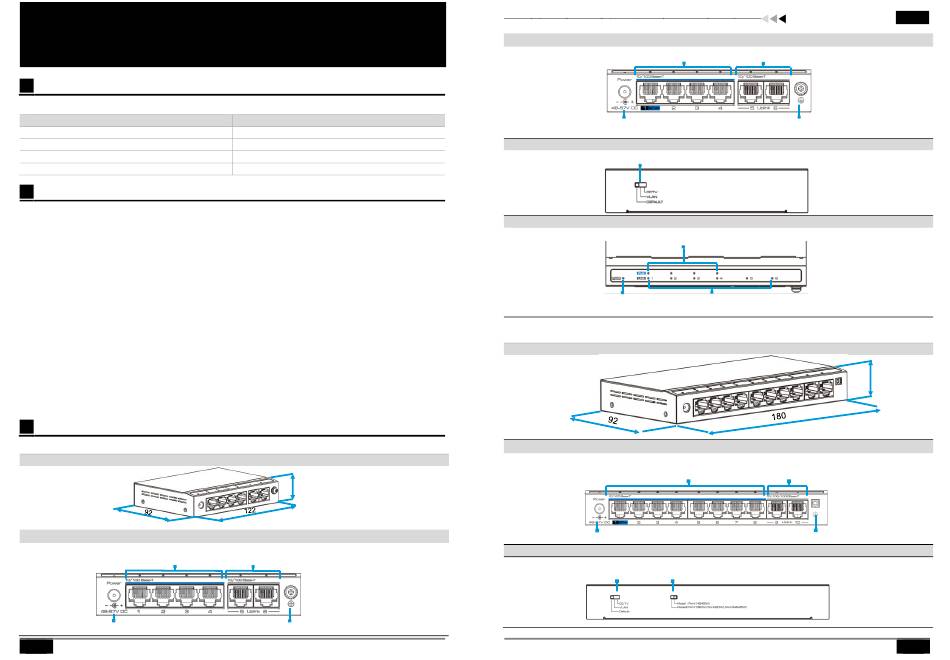

Appearance and Dimensions
4-Port FE PoE+ 2-Port Fast Ethernet Switch, 4-Port FE PoE++ 2-Port Fast Ethernet Switch
Dimensions (mm)

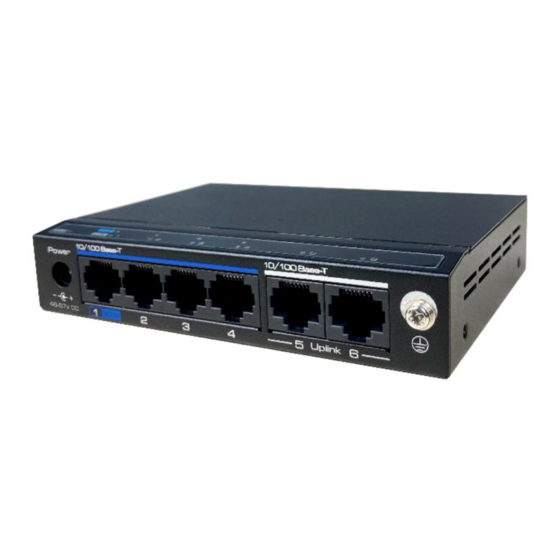

4-Port FE PoE+ 2-Port Fast Ethernet Switch Front Panel
100M PoE Ethernet Ports
Power Input
1
Quick Installation Guide
Quantity
1 pc
1 pc
1 pc
1 pc
25
100M Ethernet Ports
Grounding
4-Port FE PoE++ 2-Port Fast Ethernet Switch Front Panel
100M PoE Ethernet Ports
Power Input
Rear Panel
DIP Switch
Top Panel
PoE Indicators
Power Indicator
Link Indicators
8-Port FE PoE++ 2-Port Gigabit Ethernet Switch
Dimensions (mm)
Front Panel
100M PoE Ethernet Ports
Power Input
Rear Panel
DIP Switch PoE Mode DIP Switch
Quick Installation Guide
100M Ethernet Ports
Grounding
25
1000M Ethernet Ports
Grounding
2
