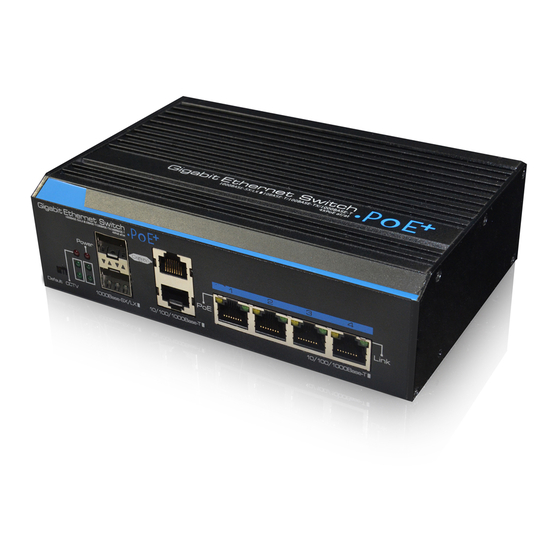

Industrial 4-Port Gigabit 2-Port Gigabit SFP 2-Port Gigabit RJ-45 (1-Port Gigabit Combo) Ethernet Switch
Industrial 4-Port Gigabit PoE+ 2-Port Gigabit SFP 2-Port Gigabit RJ-45 (1-Port Gigabit Combo) Ethernet Switch
Industrial 1-Port Gigabit HPoE 3-Port Gigabit PoE+ 2-Port Gigabit SFP 2-Port Gigabit RJ-45 (1-Port Gigabit
Combo) Ethernet Switch
Packing List
Please check the following items after unpacking, if any missing, please contact your local dealer.
Items
Switch
Power Adapter (optional)
Mounting Accessory
Quick Installation Guide
Product Overview
This series contains these types as follow:
Industrial 4-Port Gigabit 2-Port Gigabit SFP 2-Port Gigabit RJ-45 (1-Port Gigabit Combo) Ethernet
Switch
Industrial 4-Port Gigabit PoE+ 2-Port Gigabit SFP 2-Port Gigabit RJ-45 (1-Port Gigabit Combo)
Ethernet Switch
Industrial 1-Port Gigabit HPoE 3-Port Gigabit PoE+ 2-Port Gigabit SFP 2-Port Gigabit RJ-45 (1-Port
Gigabit Combo) Ethernet Switch
This series switches provide 4*1000M Ethernet RJ-45 downlink ports, 2*1000M Ethernet SFP and 2*1000M
Ethernet RJ-45(1*1000M RJ45/SFP combo port) uplink port. All RJ-45 downlink ports support Power-over-
Ethernet (PoE), Industrial 4-Port Gigabit PoE+ 2-Port Gigabit SFP 2-Port Gigabit RJ-45 (1-Port Gigabit
Combo) Ethernet Switch deliver up to 30W power per port. Industrial 1-Port Gigabit HPoE 3-Port Gigabit
PoE+ 2-Port Gigabit SFP 2-Port Gigabit RJ-45 (1-Port Gigabit Combo) Ethernet Switch port 1 delivers 60W
and the other RJ-45 ports delivers 30W power per port.
It is easy to use, Plug-and-Play, can be widely used in video security monitoring system, network project, etc.
Application
1
Quick Installation Guide
Quantity
1 pc
1 pc
1 set
1 pc
Appearance and Dimensions
Dimensions (mm)
Non PoE Switch Front Panel
Non PoE Switch Side Panel
Indicator
Indicator
Color
Power
Power indicator
Red
Fiber Link
SFP port indicator
Green
Industrial Ethernet Switch
PoE Switch Front Panel
PoE Switch Side Panel
Status
Description
Solid On
Power supply is on.
Off
Power supply is off.
Solid On
The port is linking normally.
Blink
The port is transferring data.
Off
The port is not connected.
2
