UTEPO UTP1-SW2402TS-POE User Manual

24 Ports PoE Switch
User Manual

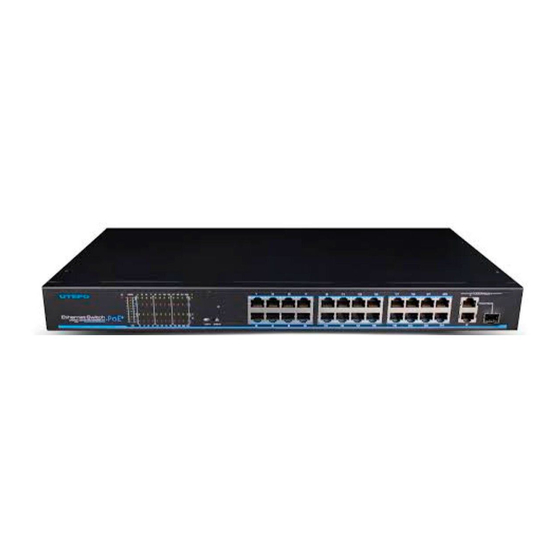

The 24 ports PoE switch is an unmanaged PoE Ethernet switch along with 24 * 100Base-TX
downlink PoE ports and 2 * 1000Base-TX uplink Ethernet ports featuring 30-watt 802.3at
PoE+ as well as 1 additional Gigabit Combo port. The total PoE power budget is up to 270
watts. It supports real-time PoE output LED display.The device can be widely used in video
security monitoring systems, network projects, etc.

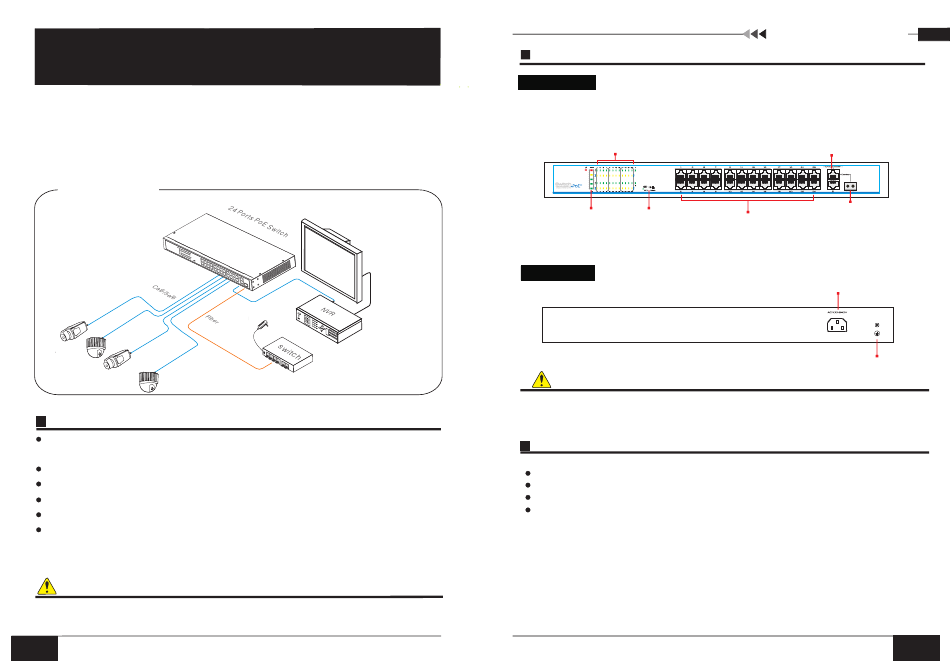

Application

PoE camera
PoE camera
PoE camera
PoE camera

Feature

Provide 24x 100Mbps downlink PoE Ethernet ports, 2x gigabit uplink Ethernet ports and
1x gigabit Fiber port;
Downlink Ethernet ports support PoE+, each port supports max. 30W output;
Support power consumption indication(LED indicates power output status);
Accord with IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3 af/at standard;
4K MAC address,2.75Mb cache;
Quick installation, easy operation, convenient for wall-mounted、 desktop and rack
installations.

Notice

The transmission distance depends on the signal source and cable quality; standard Cat5e/6 Ethernet
cable is strongly suggested for reaching the maximum transmission distance!
1
VerB 1.0
L C
D
d i s
p l a
y

Board diagram

Front board
PoE Output
LED
PoE Output
CCTV Mode
Percentage LED
Back board
背面板
Notice
1) Device must be connected with lightning protection grounding; otherwise protection level will be greatly
reduced; please use above No.20 wire to connect the grounding terminal;
2) The device requires rebooting after the dial switch has been utilized.

Installation steps

Please check the following items before installation, if it is missing, please contact the dealer.
24 Ports PoE Switch
AC Power Cable
Accessories
User Manual
Please follow installation steps as below:
1 ) Turn off the power of all the related devices before the installation; otherwise the device would be
damaged;
2 ) Use Ethernet cable connect PoE IP camera and 1~24 downlink ports of product respectively;
3 Use an Ethernet cable to connect equipment uplink port with NVR or computer; )
4 ) Connect power adapter;
5 ) Check if the installation is correct, equipment is in good condition, the connection is stable, then
power on for system.
24 ports PoE Switch
Uplink
Gigabit Ports
Uplink Gigabit
SFP Combo Port
PoE Output Ports
AC100~240V
Grounding Terminal
1pcs
1pcs
1pcs
1pcs
2
