UTEPO SF18P-LM User Manual

16/24-Port
10/100Mbps
PoE
Switch
with
2
Gigabit Uplink
Ports

User
Manual
The series switches provide 16/24* 10/100Mbps downlink Ethernet ports
2*10/100/1000Mbps uplink Ethernet ports, which are widely used in HD video monitoring
system and network project etc. PoE ports 1~16/24 complies IEEE802.3af/at standard, and
PoE output power of each port can be up to 30W. The surge immunity level reaches 6kV and
ESD protection is up to 6kV contact discharge, 8kV air discharge. The switches support 3
operating modes (Default, VLAN, CCTV) and fully meet the application requirement of
security network video monitoring & networking project in hotel, campus, and small &
medium-sized enterprise.

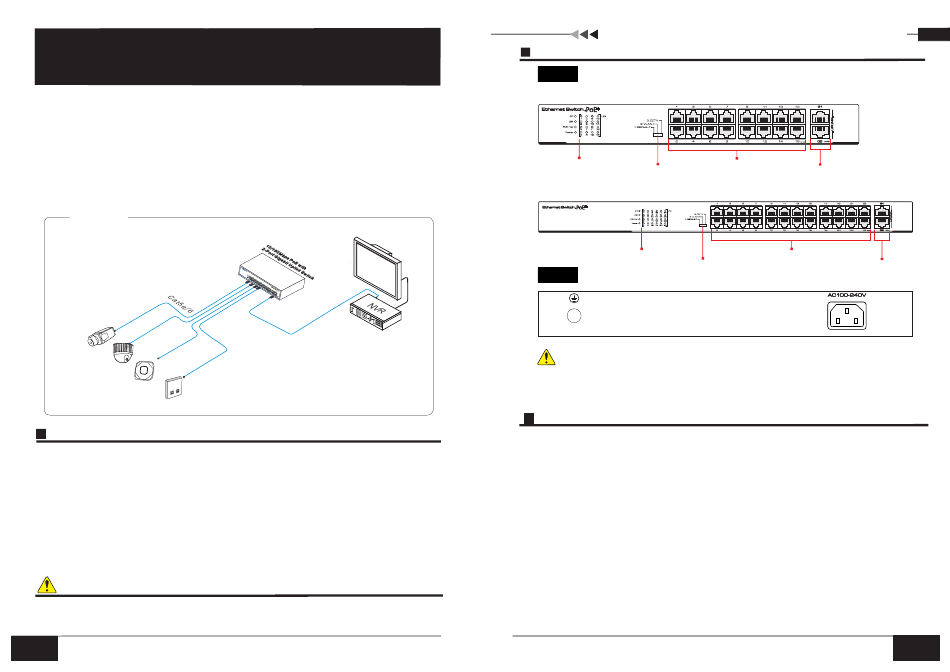

Application

PoE Camera
PoE Camera
AP
PoE AP
PoE AP

Feature

● Providing 16/24*10/100Mbps downlink Ethernet ports and 2*10/100/1000Mbps uplink
Ethernet ports.
● Support IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af/at.
● Support 16/24* PoE ports, max PoE power output is 30W.
● One-key smart: Default, CCTV, VLAN.
● 6KV surge immunity, ESD protection.
● Operating temperature: -10℃~50℃.
● Plug and play, user-friendly operation. Support installation of desktop, wall mounted, and
rack mounted.
Notice
It is recommended to use the standard Cat5e/6 network cable to reach the optimal
transmission distance.
1
13.238.101.1719
V2.0
(PoE) and
L C
D
16/24-Port

10/100Mbps
PoE
Switch
with
2
Gigabit Uplink

Ports

Board Diagram

Front
16-Port
10/100Mbps
PoE
Switch
with
2
Gigabit Uplink
Ports


LED
Indicator
10/100Mbps PoE downlink Port
DIP Switch

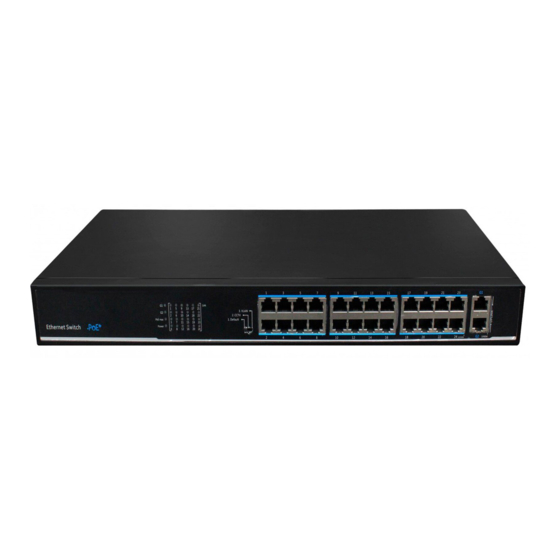

24-Port
10/100Mbps
PoE
Switch
with
2
Gigabit Uplink
Ports


LED
Indicator
DIP Switch
Back
Notice
It is recommended that the equipment should be connected to the protection ground for
better protection performance, otherwise equipment protection will greatly reduced;
Please use 20AWG or thicker wire to connect grounding terminal to the ground.

Installation Steps

Please check the following items before installation, if it is missing,
please contact the dealer.
● PoE Switch
● Power

Cable
















































● Mounting Kits
● User Manual
Please follow installation steps as below:
1) Please turn off the signal source and the device's power, installation with power on
may damage the device.
2) Use network cables to connect IP cameras with the product's downlink Ethernet ports .
3) Use another network cable or (optical fiber) to connect switch's uplink port with NVR
or computer.
4) Connect switch with power adapter.
5) Check if the installation is correct and device is good, make sure all the connection is
reliable and power up the system.
6) Make sure every network device power supply works normally.
10/100/1000Mbps
uplink Port
10/100Mbps PoE downlink Port
10/100/1000Mbps
uplink Port
1pc








1pc
2pcs
1pc
2
