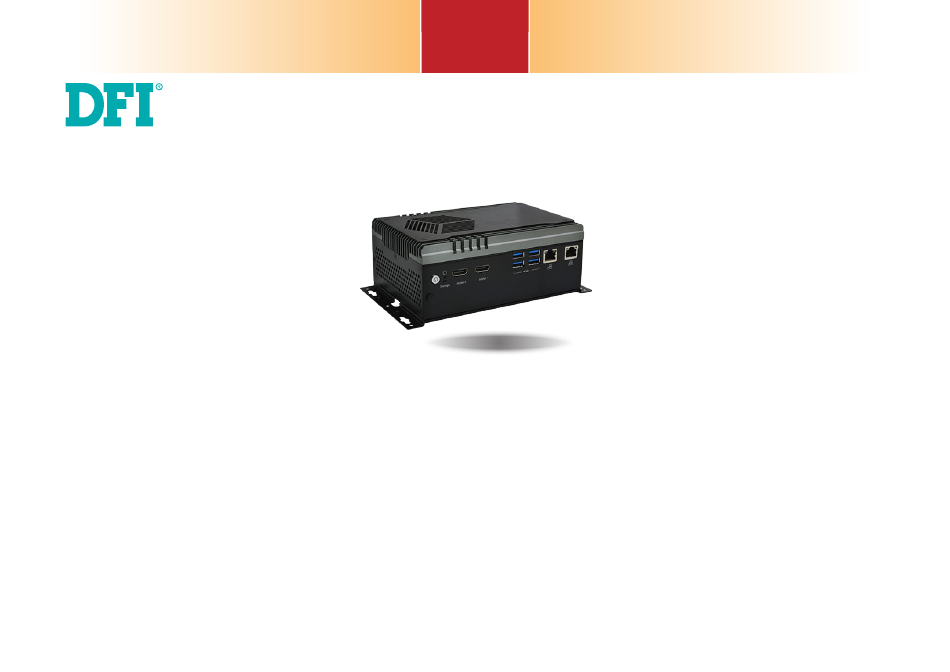

- Page 1 ES220-CS (CS1S/CS3S) Desktop Box PC User’s Manual ES220-CS www.dfi.com...
-
Page 2: Copyright
Product names or trademarks appearing in this manual are for identification purpose only and ance could void the user’s authority to operate the equipment. are the properties of the respective owners. Shielded interface cables must be used in order to comply with the emission limits. ES220-CS www.dfi.com... -
Page 3: Table Of Contents
Chapter 4 - BIOS Setup ..............15 Overview ..........................15 Main ............................16 Advanced ..........................16 Chipset ............................. 28 Security ............................ 31 Boot ............................32 Save & Exit ..........................32 Updating the BIOS ......................33 Notice: BIOS SPI ROM ......................33 ES220-CS www.dfi.com... -
Page 4: About This Manual
About this Manual Static Electricity Precautions An electronic file of this manual can be obtained from the DFI website at www.dfi.com. To It is quite easy to inadvertently damage your PC, system board, components or devices even download the user’s manual from our website, please go to Support > Download Center. On before installing them in your system unit. -
Page 5: Safety Precautions
1.2V (C246 only) • Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use 32GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 1Gx8 CL19 liquid or spray detergents for cleaning. 1.2V (C246 only) ES220-CS www.dfi.com... -
Page 6: Before Using The System
The board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative. ES220-CS www.dfi.com... -
Page 7: Chapter 1 - Introduction
Certification FCC, CE Class B, ROHs, WEEE 1 x M.2 2230 E key (PCIe x1/USB2.0), WiFi CERTIFICATIONS ® ETHERNET Controller 2 x Intel I219/I210IT (10/100/1000Mbps) (Support ® Intel iAMT) Indicators 1 x Power LED 1 x HDD LED ES220-CS www.dfi.com... -
Page 8: Getting To Know The Es220-Cs

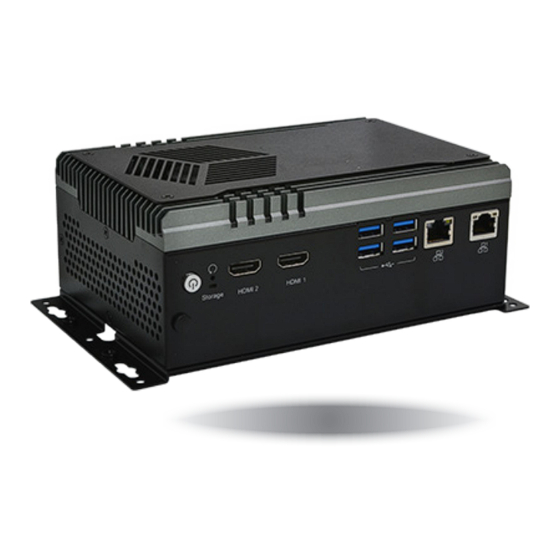

Getting to Know the ES220-CS Power Button HDMI 2.0 USB 3.1 Lan 1~2 Status LED, Front View Reset Button Front View ES220-CS (3 Storage) ES220-CS (1 Storage) Opening Antenna Hole USB 2.0 Rear View ES220-CS (3 Storage) Rear View ES220-CS (1 Storage) ES220-CS www.dfi.com... -
Page 9: Mechanical Dimensions
Mechanical Dimensions 1 Storage (1x m.2 SSD) Front View Left View Right View Rear View ES220-CS www.dfi.com... - Page 10 3 Storage (1x m.2 SSD + 2x 2.5" SSD) Front View Left View Right View Rear View ES220-CS www.dfi.com...
-
Page 11: Chapter 2 - Getting Started
Make sure that a storage device is already installed. Refer to the following chapters for information on installing a storage device Refer to your operating system manual for instructions on installing an operating system. Installing the Drivers Download the drivers and install. ES220-CS www.dfi.com... -
Page 12: Chapter 3 - Installing Devices
4. After the upper case was removed, 2.5" SDD slots / M.2 slots appears. 2. If you need to install or replace the CPU and 2nd memory, please also remove the three screws at each side of the box. ES220-CS www.dfi.com... - Page 13 7. To install or replace the SO_DIMM2, remove the 4 screw around the 2.5" slots first, and tilt up the slot. 8. Then you can install the memory on the SO_DIMM2 slot. 6. To install or replace the SO_DIMM2, remove the 4 screw around the 2.5" slots first, and tilt up the slot. ES220-CS www.dfi.com...
- Page 14 9. Before rotate the board to the next side, remove the side case first. 10. Rotate the case, loosen the four screws marked in red, and tilt up the plate. 12. Rotate the case again and reverse the board, then you can install other components including CPU on the board. ES220-CS www.dfi.com...
-
Page 15: Chapter 4 - Bios Setup
“Reset” button. You may also additional options are available for that field. To display the submenu, move the highlight to restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. that field and press <Enter>. ES220-CS www.dfi.com... -
Page 16: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59. ES220-CS www.dfi.com... - Page 17 Press +/- to set the minute from 0 to 59. what state the system is set to return to when power is re-applied after a power failure (G3 state). Wake up second Press +/- to set the second from 0 to 59. ES220-CS www.dfi.com...
- Page 18 Enable/Disable Power Limit. If this option is disabled, BIOS will leave the default values for Power Limit. Power Limit In milli-watts. BIOS will round to the nearest 1/8W when programming. For 12.50W, enter 12500. If the value is 0, BIOS leaves default value. ES220-CS www.dfi.com...
- Page 19 This section is used to configure Intel(R) Active Management Technology Parameters. Please refer to the following pages. ME Unconfig on RTC Clear When disabled, ME will not be unconfigured on RTC Clear. ► Firmware Update Configuration Please refer to the following pages. ES220-CS www.dfi.com...
- Page 20 Enable or disable to hide unconfigure ME confirmation prompt when attempt- ing ME unconfiguration. Force Secure Erase Unconfigure ME Enable or disable Force Secure Erase on next boot. Enable or disable to unconfigure ME with resetting MEBx password to default. ES220-CS www.dfi.com...
- Page 21 F2: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc. Me FW Image Re-Flash This field is used to enable or disable the Me FW Image Re-Flash function. ES220-CS www.dfi.com...
- Page 22 OS. TCG EFI protocol and INT1A interface will not be available. Pending operation Schedule an opeartion for the security device. Your computer will reboot during restart in order to change state of the security device. ES220-CS www.dfi.com...
- Page 23 Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. Select a PCI Express root port and press “Enter” to configure. ► Serial Port Configuration Configure the parameters of serial port 1 (COM 1) to serial port 4 (COM 4) as detailed later. ES220-CS www.dfi.com...
- Page 24 Fan Speed Count 1 field. Speed Count 1 to Speed Count 4 Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will operate according to the specified boundary temperatures above- mentioned. ES220-CS www.dfi.com...
- Page 25 Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc. When “CPU Smart Fan Mode” is set to “Manual mode”, the following field will appear. Manual PWM Setting Set the fan speed to a fixed value, ranging from 1-100%, 100% being maximum speed. ES220-CS www.dfi.com...
- Page 26 This field controls the execution of UEFI and Legacy Storage OpROM. Video This field controls the execution of UEFI and Legacy Video OpROM. Other PCI devices This field determines OpROM execution policy for devices other than Network, Storage or Video. ES220-CS www.dfi.com...
- Page 27 Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. ES220-CS www.dfi.com...
-
Page 28: Chipset
Select a Graphics device to be the primary display — Auto, IGFX, PEG, PCI. Max TOLUD Internal Graphics Assign a value or set “Dynamic” to automatically adjust TOLUD based on largest MMIO length. Keep IGFX enabled based on the setup options. ES220-CS www.dfi.com... - Page 29 This field is used to enable or disable the PCI express root port. PCIe Speed Select the speed of the PCI Express root port: Auto, Gen1, Gen 2 or Gen3. This field will not appear when the root port does not support speed configuration. ES220-CS www.dfi.com...
- Page 30 This field is only available when SATA Mode Selection is set to “Intel RST Pre- mium With Optane System Acceleration.” It is used to enable or disable to use RST Legacy OROM. Serial ATA Ports and Hot Plug Enable or disable the Serial ATA port and its hot plug function.RST Legacy OROM. ES220-CS www.dfi.com...
-
Page 31: Security
Force System to User Mode and install factory default Secure Boot key data- bases. Return to Setup Mode This command is only available when the system mode is in User mode and Secure Boot Mode is set to Custom. ES220-CS www.dfi.com... -
Page 32: Boot
Select this option to save BIOS configuration settings to a USB flash device. Select the driver boot order. Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore setting from the USB flash device. ES220-CS www.dfi.com... -
Page 33: Updating The Bios
You may refer to the how-to video “How the safety concerns, the BIOS (SPI ROM) chip cannot be removed from this system board and to update AMI BIOS in UEFI mode on DFI products?” at https://www.dfi.com/Knowledge/ used on another system board of the same model.
