Output Signal - HikRobot SC7000Pro Series Quick Start Manual

Parameter Name
Input Logic Level Low
Input Logic Level High
Input Falling Delay
Input Rising Delay

7.2 Output Signal

The device's Line 3/4/5 is opto-isolated output, and their internal circuit is as follows.
Note
● The output voltage ranges from 5 VDC to 30 VDC.
● The maximum current is 200 mA.
● Do not directly connect with inductive load (e.g. DC motor, etc.) when outputting.
Note
If the external voltage and resistance change, the corresponding current of output signal and
output logic level low may differ.
SC7000Pro Series Smart Camera Quick Start Guide
Table 7-1 Input Electrical Feature

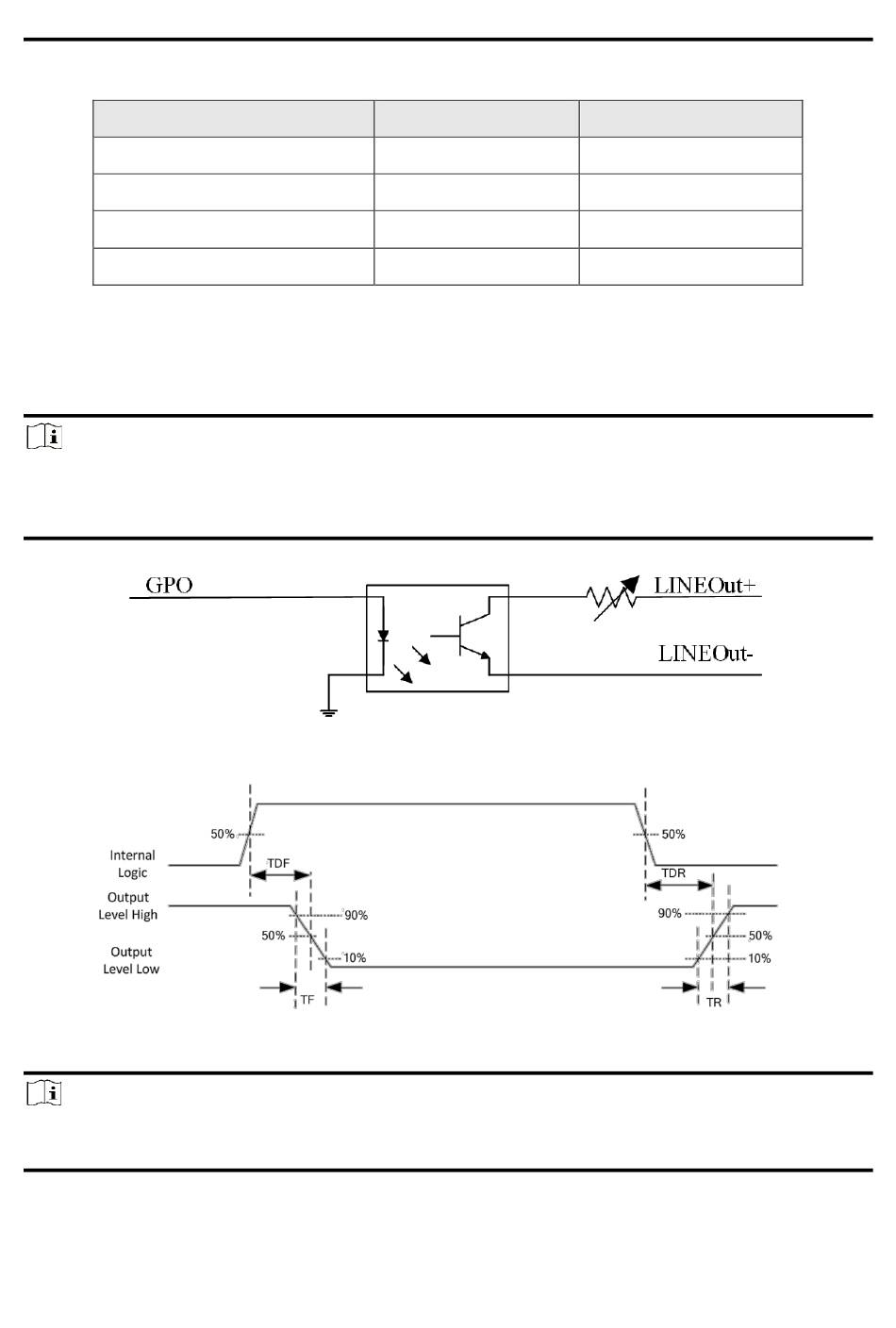

Figure 7-3 Internal Circuit of Output Signal
Figure 7-4 Output Logic Level
Parameter Symbol
VL
VH
TDF
TDR
16
Value
1.5 VDC
2 VDC
81.6 μs
7 μs
