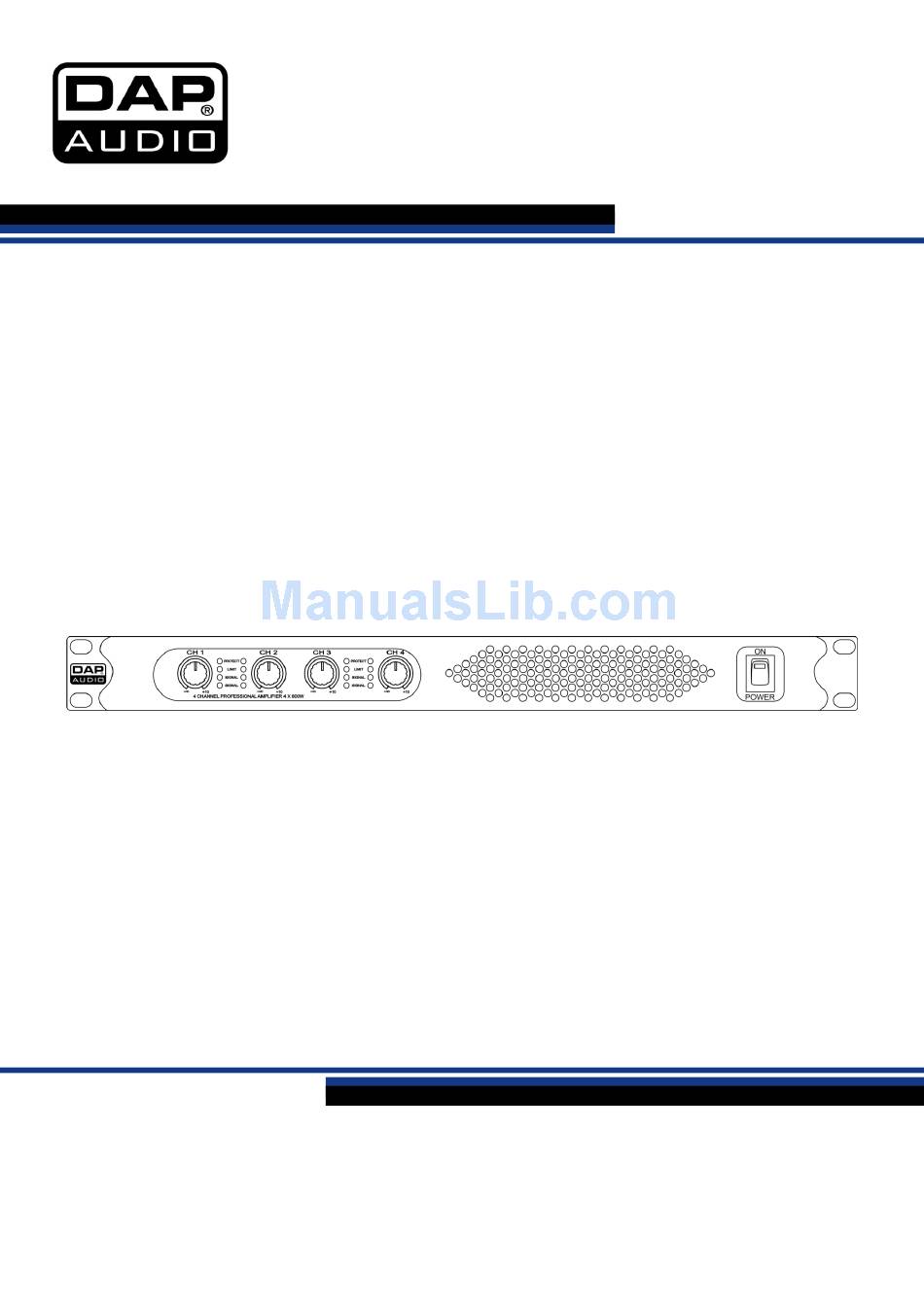

- Page 1 MANUAL ENGLISH Qi-4200 / 4400 / 4600 Ordercode: D4530 / D4531 / D4532 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Qi-4200 / 4400 / 4600 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Features ..................................5 Frontside..................................5 Backside .................................. -
Page 3: Warning
Qi-4200 / 4400 / 4600 Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 Qi-4200 / 4400 / 4600 Before changing the ground, always turn off your amplifier. Connecting amplifier outputs to oscilloscopes or other test equipment, while the amplifier is in bridge mode, may damage both, the amplifier and test equipment.
-
Page 5: Operating Determinations
Qi-4200 / 4400 / 4600 Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device
Qi-4200 / 4400 / 4600 Description of the device Qi-series is a family of powerful amplifiers, which guarantee high output level. There are three different versions available: Qi-4200, Qi-4400 and Qi-4600. Features Amplifier class: D 4 channels ... -
Page 7: Backside
Qi-4200 / 4400 / 4600 Backside Fig. 02 IEC power connector 120-230V + internal fuse Speakon speaker output connectors Channel 3 / Channel 4 stereo / mono / bridge switch Channel 1 / Channel 2 stereo / mono / bridge switch... -
Page 8: Names And Functions
Qi-4200 / 4400 / 4600 Names and Functions Frontside Fig. 03 01) PROTECT.LIMIT.SIGNAL LEDs Protection LED When this indicator lights up, the power amplifier is in protection mode. Switch off the device and find out what the problem is. The power amplifier is protected against overheat, overload, short circuit, etc. -
Page 9: Backside
Qi-4200 / 4400 / 4600 Backside Fig. 04 05) IEC power connector 120-230V + internal fuse Use this connector to connect the device to main power supply. 06) Speakon speaker output connectors Use these connectors to connect the device to speakers, using professional speaker cables with twist-locking plugs. -
Page 10: Connection Modes
Qi-4200 / 4400 / 4600 Connection modes Stereo connection Fig. 05 Note: The connection example above presents only channels 1 and 2. However, channels 3 and 4 can be connected in exactly the same manner. Impedance of 2Ω or lower is not allowed in stereo mode, as it would cause a short circuit which would severely damage the amplifier. -
Page 11: Connection Cables
Qi-4200 / 4400 / 4600 Note: To make sure that bridge mode functions properly, you need to connect the speakers only to the channel 1 and channel 3 outputs. If you connect the speakers to channel 2 and channel 4 outputs, bridge mode will not function. -
Page 12: Maintenance
Qi-4200 / 4400 / 4600 Maintenance The Qi-4200 / 4400 / 4600 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 13: Product Specifications
Qi-4200 / 4400 / 4600 Product Specifications Rated power / model Qi-4200 Qi-4400 Qi-4600 1kHz (HIA) with 1%THD 4 x 200W 4 x 400W 4 x 600W 4Ω stereo (per channel): 8Ω stereo (per channel): 4 x 120W 4 x 250W 4 x 360W 8Ω... -
Page 14: Dimensions
Qi-4200 / 4400 / 4600 Dimensions Ordercode: D4530 / D4531 / D4532... -
Page 15: Notes
Qi-4200 / 4400 / 4600 Notes Ordercode: D4530 / D4531 / D4532... - Page 16 ©2015 DAP Audio...
