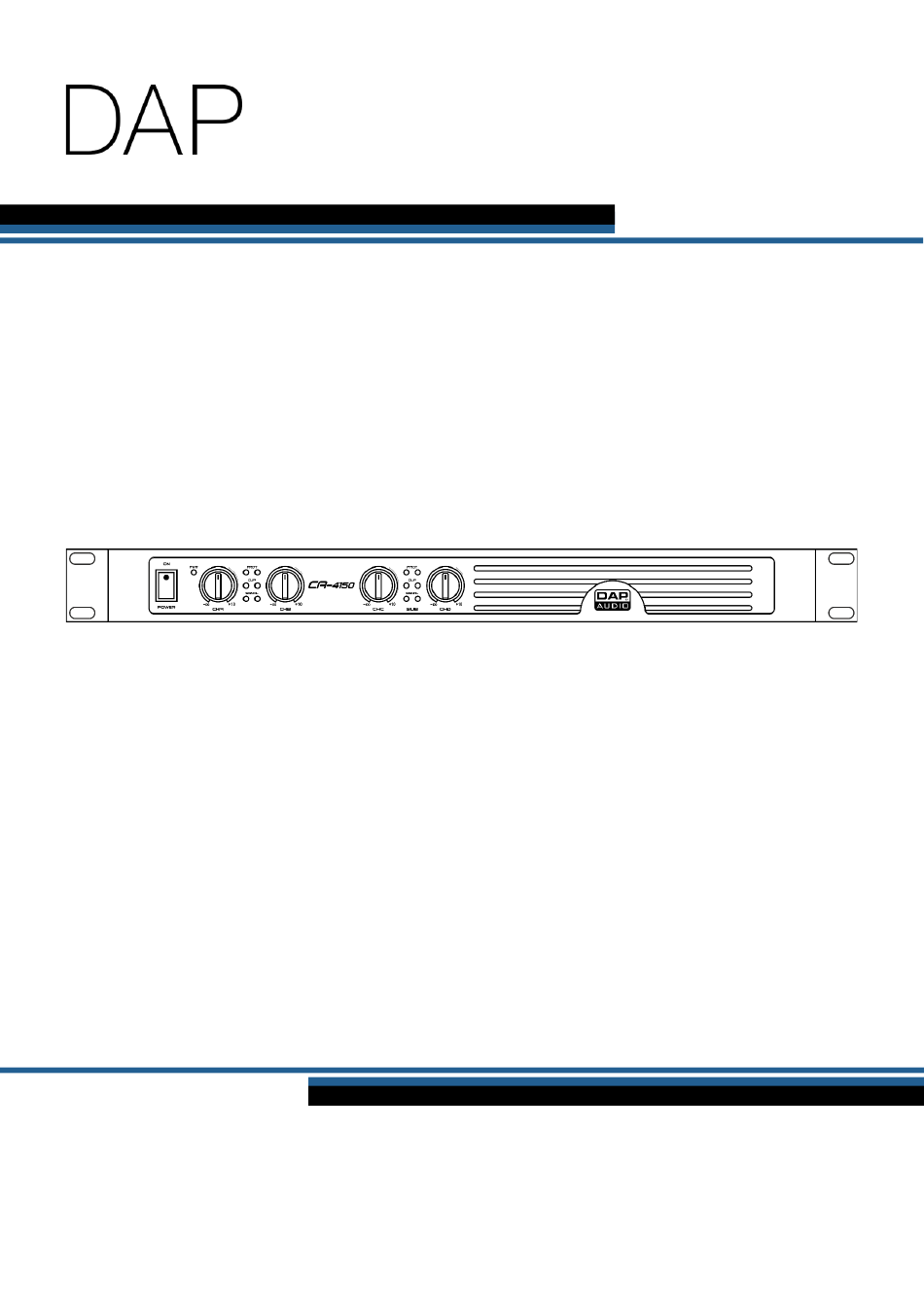

- Page 1 USER MANUAL ENGLISH CA-4150 Product code: D4512 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 CA-4150 Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
CA-4150 Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety ..................................4 Warnings and Safety Instructions ........................5 Requirements for the User .......................... -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● DAP CA-4150 ● Schuko to IEC power cable (1,5 m) ● User manual Fig. 01 Intended Use This device is intended for professional use as an amplifier. -
Page 5: Symbols And Signal Words
CA-4150 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Warnings And Safety Instructions
CA-4150 Warnings and Safety Instructions DANGER Danger for children For adult use only. The device must be installed beyond the reach of children. ● Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within children’s reach. Packaging material is a potential source of danger for children. -
Page 7: Requirements For The User
CA-4150 Attention General safety ● Do not block the ventilation openings. Without proper heat dissipation and air circulation, the internal components may overheat. This can result in product damage. ● Do not shake the device. Avoid brute force when installing or operating the device. -
Page 8: Description Of The Device
CA-4150 Description of the Device The CA-4150 is a 4 x 150 W D-class amplifier with SMPS and with a configurable built-in crossover. It can be installed in a standard 19-inch rack. Front View Fig. 02 01) Power switch 02) Power LED indicator (Blue) -
Page 9: Product Specifications
CA-4150 Product Specifications Model: CA-4150 Electrical: Input voltage: 220–240 V AC, 50 Hz Power consumption: 636 W SMPS: Fuse: T5AL/250 V Outputs: 2 Ω stable: Output power (8 Ω @ 1 kHz): 90 W (per channel) Output power (4 Ω @ 1 kHz): 150 W (per channel) Output power (2 Ω... -
Page 10: Dimensions
CA-4150 Connections: Power connections: IEC power connector IN Mono input connections: 2 x 6-pin terminal connector Output connections: 4 x 2-pin terminal upper connectors 4 x 2-pin terminal lower connectors Construction: Cooling: Radial fan Housing: Metal Color: Black IP rating:... -
Page 11: Rack Mounting
CA-4150 Rack Mounting The device can be mounted in a standard 19-inch rack. The device requires 1 rack unit (U) of space, which is 44,5 mm high. Make sure that the rack is sufficiently secured to prevent it from becoming unstable or falling over. -
Page 12: Turning On/Off
The device has the following audio inputs: 2 x 6-pin terminal balanced signal connectors IN (17). Note: To avoid interference, turn the CA-4150 off when connecting devices. Connect speakers to the 2-pin terminal CH A–D speaker connectors OUT (08/09/10/11). The upper and lower output connectors have the same function. -
Page 13: Mode 1 - Ch A/B/C/D - All Stereo
CA-4150 Connect the source signal to the 6-pin terminal balanced signal connectors IN (17). You can connect up to 4 source signals (A–D). Select operation modes with the mode selector (DIP switches) (15). There are 9 operation modes. To select operation modes, move the DIP switches of the mode selector (DIP switches) (15) to the correct positions. -
Page 14: Mode 2 - Ch A/B/C/D - All Parallel
CA-4150 Mode 2 – Ch A/B/C/D – All Parallel Fig. 06 Product code: D4512... -
Page 15: Mode 3 - Ch A/B - Bridge, Ch C/D - Bridge
CA-4150 Mode 3 – Ch A/B – Bridge, Ch C/D – Bridge Fig. 07 Product code: D4512... -
Page 16: Mode 4 - Ch A/B - Parallel, Ch C/D - Parallel
CA-4150 Mode 4 – Ch A/B – Parallel, Ch C/D – Parallel Fig. 08 Product code: D4512... -
Page 17: Mode 5 - Ch A/B - Stereo, Ch C/D - Bridge (Full Range)
CA-4150 Mode 5 – Ch A/B – Stereo, Ch C/D – Bridge (Full Range) Fig. 09 Product code: D4512... -
Page 18: Mode 6 - Ch A/B - Parallel, Ch C/D - Bridge (Full Range)
CA-4150 Mode 6 – Ch A/B – Parallel, Ch C/D – Bridge (Full Range) Fig. 10 Product code: D4512... -
Page 19: Mode 7 - Ch A/B - Stereo, Sub (Ch C/D - Bridge, Input = Ch C)
CA-4150 Mode 7 – Ch A/B – Stereo, Sub (Ch C/D – Bridge, Input = Ch C) Fig. 11 Product code: D4512... -
Page 20: Mode 8 - Ch A/B - Stereo, Sub (Ch C/D - Bridge, Input = Ch A+B)
CA-4150 Mode 8 – Ch A/B – Stereo, Sub (Ch C/D – Bridge, Input = Ch A+B) Fig. 12 Product code: D4512... -
Page 21: Troubleshooting
CA-4150 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. Refer servicing to instructed or skilled persons. -
Page 22: Basic Cleaning Instructions
CA-4150 Basic Cleaning Instructions To clean the device, follow the steps below: Disconnect the device from the electrical power supply. Allow the device to cool down for 5 minutes. 03) Clean the device with a soft, lint-free cloth. Attention ●... -
Page 23: Disposal
CA-4150 Disposal Correct disposal of this product Waste Electrical and Electronic Equipment This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. Dispose of this product by handing it to the respective collection point for recycling of electrical and electronic equipment. - Page 24 ©2022 DAP...
