- Page 1 MANUAL ENGLISH PA-16120 Public Address Amplifier Ordercode: D6162 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
PA-16120 Public Address Amplifier Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Frontside..................................5 Backside ..................................6 Installation ................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: DAP Audio PA-16120 Public Address Amplifier IEC power cable (1,5 m) ... - Page 4 PA-16120 Public Address Amplifier IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. Never let the power cord come into contact with other cables! Handle the power cord and all connections with the mains with particular caution! ...
-
Page 5: Operating Determinations
PA-16120 Public Address Amplifier Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device

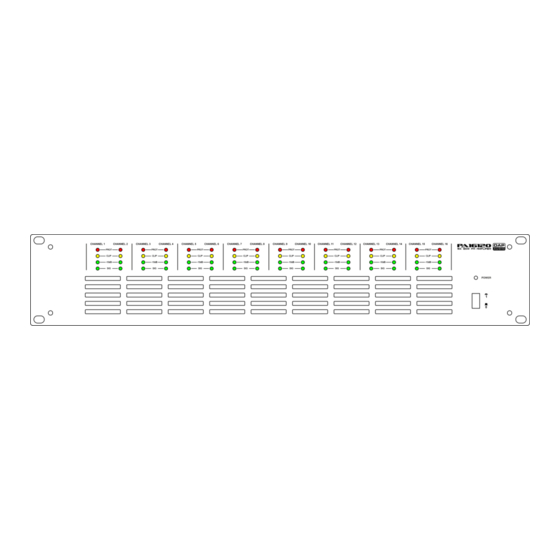

Description of the device Features The DAP PA-16120 is a 16 x 120W amplifier. It is a reliable workhorse that can be used for many applications. The DAP PA-16120 can be used as 16-channel mono amplifier or an 8-channel stereo amplifier. -
Page 7: Backside
Connect an input signal source. Installation Remove all packing materials from the PA-16120. Check if all foam and plastic padding is removed. Secure the equipment into a 19" rack if preferred. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 8: Connecting Outputs
PA-16120 Public Address Amplifier Connecting Outputs Speakers are connected by means of terminal connectors. See the examples below. Low Impedance Outputs You can use as many speakers as you want as long as the total impedance matches the amplifier’s output. -
Page 9: Block Diagram
PA-16120 Public Address Amplifier Block Diagram Fig. 05 Ordercode: D6162... -
Page 10: Maintenance
PA-16120 Public Address Amplifier Maintenance The DAP Audio PA-16120 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 11: Product Specifications
PA-16120 Public Address Amplifier Product Specifications Input voltage: 100-240V AC, 50/60Hz Rated power (1kHz, THD 1%): 120W x 16 / 240W x 8 Output impedance: 80W (4 Ohm) / 120W (8 Ohm) or 100V (42 Ohm) ... - Page 12 ©2019 DAP Audio...
