- Page 1 USER MANUAL ENGLISH Phantom 12R Hybrid Product code: 40080 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Phantom 12R Hybrid Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Phantom 12R Hybrid Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Phantom 12R Hybrid Gobo Wheels and Color Wheel ........................32 Replacing a Gobo From the Rotating Gobo Wheel ................33 Gobo Size ..............................34 Glass Gobo Orientation ..........................35 Lamp ...................................35 Troubleshooting ..............................36 Maintenance ..............................37 Safety Instructions for Maintenance ......................37 Preventive Maintenance ..........................37 Basic Cleaning Instructions ........................37...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Showtec Phantom 12R Hybrid 2 x quick-lock brackets Schuko to pro power cable (1,5 m) User manual Fig. -
Page 6: Symbols And Signal Words
Phantom 12R Hybrid Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Phantom 12R Hybrid Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Phantom 12R Hybrid WARNING Risk of burns due to hot surface The surface and the inner parts of the device can become very hot during operation. ● Do not touch the device during operation. ● Allow the device to cool down for at least 20 minutes before handling.
- Page 9 Phantom 12R Hybrid Attention General safety Do not lift the device holding it by the projector head. This may damage the mechanics. Use the transport handles when handling the device. Do not insert objects into the air vents. ● Do not connect the device to a dimmer pack.
-
Page 10: Requirements For The User
Phantom 12R Hybrid Attention For professional use only This device shall be used only for the purposes it is designed for. This device is designed to be used as a spot light moving head. Any incorrect use may lead to hazardous situations and result in injuries and material damage. -
Page 11: Description Of The Device

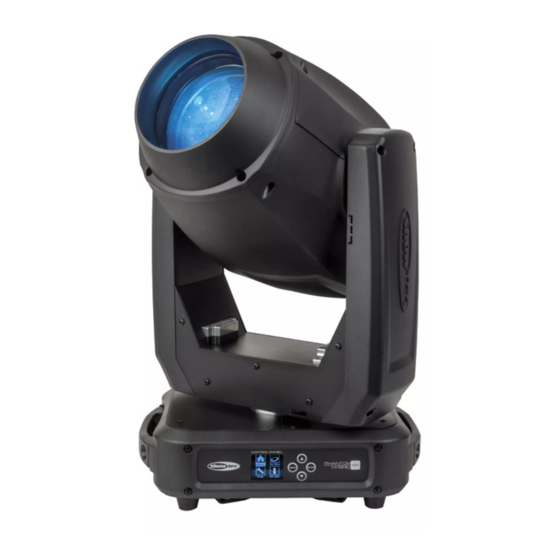

Phantom 12R Hybrid Description of the Device The Phantom 12R Hybrid is the bigger version of the Phantom 3R Hybrid. The Phantom 12R Hybrid is equipped with a 12-color color wheel, 16 static gobos and 8 rotating gobos. Front View... -
Page 12: Base Plate
Phantom 12R Hybrid Base Plate 4 x mounting holes for quick-lock brackets Safety eye Fig. 04 Product code: 40080... -
Page 13: Product Specifications
Phantom 12R Hybrid Product Specifications Model: Phantom 12R Hybrid Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 390 W Fuse: F6,3L/250 V Physical: Dimensions: 325 x 212 x 550 mm (L x W x H) Weight: 16,83 kg... -
Page 14: Optional Accessories
Phantom 12R Hybrid Optional Accessories You can additionally purchase the following accessories: Product code: 81019 (Ushio NSL300 lamp, 300 W) Dimensions Fig. 05 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. -
Page 15: Installation Site Requirements
Phantom 12R Hybrid Installation Site Requirements The device must be installed only indoors. The device can be mounted to a truss or other rigging structure in any orientation. The minimum distance between the light output and the illuminated surface must be bigger than 10 m. -
Page 16: Connecting To Power Supply
Phantom 12R Hybrid Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 17: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Phantom 12R Hybrid is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually or in auto mode. -
Page 18: Dmx Cables
Fig. 08. Fig. 08 Master/Slave Setup The Phantom 12R Hybrid supports master/slave control mode. To connect multiple devices in master/slave setup, follow the steps below: Connect the first device’s DMX OUT connector to the second device’s DMX IN connector. -
Page 19: Dmx Linking
Continue assigning the starting addresses of the remaining devices by adding each time 18 to the previous number. Make sure that you do not have any overlapping channels in order to control each Phantom 12R Hybrid correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 20: Operation
Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. Control Modes The Phantom 12R Hybrid supports the following control modes: Stand-alone: Auto operation mode (auto programs), manual operation mode, sound-... -
Page 21: Control Panel
Start-up Upon start-up the display will show a splash screen with the logo of Showtec. Immediately afterwards the display will show the start screen. The start screen provides information about the currently active operation mode and the current pan/tilt angle setting. Press the ENTER button to enter the main menu. -
Page 22: Menu Overview
Phantom 12R Hybrid Menu Overview Product code: 40080... -
Page 23: Main Menu Options
Phantom 12R Hybrid Main Menu Options DMX Address DMX mode / Slave / Auto / Sound / Manual Pan Reverse / Tilt Reverse / Screen Reverse / Pan Angle / Tilt Angle / Lamp Settings / Maintenance / Sensitivity / Wireless Enable / Wireless Unlink / Reset /... -
Page 24: Built-In Programs Mode
Phantom 12R Hybrid Built-in Programs Mode In this menu you can set the DMX channel mode, slave mode, auto programs, sound-controlled mode and manual operation. 01) While in the main menu, press the UP/DOWN buttons to select 02) Press the ENTER button to open the menu. -
Page 25: Manual
Phantom 12R Hybrid Manual 01) The display shows: 02) Press the UP/DOWN buttons to choose one of the following 11 options: ● ● TILT ● DIMMER (from low to high intensity) ● SHUTTER ● COLOR (color wheel) ● GOBO2 (static gobo wheel) ●... -
Page 26: Advanced Settings
Phantom 12R Hybrid Advanced Settings In this menu you can adjust the advanced settings. 01) While in the main menu, press the UP/DOWN buttons to select 02) Press the ENTER button to open the menu. The display shows: 03) Press the UP/DOWN buttons to choose one of the following 12 options: ●... -
Page 27: Lamp Settings
Phantom 12R Hybrid Lamp Settings In this menu you can set the lamp’s behavior and reset the lamp’s time counter. Press the UP/DOWN buttons to toggle between the following options: ● ON/OFF Turn the lamp on and off ● STATE/POWER ON The lamp is on or off upon start-up (ON/OFF) ●... -
Page 28: System Information
Phantom 12R Hybrid System Information In this menu you can see the current current software version, currently active mode, DMX starting address, temperature, Lamp On Time (lamp’s operating hours), Remain Time (time after which a safety check should take place) and fan speed (1 and 2). -
Page 29: Dmx Channels
Phantom 12R Hybrid DMX Channels CAUTION Possible damage to the lamp Do not turn off the device if the lamp was on for shorter than 5 minutes. It will cause mercury build-up on the lamp’s electric poles and it will not be possible to turn the lamp on. See 7. Troubleshooting on page 36 for more information. - Page 30 Phantom 12R Hybrid 14 CH 18 CH Function Value Setting 220–223 Stop 224–255 Color scroll clockwise, from slow to fast 000–003 Open 004–007 Gobo 1 008–011 Gobo 2 012–015 Gobo 3 016–019 Gobo 4 020–023 Gobo 5 024–027 Gobo 6 028–031...
- Page 31 Phantom 12R Hybrid 000–005 Open 1 006–011 Open 2 012–017 Gobo 1 018–023 Gobo 2 024–029 Gobo 3 030–035 Gobo 4 036–041 Gobo 5 042–047 Gobo 6 048–053 Gobo 7 054–063 Gobo 8 Rotating Gobo Wheel 064–069 Gobo 8 shaking, from slow to fast 070–075...
- Page 32 Phantom 12R Hybrid Frost 000–255 0–100 % Focus 000–255 0–100 % Zoom 000–255 From big to small (0–100 %) 000–007 No function 008–015 Blackout during Pan/Tilt + Pan Fine /Tilt Fine movement 016–023 Blackout during color wheel movement 024–031 Blackout during gobo wheel (Static+Rotating) movement 032–039...
-
Page 33: Gobo Wheels And Color Wheel
Phantom 12R Hybrid Gobo Wheels and Color Wheel Color wheel Static gobo wheel Rotating gobo wheel Fig. 12 Product code: 40080... -
Page 34: Replacing A Gobo From The Rotating Gobo Wheel
Phantom 12R Hybrid Replacing a Gobo From the Rotating Gobo Wheel DANGER Electric shock caused by dangerous voltage inside There are areas within the device where dangerous touch voltage may be present. Disconnect the device from electrical power supply before service and maintenance, and when the device is not in use. -
Page 35: Gobo Size
Phantom 12R Hybrid Gently lift the gobo holder a bit up and pull it out from the rotating gobo wheel, as shown in Fig. 14 and Fig. 15. Fig. 14 Fig. 15 Very carefully remove the retainer spring from the gobo holder with a small flathead screwdriver or similar. -
Page 36: Glass Gobo Orientation
Phantom 12R Hybrid Glass Gobo Orientation Coated glass gobos are inserted with the coating against the rim of the holder (away from the spring). Textured gobos are inserted with the smooth side against the spring. This provides the best results when combining rotating gobos. -
Page 37: Troubleshooting
Phantom 12R Hybrid Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 38: Maintenance
Phantom 12R Hybrid Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. WARNING Risk of burns due to hot surface Allow the device to cool down for at least 20 minutes before servicing or cleaning. -
Page 39: Corrective Maintenance
Phantom 12R Hybrid Attention Do not immerse the device in liquid. Do not use alcohol or solvents. Make sure that the connections are fully dry before connecting the device to the power supply and to other devices. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. -
Page 40: Replacing The Lamp
Phantom 12R Hybrid Replacing the Lamp Important Read and follow the instructions in this user manual, as well as in the user manual of the replacement lamp, before replacing the lamp. The manufacturer will not accept liability for any resulting damages caused by the non-observance of the respective manuals. - Page 41 Phantom 12R Hybrid Open the lamp housing (Fig. 19). Disconnect the 2 wires from the lamp terminals (Fig. 20). Fig. 19 Fig. 20 Push the lamp carefully to the right against the 2 springs on the right side (Fig. 21).
-
Page 42: Adjusting The Lamp
Phantom 12R Hybrid Adjusting the Lamp The lamp position is set in the factory. As lamps differ from manufacturer to manufacturer, it may be necessary to readjust their position. If the hotspot is not in the center of the projection of the light beam, calibrate it on a horizontal plane (wall). -
Page 43: Deinstallation, Transportation And Storage
Phantom 12R Hybrid Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. Let the device cool down before dismounting. Disconnect power supply before deinstallation. Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 44 ©2021 Showtec...
