- Page 1 LED Par 64 Short Q4-18 ORDERCODE 42469 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec LED Par 64 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec LED Par 64 Product Guide ™ Warning.................…...……………..…………………………….…………. Safety-instructions………………………………………………………………………………………………………. Operating Determinations.…………………………………………………………………………………………… Rigging.…………………………………………………………………………………………………………………… Return Procedure……………………………………………………………………..........Claims……………………………………………………………………..............Description................…...………………………………………….……….. Features and Overview ………………………………...….……………….………….……………………….……. Installation................…...…………………………………….……………… Set Up and Operation..............……..…………………………………………… Control Modes…………………………………………………………………………………………………….……. One LED Par 64 (Built-in Programs, Auto Run)…..…………………….…………………..……..….……… One LED Par 64 (Sound Control)………………………………………………………………….…..………. -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 1.5 meter. The maximum ambient temperature t = 45°C must never be exceeded. -
Page 7: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 8: Description

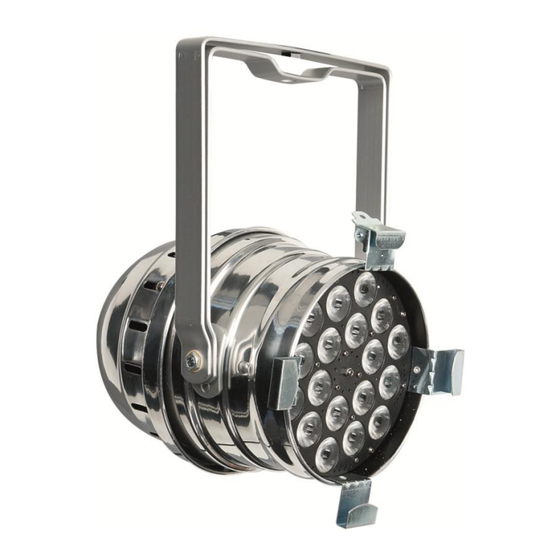

Description of the device Features The Showtec LED Par 64 is a LED parcan with high output and great effects. • Never change lamps again! • High light-output • RGBW colormixing, offering vivid colors as well as the possibility to reproduce pastel colors •... -
Page 9: Installation
Installation Remove all packing materials from the LED Par 64. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. -
Page 10: Multiple Led Par 64 (Dmx Control)
Multiple LED Pars (DMX Control) 1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. Always use a safety cable (ordercode 70140 / 70141). 3. Use a 3-p XLR cable to connect the LED Pars and other devices. 4. -
Page 11: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
The LED Par 64 can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel Fig. 5 A. LCD Display D. Up Button B. MODE button E. Down Button C. SETUP Button DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 13: Menu Overview
Menu Overview 1. Auto Program 2. DMX Address 3. Slave 4. Sound-controlled 5. Built-in Programs... -
Page 14: Auto Run Mode
Main Menu Options Auto DMX address Slave Sound controlled Built-in Programs 1. Auto Run Program 1) Press the MODE button on the device, until the display shows 2) With this menu you can play its auto program. 2. DMX Mode With this menu you can set the DMX address. - Page 15 Red from 000-255 Flash Frequency from 00-99 Red from 000-255 Green from 000-255 Flash Frequency from 00-99 Green from 000-255 Flash Frequency from 00-99 Green from 000-255 Blue from 000-255 Flash Frequency from 00-99 Blue from 000-255 Flash Frequency from 00-99 Red from 000-255 Blue from 000-255 Flash Frequency from 00-99...
-
Page 16: Dmx Channels
DMX Protocol The LED Par 64 can be operated with a controller in control mode or without the controller in stand-alone mode. DMX Channels 4CH) Channel 1 – Red 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green 0-255 Gradual adjustment Green from 0 –... -
Page 17: Channels
DMX Channels 8CH) Channel 1 – Master Dimmer intensity 0-255 Gradual adjustment Blue from 0 – 100% Channel 2 – Red (when CH7 is set to 0 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Macro Colors (when CH7 is set between 1-22 Macro Color 1 6-11 Macro Color 2... - Page 18 Channel 2 – Audio Sensitivity (when CH7 is set between 253-255 0-255 Audio sensitivity from less sensitive to highly sensitive Channel 3 – Green 0-255 Gradual adjustment Green from 0 – 100% Channel 4 – Blue 0-255 Gradual adjustment Blue from 0 – 100% Channel 5 –...
-
Page 19: Maintenance
ID64 ID65 ID66 Maintenance The Showtec Compact Power Lightset requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. -
Page 20: Troubleshooting
Troubleshooting No Light, No Movement - All Products This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. -
Page 21: Product Specifications
Product Specification Model: Showtec LED Par 64 Never change lamps again! High light-output RGBW colormixing, offering vivid colors as well as the possibility to reproduce pastel colors Equipped with a double bracket for multifunctional use 18 x 4-in-1 LEDs Drive Current: 450mA Refresh rate: 7.8kHz...
