- Page 1 MANUAL ENGLISH XS-1 RGBW Ordercode: 40159 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Backside......................................8 Installation ......................................8 Set Up and Operation ...................................8 Control Modes ....................................9 One XS-1 RGBW (Built-in Programs and Manual) ........................9 One XS-1 RGBW (Sound-controlled) ............................9 Multiple XS-1 moving heads (Master/Slave control) ......................9 Multiple XS-1 moving heads (DMX Control) ......................... 10 Fixture Linking ....................................11 Data Cabling .................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec XS-1 RGBW • 1 mounting bracket •... - Page 4 For replacement use fuses of same type and rating only. • The user is responsible for correct positioning and operating of the XS-1 RGBW. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
XS-1 RGBW Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light output and the illuminated surface must be bigger than 1 meter. -
Page 6: Connection With The Mains
XS-1 RGBW Mounting a clamp to the underside of the XS-1 moving head Improper installation can cause serious injuries to people and/or damage of property ! Connection with the mains Connect the device to the mains with the power plug. -
Page 7: Return Procedure
XS-1 RGBW Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

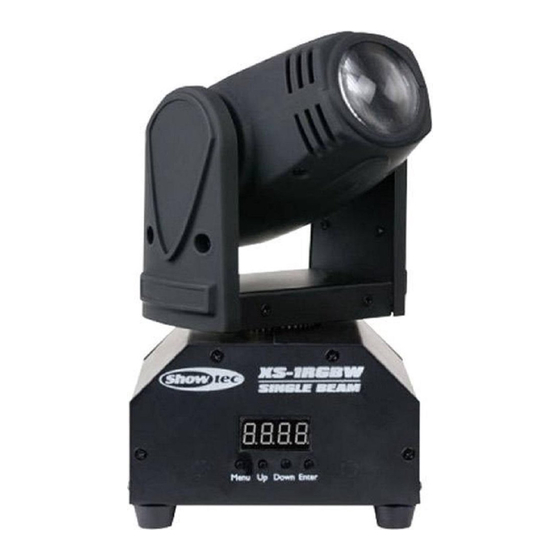

XS-1 RGBW Description of the device Features The XS-1 is an extreme compact beam moving head, available in white and RGBW. The special optical lens system creates strong and solid beam. Mounting of your XS-1 is easy with only one bracket ... -
Page 9: Backside
06) 3-pin DMX signal connector OUT Installation Remove all packing materials from the XS-1 RGBW. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Control Modes
02) Plug the end of the electric mains power cord into a proper electric power supply socket. 03) Turn on the music. If the device is set to sound-control, then the XS-1 RGBW will react to the music beats. Please, see page 15 for more information about the sound control options. -
Page 11: Multiple Xs-1 Moving Heads (Dmx Control)
XS-1 RGBW Multiple XS-1 moving heads (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 12: Fixture Linking
XS-1 RGBW Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
XS-1 RGBW Control Panel LCD Display MENU button Up Button Down Button Enter Button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) -
Page 14: Menu Overview
XS-1 RGBW Menu Overview Ordercode: 40158... -
Page 15: Main Menu Options
XS-1 RGBW Main Menu Options DMX address Channel Mode Master/Slave Auto Sound-controlled Sound Sensitivity Blackout LED Display Display Invert Pan Invert Tilt Invert Manual Mode Test Hours Used Firmware Version Reset Ordercode: 40158... -
Page 16: Dmx Addressing
XS-1 RGBW 1. DMX Addressing With this menu you can set the DMX address. 01) Press the MENU button and then the Up / Down buttons, until the display shows 02) Press the ENTER button to open this menu. You can choose 512 different DMX addresses. -
Page 17: Sensitivity Mode
XS-1 RGBW 6. Sensitivity Mode With this menu you can set the Sensitivity control. 01) Press the MENU button and then the Up / Down buttons, until the display shows 02) Press the ENTER button to open this menu. 03) You can choose 100 different Audio Sensitivity levels 04) Press the SETUP button to confirm your choice. -
Page 18: Manual Control
XS-1 RGBW 12. Manual control With this menu you can set the manually set 8 options. 01) Press the MENU button and then the Up / Down buttons, until the display shows 02) Press the ENTER button to open this menu. -
Page 19: Dmx Channels
XS-1 RGBW DMX Channels 9 Channels Channel 1 – Horizontal movement (Pan) Move the slider up and down, in order to move head horizontally (PAN). Gradual head adjustment by moving the slider from one end to the other (0-255). The head can be turned by 540° and stopped in any position. -
Page 20: Channels
XS-1 RGBW 16 Channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. -
Page 21: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Showtec XS-1 RGBW requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 22: Replacing A Fuse
Response: Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LED. Return the XS-1 RGBW to your Showtec dealer. 03) The fuse. Replace the fuse. See page 21 for replacing the fuse. - Page 23 XS-1 RGBW Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 24: Product Specifications
XS-1 RGBW Product Specifications Model: Showtec XS-1 RGBW Input Voltage: 100~240VAC 50/60Hz Power consumption: 25W max. at full output Fuse: F1AL/250V Dimensions: 125 x 125 x 236 mm (LxWxH) Weight: 2 Kg Operating and Programming: Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+) -
Page 25: Dimensions
XS-1 RGBW Dimensions Ordercode: 40158... -
Page 26: Notes
XS-1 RGBW Notes Ordercode: 40158... - Page 27 XS-1 RGBW Ordercode: 40158...
- Page 28 ©2015 Showtec...
