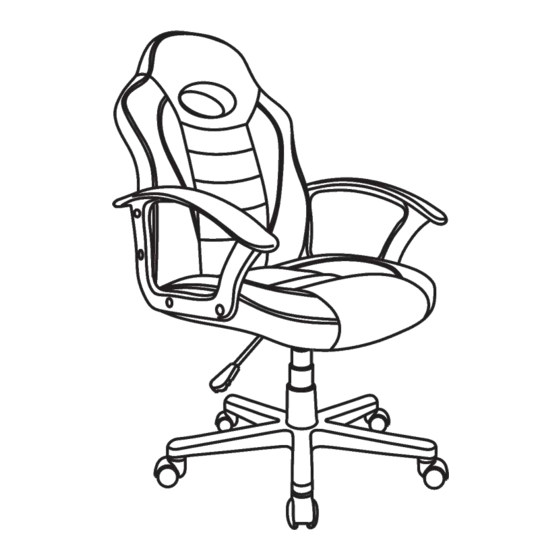

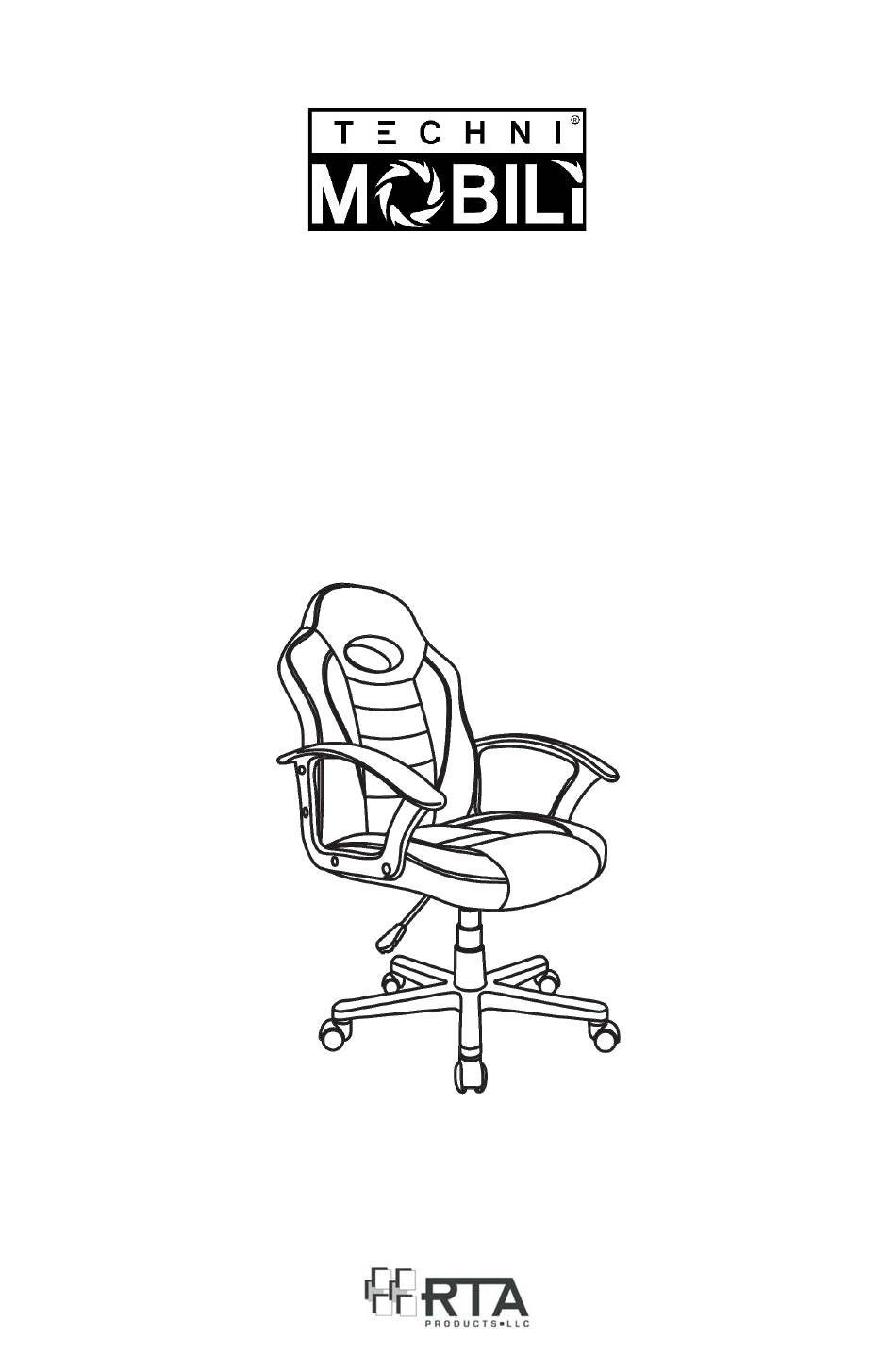

- Page 1 MODEL RTA-KS40/K45C ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.092021-3...
- Page 2 RTA-KS40/K45C MAIN PARTS LIST Pneumatic Backrest Seat 5-Leg star Mechanism lift cylinder base Casters Left Right Covers for armrest armrest gas lift X1 Set Sitting on the chair, not looking at it LIST OF HARDWARE PART ITEM USE IN M6x20 Mechanism to seat Armrests to seat and M6x25...
- Page 3 RTA-KS40/K45C BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS ❶ ❻ AND WARNINGS. Do a quick inventory to Make sure you make sure the package understand which hardware contains all the parts and will be used on each step. hardware listed in the Using the wrong size of assembly instructions.
- Page 4 RTA-KS40/K45C ASSEMBLY STEPS STEP 1 Insert the casters F into the legs of the base C using pressure, then place the gas lift E in the middle of the base and cover it with H. STEP 2 Turn over the seat B with its front end away from Hardware you, and using screws I...
- Page 5 RTA-KS40/K45C STEP 4 Assemble the armrests G to the seat B in their respective Hardware RIGHT LEFT sides using screws J, but leave the screws very loose M6x25 to allow flexibility for the next step. Leave all the screws loose (Front) STEP 5 Assemble the backrest A to...
- Page 6 RTA-KS40/K45C CHAIR’S FUNCTIONS To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. Please note that this chair does not recline. Weight Limit 140 Lbs...
- Page 7 9.Report any defects to RTA Products, LLC together with your sales receipt or other proof of purchase. If the chair is defective within the terms of the warranty, RTA Products, LLC will furnish a replacement chair (at its option) at no cost of equal or similar value and design.
- Page 8 RTA-KS40/K45C FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
