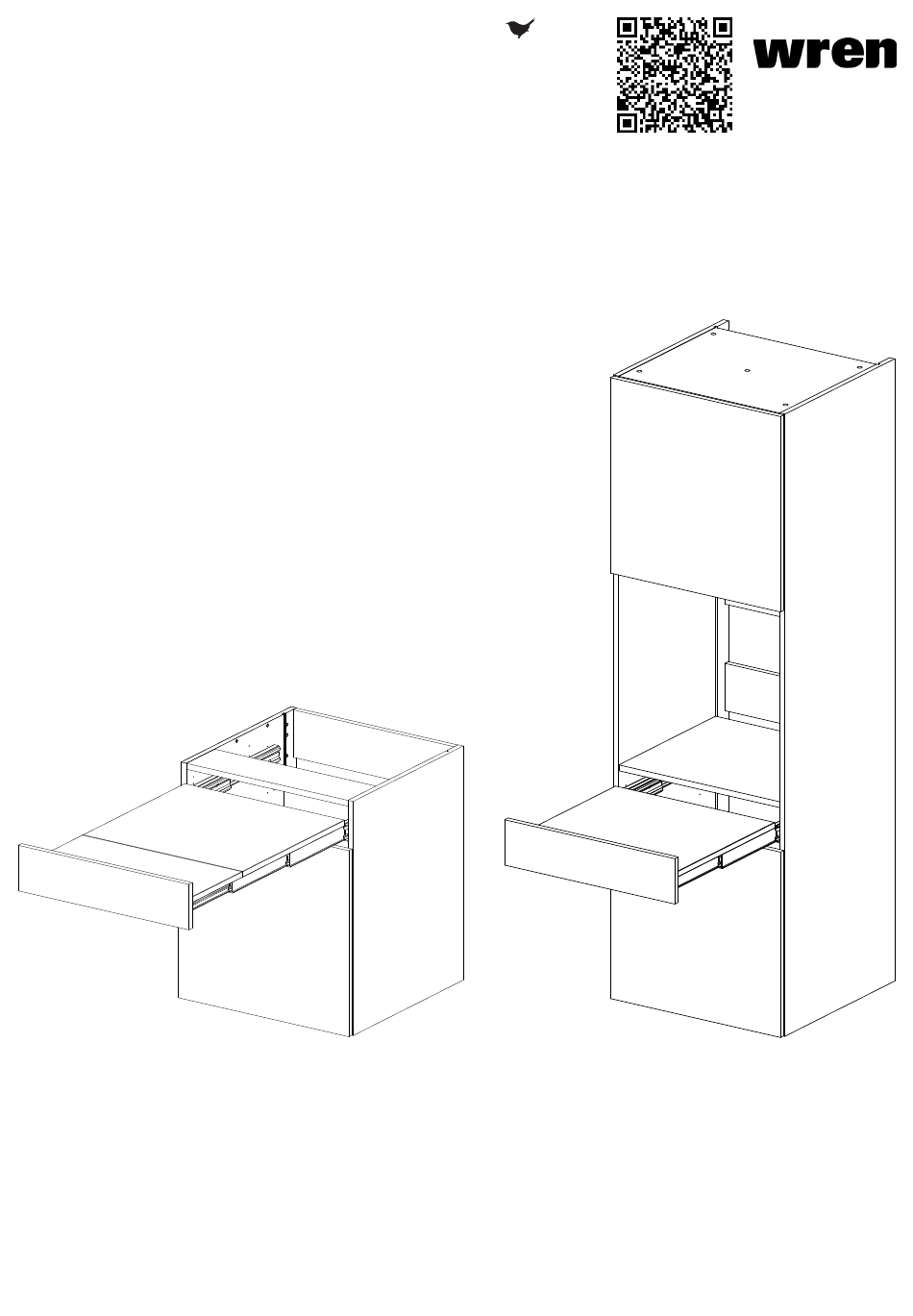

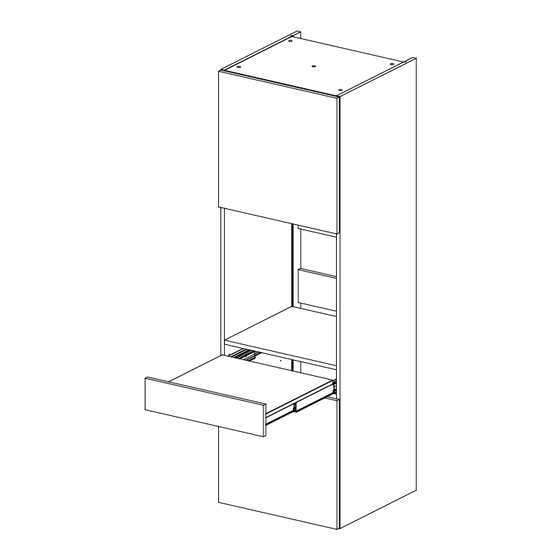

- Page 1 PULL OUT COUNTERTOP Installation Guide Escanear para español Base Tower For Internal Use: 50-WKIN00057_Pullout_Countertop_InstallationGuide_Rev2 Page 1...
- Page 2 PULL OUT COUNTERTOP Installation Guide Runner. Extend the runner to access the screw holes. Align the runner with the positions marked on the end panels below. Secure the runner to the end panel using 4 x 1/4” runner screws per runner.
- Page 3 PULL OUT COUNTERTOP Installation Guide Frontal. Attach the drawer frontal to the runner L brackets using 1 x 5/8” pan head screw per L bracket in the top horizontal hole using the dimensions shown below. Adjust the frontal to align with adjacent frontals by manoeuvring the frontal up or down / left or right ensuring a 1/16”...
- Page 4 PULL OUT COUNTERTOP Installation Guide Screws for fixing to walls are not provided as these vary depending on your wall material and construction. Ensure appropriate fixings for wall constructions are used. Worktop Hinge Countertop. Connect both countertop sections together using countertop hinges.
