Cylinder Dogging

PE80 Series Exit Devices

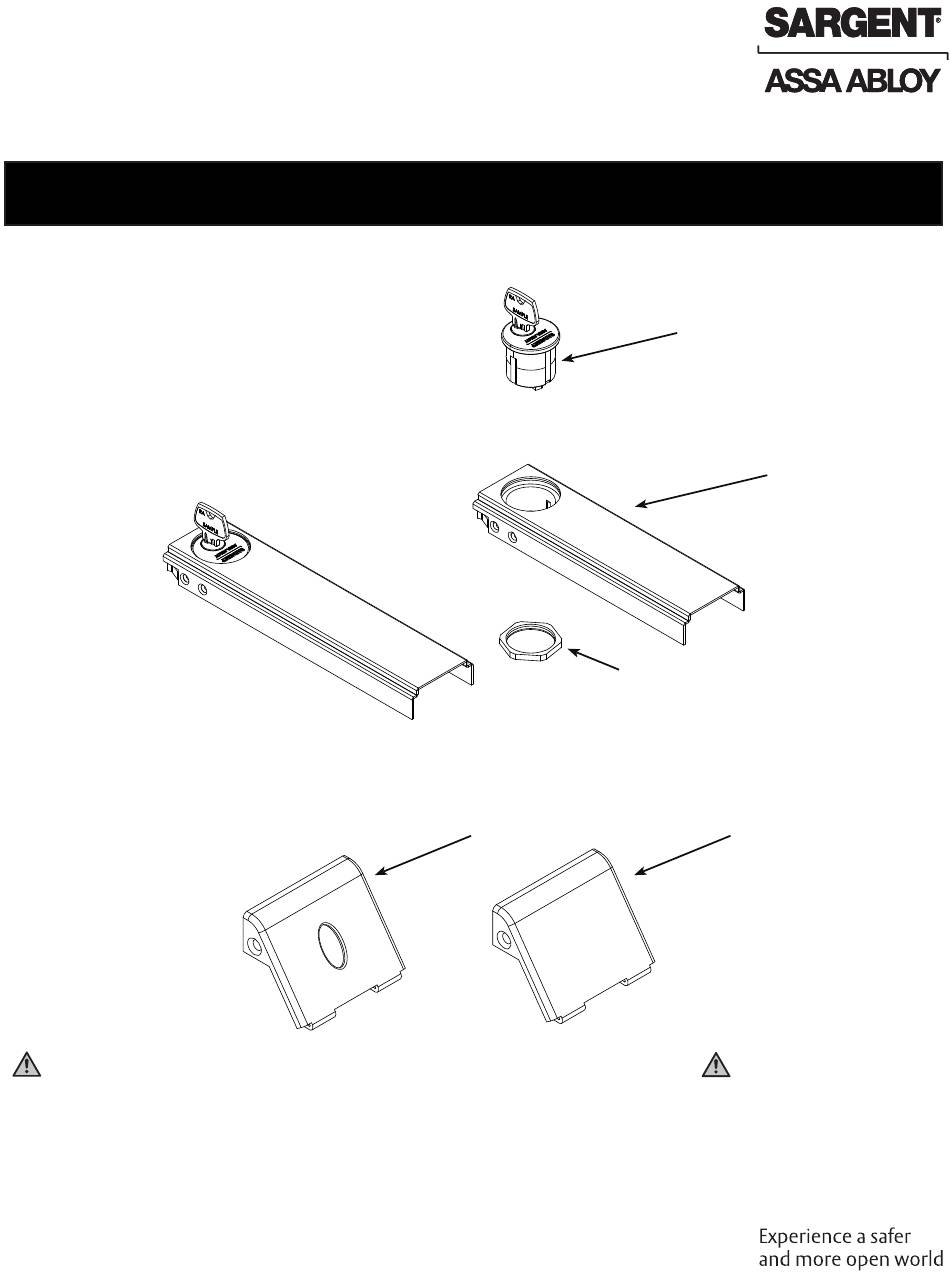

Cylinder Insert View
WARNING
This product can expose you to
lead which is known to the state of
California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.
P65warnings.ca.gov.
1-800-727-5477 • www.sargentlock.com
Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written
permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
Hex Key Dogging Scalp
Cylinder
Insert
Cylinder nut
Blank Scalp
WARNING
Attention Installer: Improper
installation may result in damage
to the product and void the factory
warranty.
A8318-1 5/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sargent PE80 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Assa Abloy Sargent PE80 Series

Summary of Contents for Assa Abloy Sargent PE80 Series

  • Page 1 Installation Instructions Cylinder Dogging PE80 Series Exit Devices Cylinder Cylinder Insert View Insert Cylinder nut Hex Key Dogging Scalp Blank Scalp WARNING WARNING This product can expose you to Attention Installer: Improper lead which is known to the state of installation may result in damage California to cause cancer and birth to the product and void the factory...
  • Page 2 Cylinder Dogging PE80 Series Exit Devices Installation Instructions Remove rail mount. Dogging slope assembly Dogging cam #6 Screws Dogging spring Remove four #6 screws to remove dogging slope assembly. A8318-1 05/23 1-800-727-5477 • www.sargentlock.com Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 3 Cylinder Dogging PE80 Series Exit Devices Installation Instructions Scalp Dogging slope Screws Remove two #4 screws. Rotate and extract scalp. Dogging Screws slope Blank Scalp Install the new scalp. Install two #4 screws. A8318-1 05/23 1-800-727-5477 • www.sargentlock.com Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 4 Cylinder Dogging PE80 Series Exit Devices Installation Instructions Dogging slope Dogging Dogging spring #6 Screws Carrier Carrier Place dogging cam in carrier hole. Place dogging spring outside of dogging slope. Insert both on the carrier. Install four #6 screws. A8318-1 05/23 1-800-727-5477 •...
  • Page 5 Cylinder Dogging PE80 Series Exit Devices Installation Instructions Rail mount Dogging Insert Carrier Slide dogging insert into rail mount. Slide carrier into rail mount. Test the function by (A) compressing the bar, and (B) Test the function by (A) turning the key counter- turning the key clockwise to engage dogging.
  • Page 6 Cylinder Dogging PE80 Series Exit Devices Installation Instructions A8318-1 05/23 1-800-727-5477 • www.sargentlock.com Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
  • Page 7 Cylinder Dogging PE80 Series Exit Devices Installation Instructions A8318-1 05/23 1-800-727-5477 • www.sargentlock.com Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
  • Page 8 1-800-727-5477 • www.sargentlock.com Copyright © 2023, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents. A8318-1 5/23...
