Assa Abloy INTERLOCK P84166 Installation Instructions

TWIN BOLT LOCK 18MM THROW -
BI-FOLD DOORS
I N S T A L L A T I O N I NS TR U C TI O NS FO R P 8 4 16 7 , P 8 45 0 0 , P B3 0 3 00 2 7,
P8 4 1 6 6 A N D PB 304 2227 WITH UN O A ND A R IA B I- F O LD HA ND LES

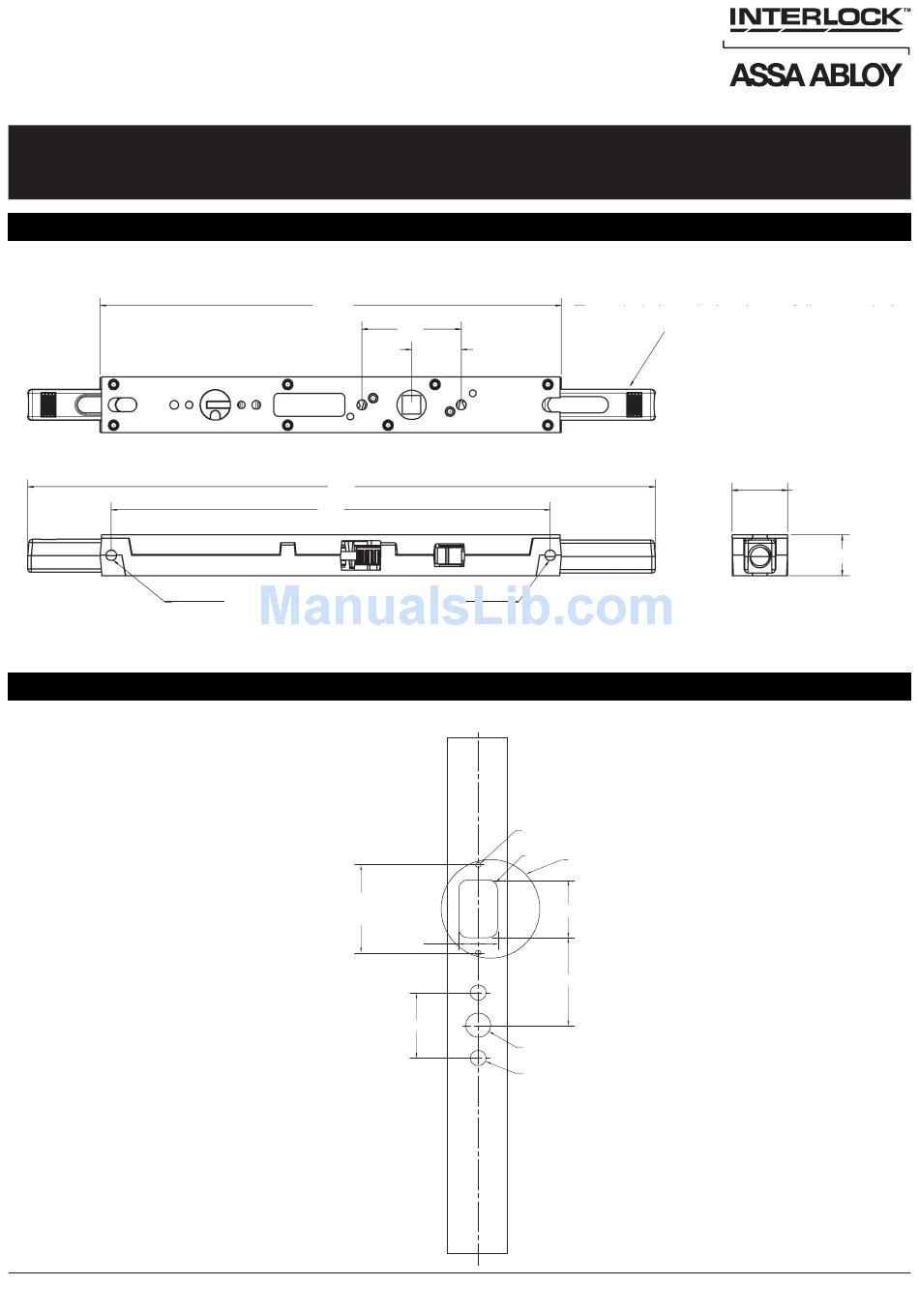

Twin Bolt Lock Overall Dimensions:
Figure 1. Twin Bolt Lock Dimensions
Routing Details:
Figure 2. Face Routing
Page 1 of 3
Part #: 077226
199.7
43
273
190
M5 holes for possible side fixing to extrusion
58.1 (Low Profile Aria and Uno)
26
43
ASSA ABLOY New Zealand Limited, 6 Armstrong Road, Albany,
North Shore City 0632, New Zealand, Tel 09 415 8031, Fax 0800 478 297
Threaded shoot bolts shown fully extended
21.5
Ø3.3
R5
Detail not required for
Non Locking configuration
38
58
Ø16
Ø10
32 (max unthrown)
24 (max thrown)
17.75 (max)
2-02/08NZ
