- Page 1 Event Spot DL/WW MKII User Manual Order codes: LEDJ232 - WW (Black Housing) LEDJ232A - WW (White Housing) LEDJ233 - DL (Black Housing) LEDJ233A - DL (White Housing)
-
Page 2: Safety Advice

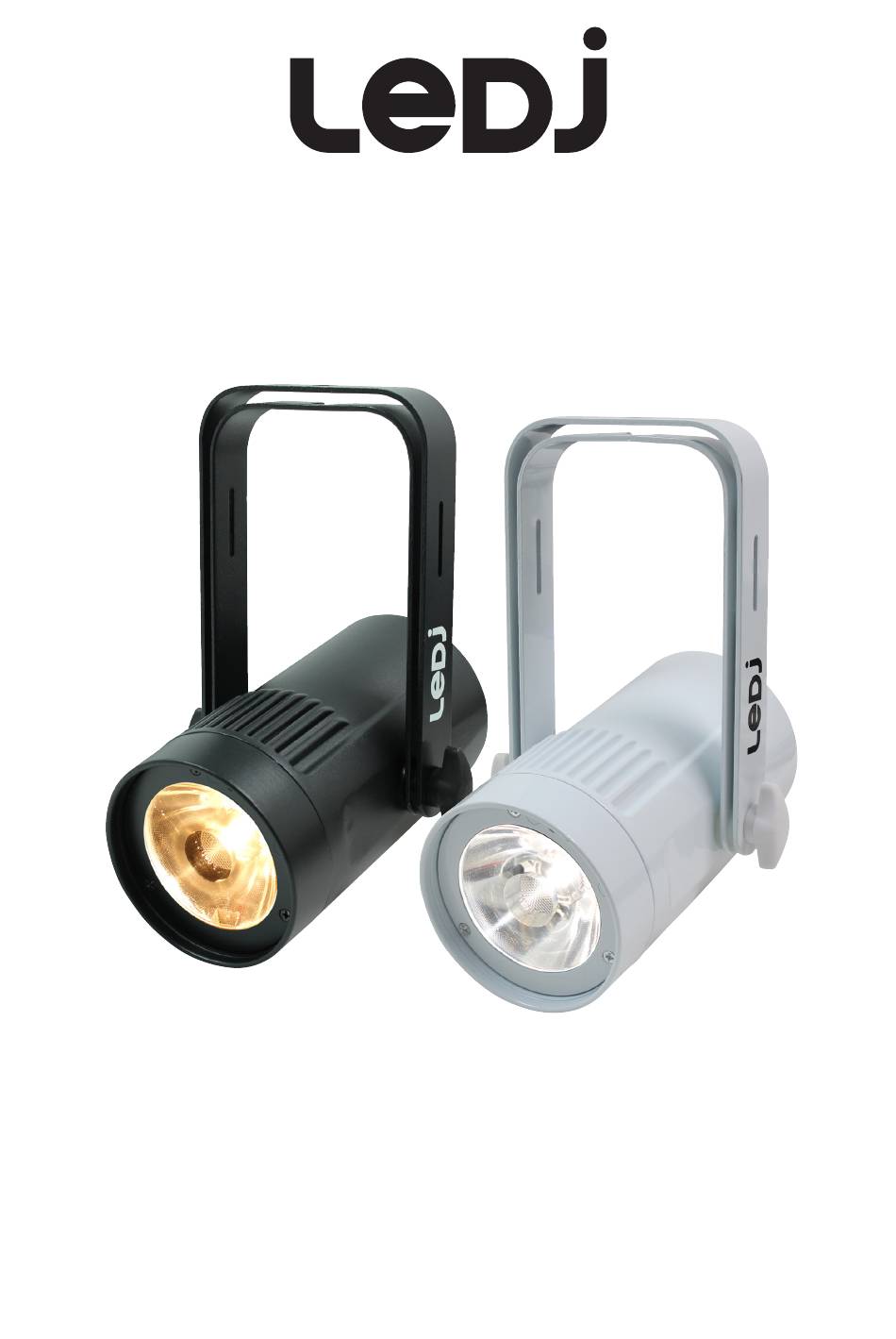

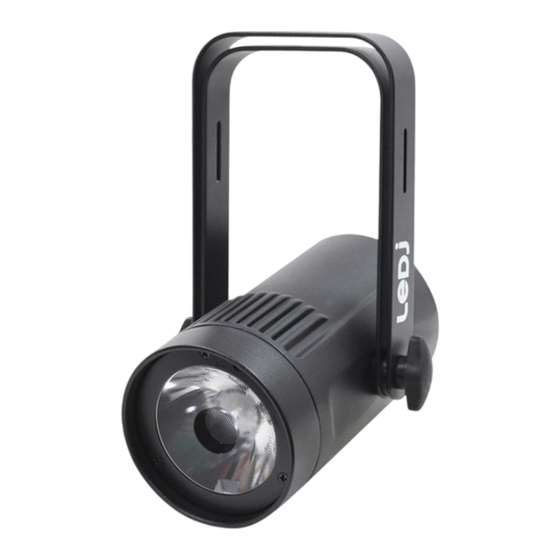

Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •... - Page 3 Product overview & technical specifications Event Spot DL/WW The Event Spot compact LED Pinspots are powered by a 15W LED that has the brightness and output of a 100W halogen lamp. Featuring a 4° beam angle and supplied with two optional lenses (10° and 45°) the fixture is easily directed at displays for highlighting and pinspotting, it can also be used to create mood lighting on a restaurant table, or to spotlight displays in store.
-
Page 4: Technical Specifications
Technical specifications POWER POWER INPUT OUTPUT 100-240V~50/60Hz INPUT OUTPUT MENU ENTER DOWN In the box: 1 x fixture, 01 - Earth point 1 x 10° frost lens, 02 - LCD display 06 - PowerCON input 1 x 45° frost lens, 03 - Function buttons 07 - PowerCON output 1 x power cable... - Page 5 Operating instructions DMX ADDR DMX MODE DMX address setting ADDR DMX ADDR CHANNEL CH 01 CHANNEL DMX channel mode CHANNEL CH 02 Slave mode SLAVE MODE MENU IR. REMOTE IR remote on/off IR. REMOTE IR. REMOTE DIMMER RESP_01 Dimmer response DIMMER DIMMER RESP_02...
-
Page 6: Master/Slave Mode
Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. - Page 7 Operating instructions Manual dimming mode: To access the manual dimming mode, press the “MENU” button on the rear of the unit to show “Manual” on the LCD display. The unit is now in manual dimming mode. Press the “ENTER” button and use the “UP”...
-
Page 8: Important Notes
Operating instructions Optional IR remote functions: Button functions: 01 - Blackout DIMMING 02 - To set the brightness of the LED either select 20%, 50% or 100% or alternatively 100% you can use the ‘+’ and ‘-’ buttons STROBE 03 - Flash off 100% 04 - To set the flash speed of the LED either select 20%, 50% or 100% or alternatively... -
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Pin Configuration Do not connect the cables shield conductor to the ground lug or 3-Pin 5-Pin allow the shield conductor to come in contact with the XLRs Pin 1 - Ground outer casing. -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. - Page 12 www.prolight.co.uk Event Spot DL/WW User Manual...
