Scene Director 24
Dimmer Console
User Manual
Order code: LEDJ325

Advertisement

loading
Need help?

Need help?

Do you have a question about the Scene Director 24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ledj Scene Director 24

Summary of Contents for Ledj Scene Director 24

  • Page 1 Scene Director 24 Dimmer Console User Manual Order code: LEDJ325...

  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...

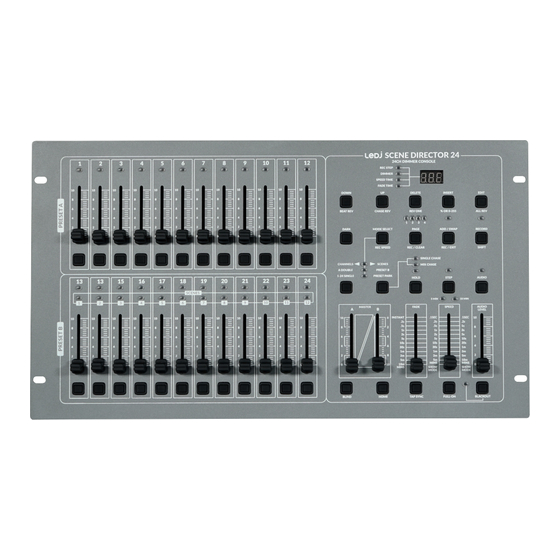

  • Page 3 Product overview & technical specifications Scene Director 24 Dimmer Console The Scene Director 24 dimmer console from LEDJ allows up to 4,600 programmable scenes and 48 programmable chases (all password protected) and up to 1,000 scenes per chase, you can rest easy that your unique set-up is kept secure while it runs 12 chases simultaneously.

  • Page 4: Technical Specifications

    09 - Audio input In the box: 05 - Midi in 10 - Remote input 1 x controller and 1 x power adaptor See the following page which explains all front panel functions www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 5 When playing a chase if you hold down the ‘BLIND’ button and at the same time press the ‘FLASH’ button of the scene you wish to skip then the program will continue to play but will miss the scene you have selected. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 6 ‘REC/EXIT’ is used to quit edit mode. 24 - RECORD/SHIFT button ‘RECORD’ is used to activate record mode or to program scene. ‘SHIFT’ is used to change the operation of buttons with multiple functions. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 7 33 - DOWN / BEAT REV button This ‘DOWN’ button is used to lower the intensity of the channel during scene editing. The ‘BEAT REV’ is to reverse the direction of a chase programme with a regular beat. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 8 8. Release both buttons. The LED of the ‘RECORD’ turns off. You have left the Record mode. To cancel the process of changing the record code: Press ‘RECORD’ and ‘EXIT’ simultaneously. The change process is cancelled. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 9 5. Repeat steps 4 and 5 until all channels 1-16 have been programmed. 6. Press ‘PAGE’ until the LED at ‘PAGE 1’ is lit. 7. Press ‘FLASH 15’ while keeping ‘RECORD’ pressed. All record LEDs flash once. The program is saved. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 10 2. Record one or multiple scenes. 3. If you are not satisfied with one or more scenes, press ‘REC CLEAR’ while keeping ‘RECORD’ pressed. All LEDs light up. All scenes in the memory are deleted. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 11 5. Press the respective ‘FLASH’ until you are satisfied with your new scene. 6. Repeat steps 2, 3, 4 and 5 until all steps have been edited. 7. Exit the Edit mode. To do so, press ‘REC EXIT’ while keeping ‘RECORD’ pressed. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 12 D - Setting a standard beat ‘Audio’ mode is disabled 1. To select ‘CHANNELS/SCENES’ , press ‘MODE SELECT’. 2. Select the desired programme. 3. You can adjust the speed by pressing ‘TAP SYNC’ twice. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 13 Note: During the data exchange, no other functions are available. The functions are automatically available again as soon as the data exchange is complete. Note: The data exchange is interrupted as soon as errors occur or the device is switched off. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 14 Turns programmes 1-48 on or off 70-93 Channel intensity Activates channel 1-2 Full on Dark Hold Turns audio on or off CHANNELS / SCENES ‘Double preset’ mode ‘Single preset’ mode Step Blackout www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 15 Press ‘BEAT REV’. To reverse the chase direction of a particular programme: 1. Keep ‘REC ONE’ pressed. 2. Additionally press the ‘FLASH’ button of the corresponding programme. 3. Release both buttons simultaneously. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 16 All programmes are controlled with the same speed controller or the speed of each programme can be controlled individually. 1. Press ‘MODE SELECT’ to select ‘CHANNELS/SCENES’ . 2. Press ‘PARK’ and use ‘MIX CHASE’ to select the ‘Single Chase’ mode. A red LED lights up. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 17 1. Change to the ‘Double Preset’ mode. 2. Set faders 1-6 to the highest position, as well as 19-24. 3. Set ‘MASTER A’ and ‘MASTER B’ to the same value. You now have a scene. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...

  • Page 18: Dmx Setup

    CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...
  • Page 19 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Scene Director 24 Dimmer Console User Manual...

  • Page 20: Weee Notice
