Page 1: User Manual

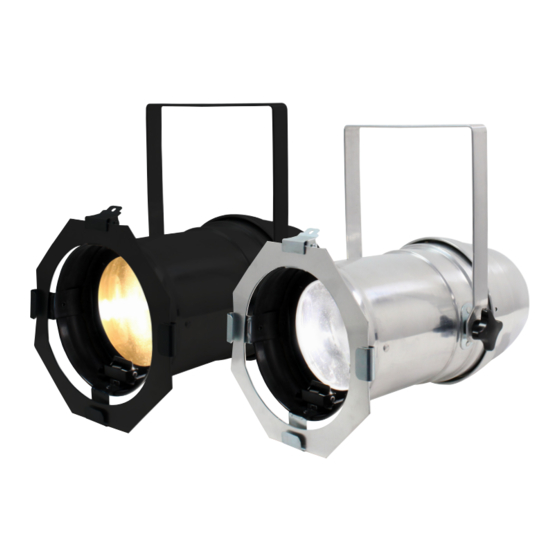

Stage Par CZ 100 User Manual Order codes: LEDJ190 - 3000K Black Housing LEDJ190P - 3000K Polished Housing LEDJ191 - 5700K Black Housing LEDJ191P - 5700K Polished Housing... -
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Stage Par CZ 100 User Manual... - Page 3 Fuse T2A 250V 04 - 5-Pin XLR output Dimensions 405 x 302 x 444mm 05 - PowerCON input In the box: 1 x fixture, Weight 3.3kg 06 - PowerCON output 1 x filter frame, Order codes LEDJ190 - 3000K Black Housing 07 - Fuse T2A 250V 1 x power cable LEDJ190P - 3000K Polished Housing 08 - Earth point LEDJ191 - 5700K Black Housing & 1 x user manual LEDJ191P - 5700K Polished Housing 09 - Safety eye www.prolight.co.uk Stage Par CZ 100 User Manual...
- Page 4 Product overview & technical specifications 237mm 419mm 302mm 444mm Beam angle (lens) adjustment: To adjust the beam angle squeeze the spring loaded latch inside the front nose of the par can. The latch can then be moved forwards or backwards smoothly, allowing the operator to select the beam angle required between 15° and 32° using the markers provided as a guide. Release the spring loaded latch once the beam angle has been selected to prevent any further movement. www.prolight.co.uk Stage Par CZ 100 User Manual...
- Page 5 H A L O P r o F LED/Halogen profiles L E d L E d LED backlight O F F d I S P d I S P Display invert d S I p www.prolight.co.uk Stage Par CZ 100 User Manual...
-
Page 6: Operating Instructions
- - - Fixture temperature F H r s - - - - Fixture hours F A C t Reset factory settings y E S U E r U - - - Software version www.prolight.co.uk Stage Par CZ 100 User Manual... - Page 7 DMX channel mode: To access the DMX channel mode, press the “MENU” button and use the “UP” and “DOWN” buttons on CHNd the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose one of the 1/2 or 3 DMX channel modes. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. DMX channel modes: Channel Value Function 000-255 Master dimmer (0-100%) 000-255 Master dimmer fine 000-031 No function 032-063 Open 064-095 Strobe (slow-fast) 096-127 Open 128-159 Pulse strobe (slow-fast) 160-191 Open 192-223 Random strobe (slow-fast) 224-255 Open www.prolight.co.uk Stage Par CZ 100 User Manual...
- Page 8 To access the LED backlight setting, press the “MENU” button and use the “UP” and “DOWN” buttons on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between or . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Display invert setting: To access the display invert setting, press the “MENU” button and use the “UP” and “DOWN” buttons on dIsp the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” dISP dSIP and “DOWN” buttons to choose between or . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Manual mode: NANU To access manual mode, press the “MENU” button on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between UHIt StrO (White dimmer) or (Strobe). Press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Stage Par CZ 100 User Manual...
-
Page 9: Fixture Temperature
Fixture temperature: To access the fixtures temperature, press the “MENU” button and use the “UP” and “DOWN” buttons on tENp the rear of the unit to show on the LED display. Now press the “ENTER” button. The unit will now display the fixtures temperature. To exit out of any of the above options, press the “MENU” button. Fixture hours: To access the fixtures usage time, press the “MENU” button and use the “UP” and “DOWN” buttons on FHrS the rear of the unit to show on the LED display. Now press the “ENTER” button. The unit will now display the fixtures usage time (hours). To exit out of any of the above options, press the “MENU” button. Reset factory settings: To reset factory settings, press the “MENU” button and use the “UP” and “DOWN” buttons on FACt the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose . Press the “ENTER” button to confirm the setting. The fixture will reset to factory default settings. To exit out of any of the above options, press the “MENU” button. Software version: To access the fixtures software version, press the “MENU” button and use the “UP” and “DOWN” buttons on the rear of the unit to show on the LED display. Now press the “ENTER” button. The unit will now display the fixtures software version. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Stage Par CZ 100 User Manual... -
Page 10: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Stage Par CZ 100 User Manual... -
Page 11: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Stage Par CZ 100 User Manual... -
Page 12: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Stage Par CZ 100 User Manual...
