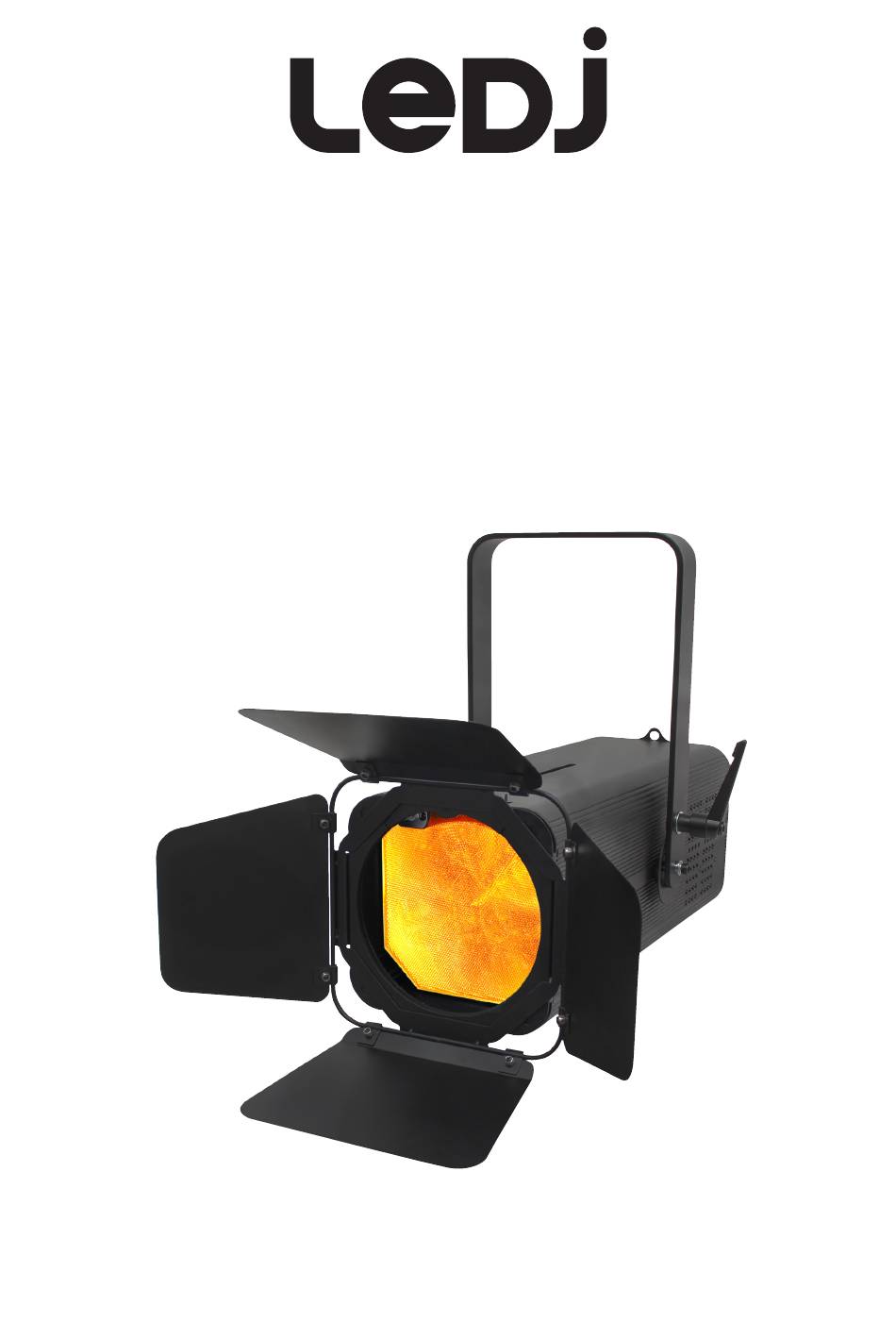

Artisan 2000
RGBWA Fresnel
User Manual
Order code: LEDJ333

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Artisan 2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ledj Artisan 2000

  • Page 1 Artisan 2000 RGBWA Fresnel User Manual Order code: LEDJ333...
  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 3 Product overview & technical specifications Artisan 2000 RGBWA Fresnel The Artisan 2000 RGBWA Fresnel is ideal for schools, churches and stages and makes an ideal replacement for tungsten fixtures. Control of the unit is facilitated via a 4 button menu and LCD display, whilst the beam angle can be manually adjusted.
  • Page 4: Technical Specifications

    Technical specifications 300mm 195mm 167mm 482mm 40mm 220mm 190mm www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 5 06 - 5-Pin DMX input 13 - Hanging bracket adjustable knob 1 x power cable 07 - 5-Pin DMX output 14 - Carry handle & 1 x user manual 08 - PowerCON input 15 - Barn doors www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 6 STROB:99 CLR MACS Colour/macro mode COLOR: 00 CLR MACS CLR MACS COLOR: 26 SPEED:00 CLR MACS CLR MACS COLOR: 44 SPEED:99 AUTO RUN SPEED:00 AUTO RUN Auto run mode FAD+SNAP AUTO RUN SPEED:99 www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 7 STATIC OTHER IR : ON IR setting OTHER IR : OFF OTHER BLGT: ON Backlight setting OTHER BLGT:OFF OTHER OTHER Wireless IR: ON WIFI: ON setting OTHER WIFI:OFF Reset OTHER factory SYSRESET settings www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 8 Channel Value Function 000-255 Red dimmer (0-100%) 000-255 Green dimmer (0-100%) 000-255 Blue dimmer (0-100%) 000-255 White dimmer (0-100%) 000-255 Amber dimmer (0-100%) 000-189 Master dimmer (0-100%) 190-250 Strobe (slow-fast) 251-255 Full on www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 9 Value: 000 - 255 (000 = LED off, 255 = high brightness) Value: 00 - 99 (00 = no strobe, 99 = fast strobe speed) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 10: Master/Slave Mode

    Now use the “UP” and “DOWN” buttons on the rear of the unit to select between “HALOGEN” and “LED”. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 11: Reset Factory Settings

    Press the “ENTER” button twice to show “SYSRESET” on the LCD display. Press both the “UP” and “DOWN” buttons together and the unit will reset to factory settings. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 12: Ir Remote Functions

    D - White E - Amber 09 - Adjusts the colour macros, strobe speed, auto run speed, macro speed mode, DMX address, DMX channel mode and manual dimming modes 10 - Sets the DMX address www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 13 3 seconds until the LED illuminates white. This indicates the wireless memory has been cleared. If the indicator on the receiving units flashes red quickly this indicates that the signal from the transmitting fixture has been lost. www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 14: Dmx Setup

    3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 15: Line Termination

    3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
  • Page 16 Please note: Caution should be used when power linking other fixtures to the Artisan 2000 Dual White Fresnel as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.
  • Page 17: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Artisan 2000 RGBWA Fresnel User Manual...
