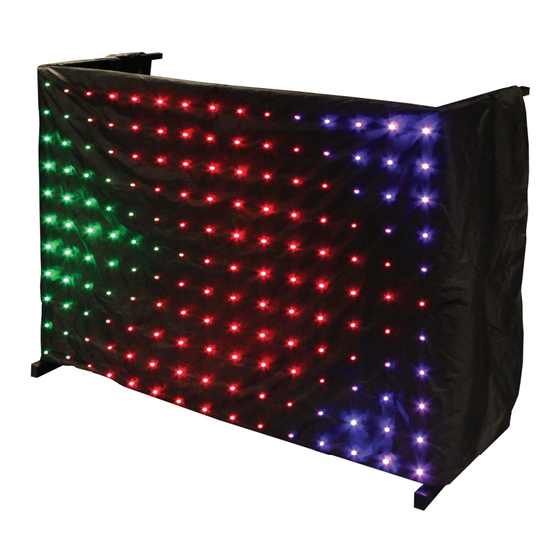

- Page 1 LEDJ Tri LED DJ Skirt Matrix Cloth - STAR17 LEDJ Tri LED DJ Skirt Matrix Cloth - STAR17 USER MANUAL...
- Page 2 LEDJ Tri LED DJ Skirt Matrix Cloth Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 LEDJ Tri LED DJ Skirt Matrix Cloth Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 LEDJ Tri LED DJ Skirt Matrix Cloth Technical Specifications You should find inside the carton the following items: 1, Tri LED DJ Skirt Matrix Cloth 2, Instruction manual 3, Controller 4, SD card Technical Specifications: DMX channels: 2 DMX, sound active and auto run modes...
- Page 5 Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the cloth and each cloth independently. The Tri LED DJ Skirt Matrix Cloth uses 2 channels of control.
- Page 6 DATA Cable (DMX cable) requirements (for DMX operation): • The LEDJ Tri LED DJ Skirt Matrix Cloth can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 7 LEDJ Tri LED DJ Skirt Matrix Cloth DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 8 LEDJ Tri LED DJ Skirt Matrix Cloth Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position...
