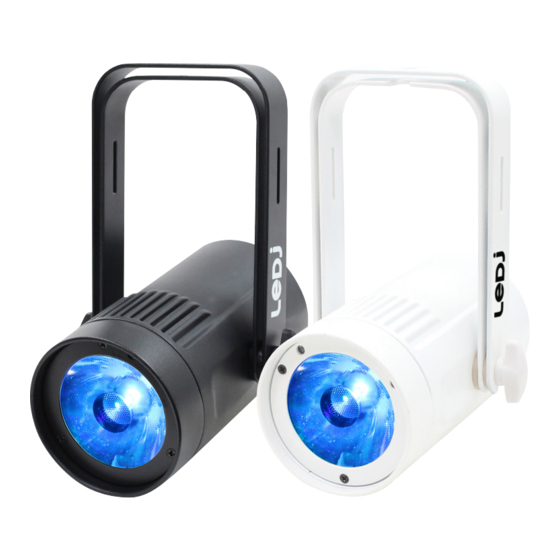

- Page 1 Event Spot RGBW MKII User Manual Order codes: LEDJ234 - Black Housing LEDJ234A - White Housing...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Event Spot RGBW MKII User Manual... - Page 3 Power consumption Power supply 100~240V, 50/60Hz 1090 Fuse T0.5A 250V Dimensions 203 x 135 x 173mm 4° 10° 45° Weight 1.2kg Order code LEDJ234 - Black Housing LEDJ234A - White Housing 135mm 173mm www.prolight.co.uk Event Spot RGBW MKII User Manual...
-
Page 4: Technical Specifications
1 x power cable 04 - 3-Pin DMX input trailing socket 08 - Hanging bracket & 1 x user manual 05 - 3-Pin DMX output trailing socket 09 - Hanging bracket adjustable knob www.prolight.co.uk Event Spot RGBW MKII User Manual... - Page 5 SP 99 F 99 3.CHANG4 SP 00 F 00 4 colour change mode 3.CHANG4 3.CHANG4 SP 99 F 99 4. FADE SP 00 F 00 Colour fade mode 4. FADE 4. FADE SP 99 F 99 www.prolight.co.uk Event Spot RGBW MKII User Manual...
-
Page 6: Sound Sensitivity
DIMMER MENU RESP_02 Password Calibration password unlock Password Password: 050 Password Red fine adjustment Green Green fine adjustment Calibrate Green Green Blue Blue fine adjustment Blue Blue White White fine adjustment White White www.prolight.co.uk Event Spot RGBW MKII User Manual... -
Page 7: Master/Slave Mode
To set the other units in slave mode, press the “MENU” button on the rear of the unit to show “SLAVE MODE” on the LCD display. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Event Spot RGBW MKII User Manual... - Page 8 Press the “ENTER” button to confirm the setting. (00 = LED off/strobe off, 99 = LED at full brightness/strobe fast) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Event Spot RGBW MKII User Manual...
-
Page 9: Important Notes
• If you do not press the “DMX MODE” button after you have changed the DMX address when you power down the fixture it will lose the address you have set www.prolight.co.uk Event Spot RGBW MKII User Manual... -
Page 10: Dmx Setup
3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Event Spot RGBW MKII User Manual... -
Page 11: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Event Spot RGBW MKII User Manual... -
Page 12: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Event Spot RGBW MKII User Manual...
