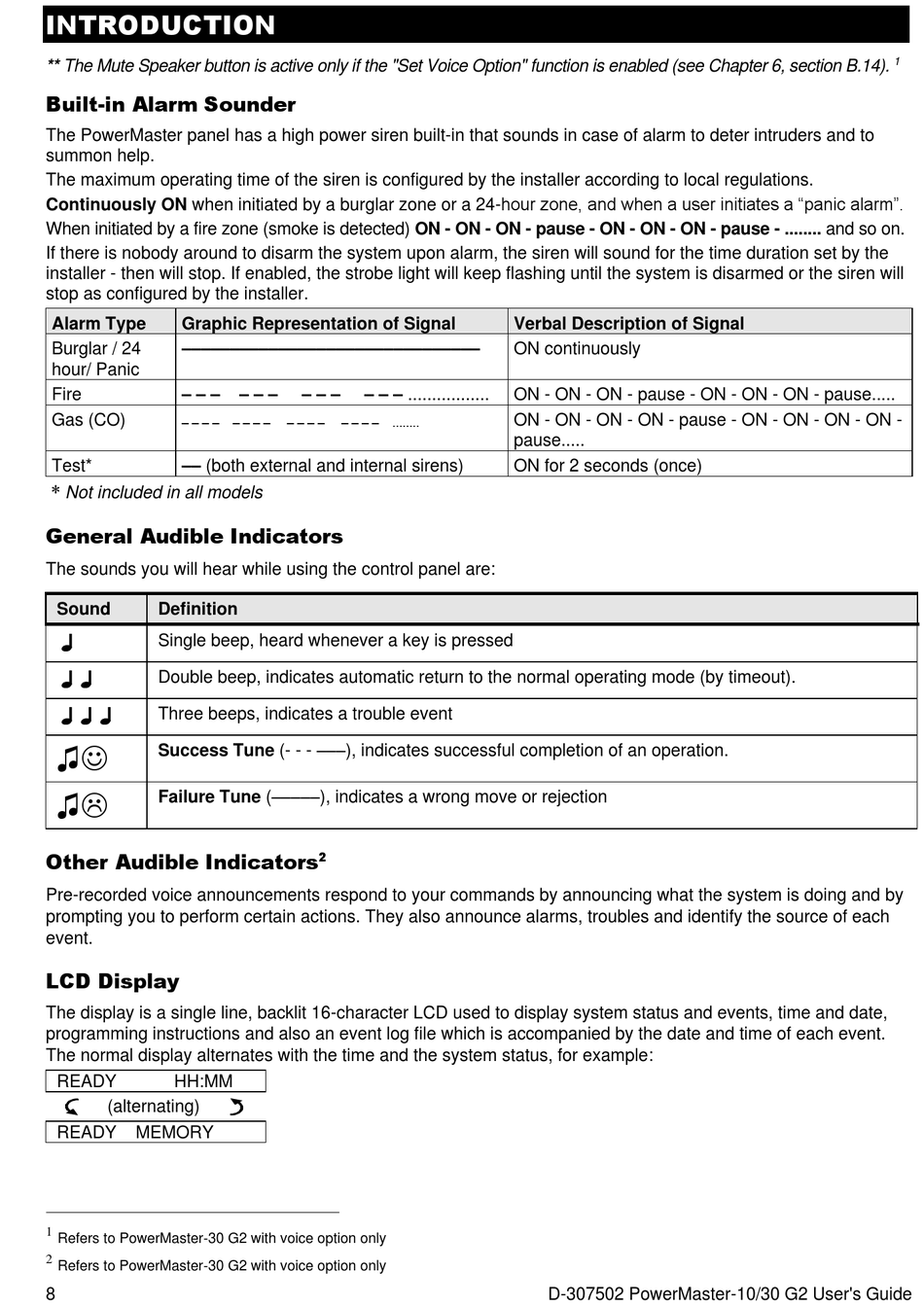

INTRODUCTION
** The Mute Speaker button is active only if the "Set Voice Option" function is enabled (see Chapter 6, section B.14).
Built-in Alarm Sounder
The PowerMaster panel has a high power siren built-in that sounds in case of alarm to deter intruders and to
summon help.
The maximum operating time of the siren is configured by the installer according to local regulations.
Continuously ON when initiated by a burglar zone or a 24-hour zone, and when a user initiates a "panic alarm".
When initiated by a fire zone (smoke is detected) ON - ON - ON - pause - ON - ON - ON - pause - ........ and so on.
If there is nobody around to disarm the system upon alarm, the siren will sound for the time duration set by the
installer - then will stop. If enabled, the strobe light will keep flashing until the system is disarmed or the siren will
stop as configured by the installer.
Alarm Type
Graphic Representation of Signal
–––––––––––––––––––––––––––––––
Burglar / 24
hour/ Panic
– – –
Fire
Gas (CO)
– – – –
–– (both external and internal sirens)
Test*
*
Not included in all models
General Audible Indicators
The sounds you will hear while using the control panel are:
Sound
Definition
Single beep, heard whenever a key is pressed
Double beep, indicates automatic return to the normal operating mode (by timeout).
Three beeps, indicates a trouble event
Success Tune (- - - –––), indicates successful completion of an operation.
♫☺
♫
Failure Tune (–––––), indicates a wrong move or rejection
Other Audible Indicators
Pre-recorded voice announcements respond to your commands by announcing what the system is doing and by
prompting you to perform certain actions. They also announce alarms, troubles and identify the source of each
event.
LCD Display
The display is a single line, backlit 16-character LCD used to display system status and events, time and date,
programming instructions and also an event log file which is accompanied by the date and time of each event.
The normal display alternates with the time and the system status, for example:
READY
HH:MM
(alternating)
READY
MEMORY
1
Refers to PowerMaster-30 G2 with voice option only
2
Refers to PowerMaster-30 G2 with voice option only
8
– – –
– – –
– – – .................
– – – –
– – – –
– – – –
........
2
Verbal Description of Signal
ON continuously
ON - ON - ON - pause - ON - ON - ON - pause.....
ON - ON - ON - ON - pause - ON - ON - ON - ON -
pause.....
ON for 2 seconds (once)
D-307502 PowerMaster-10/30 G2 User's Guide
