EVENT REPORTING & CONTROL BY TELEPHONE AND SMS

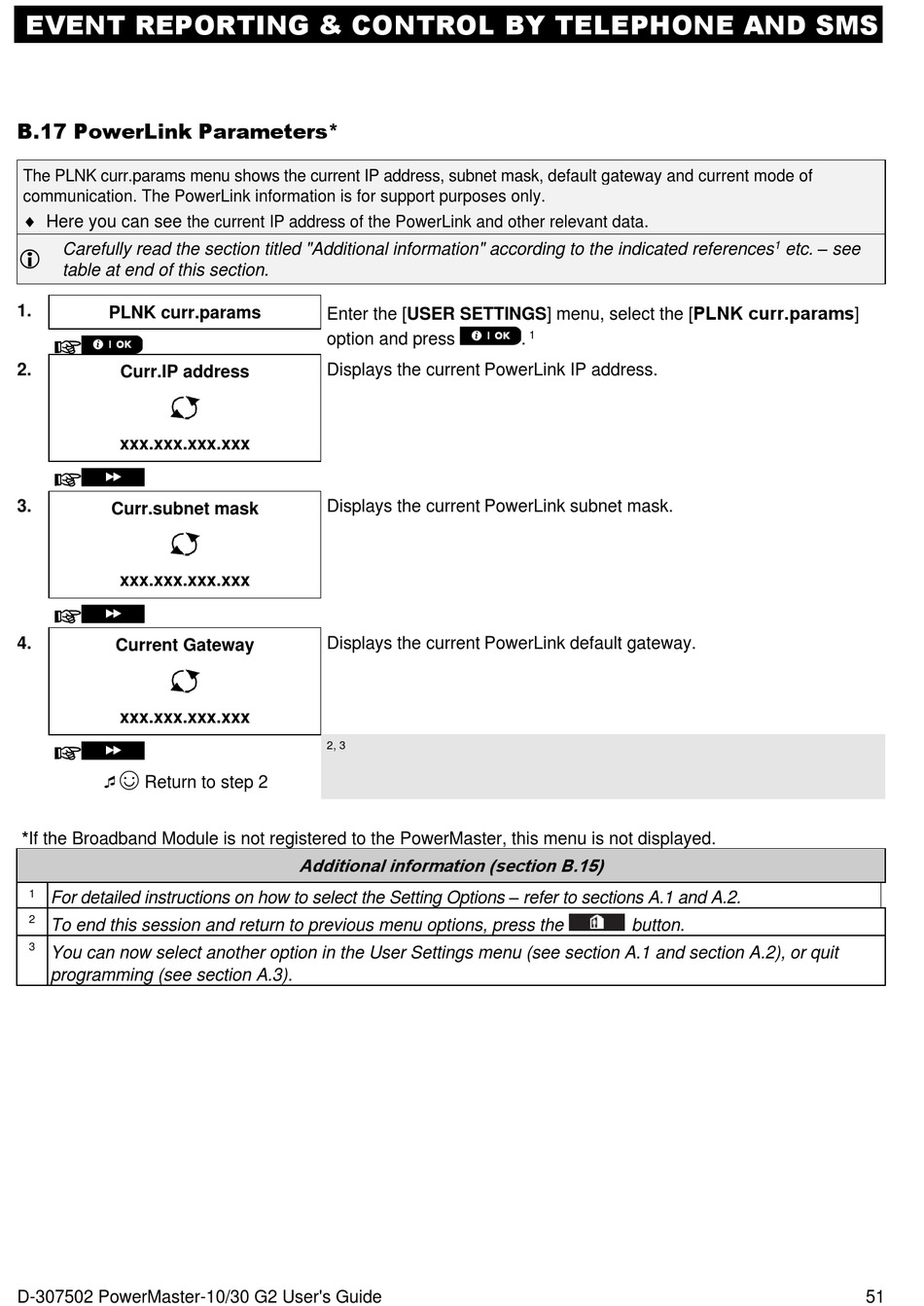

B.17 PowerLink Parameters*
The PLNK curr.params menu shows the current IP address, subnet mask, default gateway and current mode of
communication. The PowerLink information is for support purposes only.
 Here you can see
the current IP address of the PowerLink and other relevant data
Carefully read the section titled "Additional information" according to the indicated references

table at end of this section.
1.
PLNK curr.params
2.
Curr.IP address
xxx.xxx.xxx.xxx
3.
Curr.subnet mask
xxx.xxx.xxx.xxx
4.
Current Gateway
xxx.xxx.xxx.xxx
☺

Return to step 2
*If the Broadband Module is not registered to the PowerMaster, this menu is not displayed.
For detailed instructions on how to select the Setting Options – refer to sections A.1 and A.2.
1
2
To end this session and return to previous menu options, press the
3
You can now select another option in the User Settings menu (see section A.1 and section A.2), or quit
programming (see section A.3).
D-307502 PowerMaster-10/30 G2 User's Guide
Enter the [USER SETTINGS] menu, select the [
option and press
Displays the current PowerLink IP address.
Displays the current PowerLink subnet mask.
Displays the current PowerLink default gateway.
2, 3
Additional information (section B.15)
.
PLNK curr.params
1
.
button.
etc. – see
1
]
51
