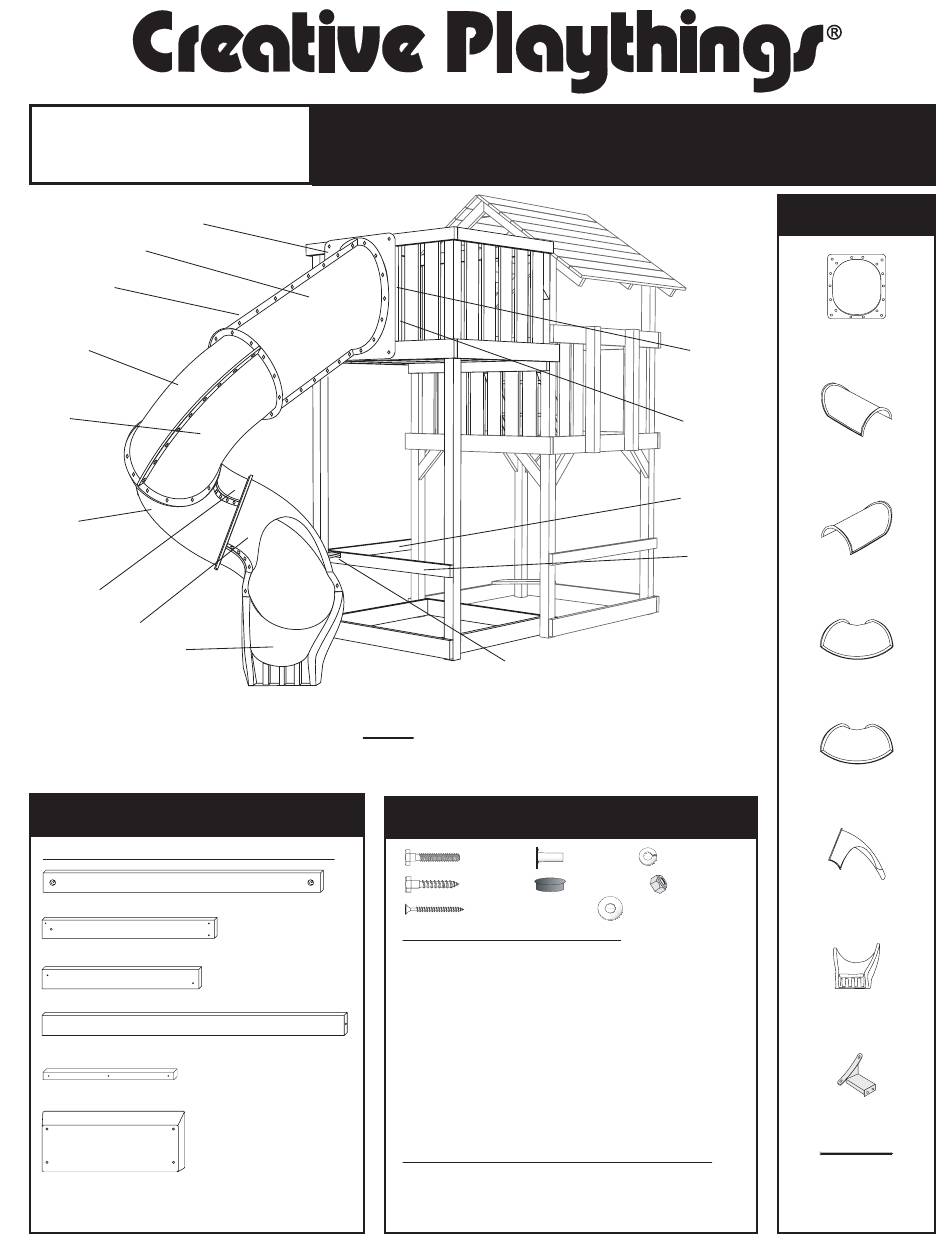

SH902-810 & SH902-814
ASSembly mAnuAl
A
B
C
D
E
E
D
F
G
All hardware on this set is specially coated for corrosion resistance. if non-Creative
Playthings hardware is used, it muSt be galvanized or stainless steel.
Please review your original Playset Assembly Manual and your Owners Manual before as-
Wooden PArtS
SH902-810&814
Spiral Slide - Skybox iii - SP
J
1 31524-102 Side Safety Rail 2 x 4 x 47-1/2"
K 2 32457-102 Side Support 2 x 4 x 31-1/2"
L
2 32458-102 Side Filler 2 x 4 x 27"
M 1 32459-102 End Safety Rail 2 x 4 x 50"
N* 1 32473-102 Bottom Filler 2 x 2 x 22-1/2"
O* 1 15133-400 Slide Mount - Green
P* 1 50351-701 Hardware Bag - Spiral Slide
Q* 1 15063-1020 Vendor Hardware Pack
Pine Skybox SPirAl Slide
sembly of your Spiral Slide.
50351-701 Hardware - Spiral Slide
8
17001-105
22 12002-206
8
12017-206
3
17003-411
2
17003-611
1
17003-811
3
17003-1211 Hex Bolt 5/16 x 3"
14 17020-113
4
17036-602
8
17036-1002 Lag Screw 5/16 x 2-1/2"
2
17036-2202 Lag Screw 5/16 x 5-1/2"
2
15081-704
1
14100-400
15063-1020 Vendor Hardware Pack - Spiral Slide
96 12002-206
48 12017-206
48 12003-411
48 12052-106
H
HArdWAre
Hex Bolt
Weld Nut
Lag Screw
Hole Cap
Flat Washer
Wood Screw
Weld Nut 5/16-18
Flat Washer 5/16"
Lock Washer 5/16"
Hex Bolt 5/16 x 1"
Hex Bolt 5/16 x 1-1/2"
Hex Bolt 5/16 x 2"
Wood Screw #10 x 2-1/2"
Lag Screw 5/16 x 1-1/2"
1" Hole Cap - Brown
6" L-Brace*
Flat Washer 5/16"
Lock Washer 5/16"
Hex Bolt 5/16" x 1"
Lock Nut 5/16"
Slide PArtS
A-(1) Mounting Plate
L
P/N 15064-1180-Yellow
P/N 15064-1480-Green
K
B-(1) Left Entrance
P/N 15064-1175-Yellow
P/N 15064-1475-Green
J
M
C-(1) Right Entrance
P/N 15064-1174-Yellow
P/N 15064-1474-Green
D-(2) Top Elbow
P/N 15064-1177-Yellow
P/N 15064-1477-Green
E-(3) Bottom Elbow
P/N 15064-1176-Yellow
P/N 15064-1476-Green
Lock Washer
Lock Nut
F-(1) Exit Section
P/N 15064-1178-Yellow
P/N 15064-1478-Green
G-(1) Run-Off Section
P/N 15064-1179-Yellow
P/N 15064-1479-Green
H-(1) Lower Slide Support Bracket
P/N 15064-1120
I*-(2) Spiral Slide Anchor Nail
P/N 12100-848
* NOT ILLUSTRATED
Advertisement
Related Manuals for Creative Playthings Pine Skybox Spiral Slide SH902-810
Summary of Contents for Creative Playthings Pine Skybox Spiral Slide SH902-810
- Page 1 SH902-810 & SH902-814 Pine Skybox SPirAl Slide ASSembly mAnuAl Slide PArtS A-(1) Mounting Plate P/N 15064-1180-Yellow P/N 15064-1480-Green B-(1) Left Entrance P/N 15064-1175-Yellow P/N 15064-1475-Green C-(1) Right Entrance P/N 15064-1174-Yellow P/N 15064-1474-Green D-(2) Top Elbow P/N 15064-1177-Yellow P/N 15064-1477-Green All hardware on this set is specially coated for corrosion resistance. if non-Creative Playthings hardware is used, it muSt be galvanized or stainless steel.
- Page 2 Platform Board adjacent to the opening created. The the Post Extension to the gym Corner post. Narrow Platform Board will be re-installed later. PINE SKYBOx SPIRAL SLIDE Page 2 © Copyright 2005, Creative Playthings, printed in U.S.A. 19694-200 Rev C (07-16)
- Page 3 End Wall Support and End Platform Support at the pencil marks, using a End Platform 3/8" diameter drill. Support PINE SKYBOx SPIRAL SLIDE Page 3 © Copyright 2005, Creative Playthings, printed in U.S.A. 19694-200 Rev C (07-16)
- Page 4 #10 x 2-1/2" Wood Screws through the holes provided. Make sure that the inside edges of the Side Support (K) and Side Filler (L) are flush. PINE SKYBOx SPIRAL SLIDE Page 4 © Copyright 2005, Creative Playthings, printed in U.S.A. 19694-200 Rev C (07-16)
- Page 5 Assemble the remaining Elbow Section, Outlet Section and the Lower Slide Bracket using thirteen 5/16 x 3/4" hex bolts, twenty-six 5/16" flat washers and thirteen 5/16" Nylok nuts. PINE SKYBOx SPIRAL SLIDE Page 5 © Copyright 2005, Creative Playthings, printed in U.S.A. 19694-200 Rev C (07-16)
- Page 6 5/16" Nylok nuts. NOTE: Position Run-off Section so that it is flat with the ground surface. Run-off Section PINE SKYBOx SPIRAL SLIDE Page 6 © Copyright 2005, Creative Playthings, printed in U.S.A. 19694-200 Rev C (07-16)
- Page 7 Attach the Lower Slide Support Bracket to the Safety Rail (J or M) using two 5/16 x 1-1/2" Hex Bolt Assemblies. Lower Slide Support Bracket PINE SKYBOx SPIRAL SLIDE Page 7 © Copyright 2005, Creative Playthings, printed in U.S.A. 19694-200 Rev C (07-16)
- Page 8 Overtightening may cause the screws to protrude below the Platform Boards. Save all instruction sheets and receipts in case it becomes necessary to contact Creative Playthings for warranty service and/or part replacement. the warranty can be found in your owner’s manual.
