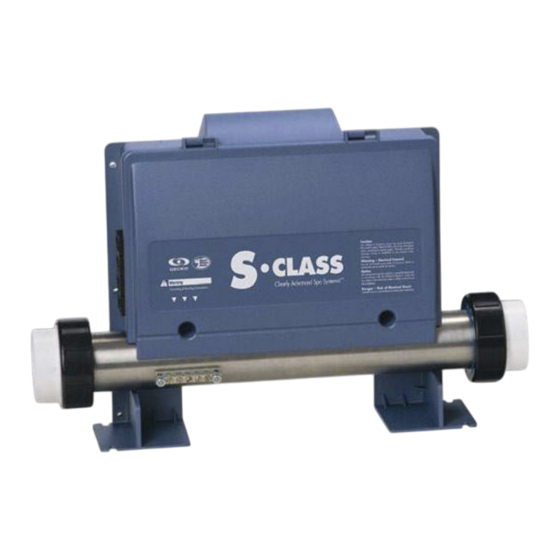

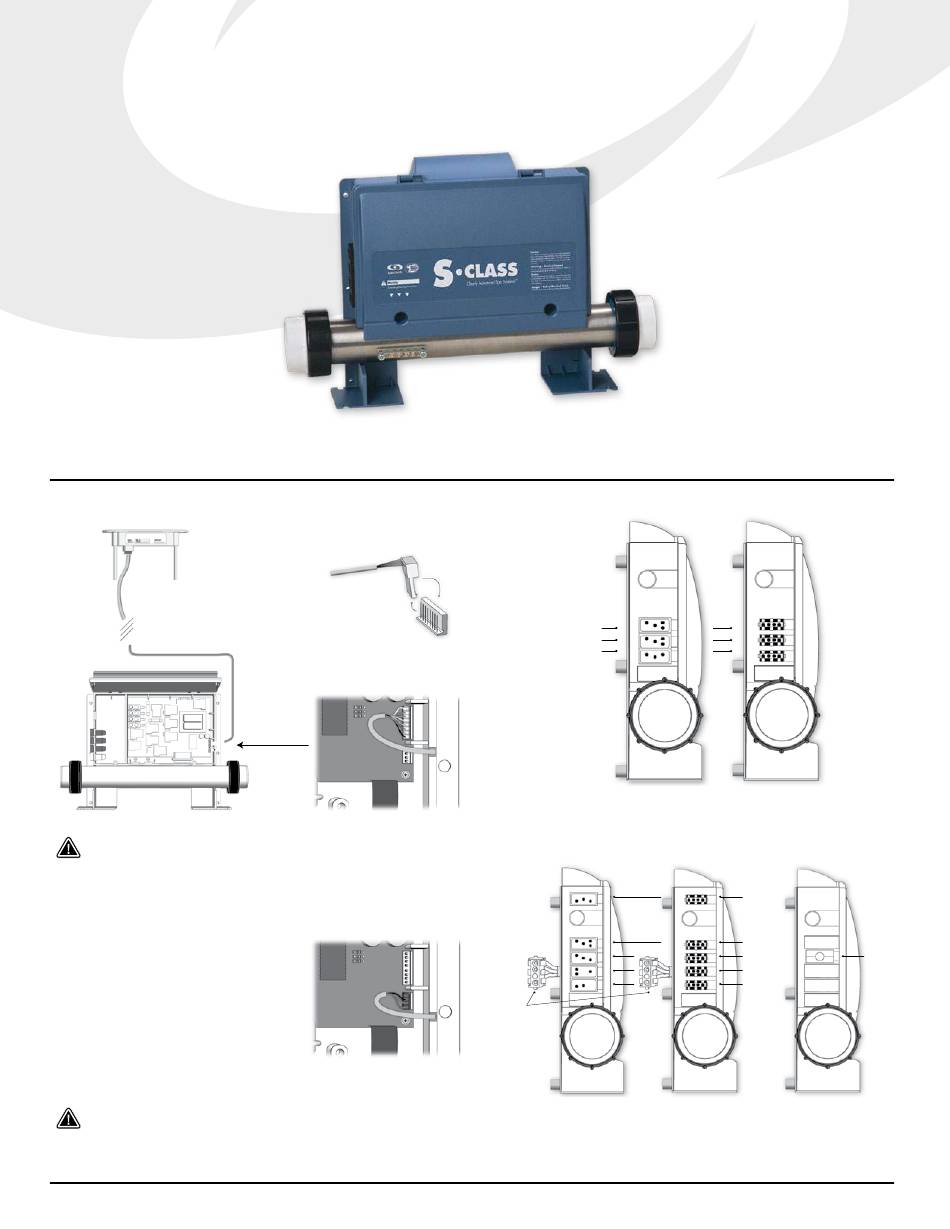

Gecko S-CLASS 0202-205162 Quick Start Card

1- Connect all outputs & keypads
Keypad
Power Box
Clearance between Low and High Voltage conductors
must be at least 1/4".
Connecting the
temperature probe
The water temperature probe
must be similarly connected
to the power box, with cable
following the same route as the
main keypad.
Make sure to connect all outputs with the proper output cable
(120 or 240V), see wiring diagram inside the door.
Quick Start Card
S-CLASS™ spa systems
Proper Way to Connect Keypad to
Standard Side Panel Port
Cable facing the left
side of the box
Pins slide
into the cable head
Keypad
Cable
Pump 2/blower
Pump 1
Header
Ozone
Stereo equipment
& fiber optic,
EXM-5 control box
Pack with J&J connectors
(0202-205162, 0202-205160
0202-205209 without heater)
Pack with Pack with
J&J connectors Amp connectors
(3-72-7079) (3-72-7078)
Ozone
Pump 1
Pump 2
Blower
Circ. pump
Pack with Amp connectors Pack without connectors
(0202-205163) (0202-205212)
Pump 1
