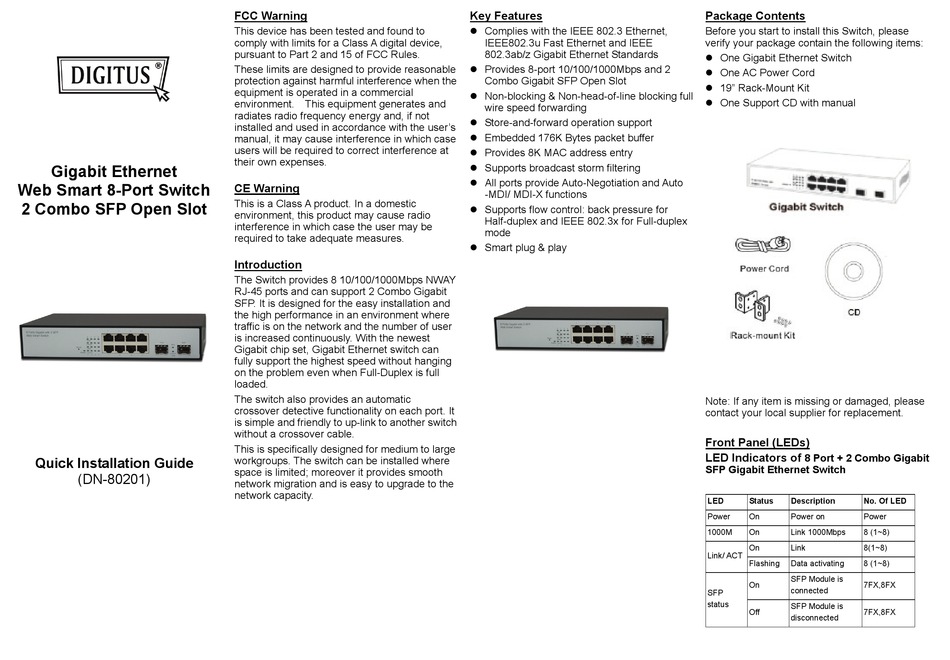

Digitus DN-80201 Quick Installation Manual

Gigabit Ethernet
Web Smart 8-Port Switch
2 Combo SFP Open Slot
Quick Installation Guide
(DN-80201)
FCC Warning
This device has been tested and found to
comply with limits for a Class A digital device,
pursuant to Part 2 and 15 of FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates and
radiates radio frequency energy and, if not
installed and used in accordance with the user's
manual, it may cause interference in which case
users will be required to correct interference at
their own expenses.
CE Warning
This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.
Introduction

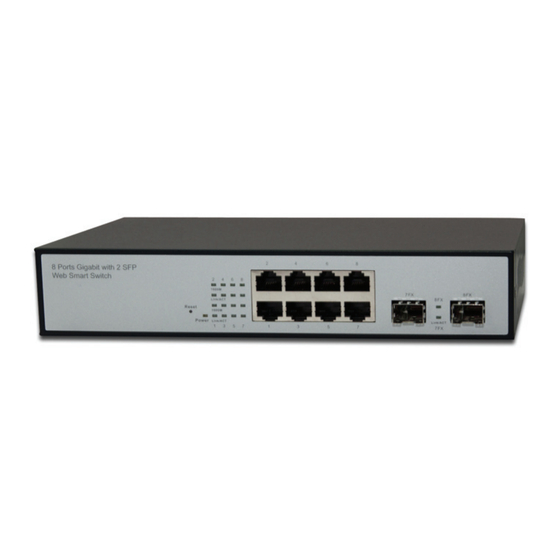

The Switch provides 8 10/100/1000Mbps NWAY
RJ-45 ports and can support 2 Combo Gigabit
SFP. It is designed for the easy installation and
the high performance in an environment where
traffic is on the network and the number of user
is increased continuously. With the newest
Gigabit chip set, Gigabit Ethernet switch can
fully support the highest speed without hanging
on the problem even when Full-Duplex is full
loaded.
The switch also provides an automatic
crossover detective functionality on each port. It
is simple and friendly to up-link to another switch
without a crossover cable.
This is specifically designed for medium to large
workgroups. The switch can be installed where
space is limited; moreover it provides smooth
network migration and is easy to upgrade to the
network capacity.
Key Features
 Complies with the IEEE 802.3 Ethernet,
IEEE802.3u Fast Ethernet and IEEE
802.3ab/z Gigabit Ethernet Standards
 Provides 8-port 10/100/1000Mbps and 2
Combo Gigabit SFP Open Slot
 Non-blocking & Non-head-of-line blocking full
wire speed forwarding
 Store-and-forward operation support
 Embedded 176K Bytes packet buffer
 Provides 8K MAC address entry
 Supports broadcast storm filtering
 All ports provide Auto-Negotiation and Auto
-MDI/ MDI-X functions
 Supports flow control: back pressure for
Half-duplex and IEEE 802.3x for Full-duplex
mode
 Smart plug & play
Package Contents
Before you start to install this Switch, please
verify your package contain the following items:
 One Gigabit Ethernet Switch
 One AC Power Cord
 19" Rack-Mount Kit
 One Support CD with manual
Note: If any item is missing or damaged, please
contact your local supplier for replacement.
Front Panel (LEDs)
LED Indicators of
8 Port + 2 Combo Gigabit
SFP Gigabit Ethernet Switch
LED Status Description No. Of LED
Power On Power on Power
1000M On Link 1000Mbps 8 (1~8)
On Link 8(1~8)
Link/ ACT
Flashing Data activating 8 (1~8)
SFP Module is
On 7FX,8FX
connected
SFP
status
SFP Module is
Off 7FX,8FX
disconnected
