Summary of Contents for Digitus DN-80100

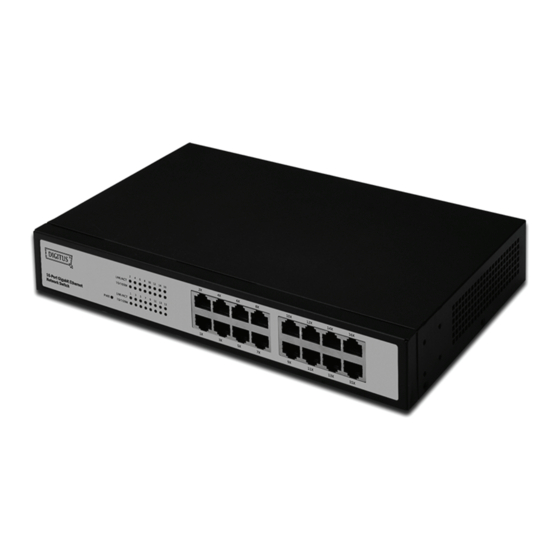

- Page 1 16/24 Port Desktop & Rack-mountable Gigabit Ethernet Switch User Manual DN-80100 • DN-80110...
-
Page 2: Package Contents
Package Contents The following items should be found in your package: • 16/24 Port Desktop & Rack-mountable Gigabit Ethernet Switch • Power Adapter • Quick Installation Guide • Rack-mount Bracket • Screw Make sure that the packets contains above items. If any of the above items is missing or damaged, please contact your distributor. -
Page 3: Table Of Contents
Content 1. INTRODUCTION ..............1 1.1. PRODUCT OVERVIEW..........1 1.2. MAIN FEATURES ............1 1.3. STANDARDS ..............1 1.4. WORKING ENVIRONMENT ......... 2 2. HARDWARE INSTALLATION ..........2 2.1. BEFORE INSTALLATION ..........2 2.2. INSTALLATION ............2 2.3. CONNECTING THE 16/24 PORT DESKTOP & RACK-MOUNLABLE GIGABIT ETHERNET SWITCH TO YOUR NETWORK .......... -
Page 4: Product Overview
1. lntroduction Thank you for choosing the 16/24 Port Desktop & Rack- mountable Gigabit Ethernet Switch. 1.1. Product Overview The 16/24 Port Desktop& Rack-mountable Gigabit Ethernet Switch provides non-blocking, wire speed switching for your 10, 100, and 1000 megabit network clients. Drop this switch in place of your current work group hub or switch, and you can upgrade your high requirement workstations to full Gigabit speeds as necessary, while continuing to service other clients... -
Page 5: Main Features
1.2. Main Features • Compliant with the IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T specifications • 32/48Gbps switching fabric capacity • 16/24 port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch • Full/Half-Duplex capability on each TX port (only support full duplex in 1000M) •... -
Page 6: Before Installation
2.lnstallation 2.1. Before Installation The setup of the Switch can be performed using the following steps: • Install the 16/24 Port Desktop & Rack-mountable Gigabit Ethernet Switch in a fairly cool and dry place. See working environment for the acceptable operation temperature and humidity ranges •... -
Page 7: Led Indicators
2.3. Connecting the 16/24 Port Desktop & Rack- mountable Gigabit Ethernet Switch to Your Network Description Function Connect to Power adapter, please don't use the unknown power adapter, otherwise your device may be damaged. These ports support network speeds of 10Mbps, 100Mbps or 1000Mbps, and can operate in half and full duplex transfer modes. -
Page 8: Troubleshooting
3.Troubleshooting 1. The Power LED is not lit • Check if the AC power cord is well connected. Try to unplug and plug back in the power cord to the switch or try another power outlet. 2. The Link LED is not lit •...
