Digitus DN-80212 Quick Installation Manual

Gigabit Switch
Web Management
16-Port + 2 Gigabit SFP
(IPv6)
Quick Installation Guide
(DN-80212)
FCC Warning
This device has been tested and found to
comply with limits for a Class A digital device,
pursuant to Part 2 and 15 of FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment.
equipment generates and radiates radio
frequency energy and, if not installed and
used in accordance with the user's manual, it
may cause interference in which case users
will be required to correct interference at their
own expenses.
CE Warning
This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.
Introduction
The Switch provides 16
10/100/1000Mbps NWAY RJ-45 ports and
additional 2 Gigabit SFP Open Slot to uplink.
It is designed for easy installation and high
performance in an environment where the
traffic on the network and the number of user
increased continuously. With the newest
Gigabit chip set, 19" Gigabit Ethernet switch
can fully support the highest speed without
hanging on problem even when Full-Duplex is
full loaded.
The switch also provides automatic
crossover detection functionality on each
port. It is simple and easy up-link to another
switch without any crossover cable.
The rack-mount size is specifically
designed for medium to large workgroups.
The switch can be installed where the space
is limited; moreover, it provides smooth
network migration and easy upgrade the
network capacity. The 19" size can be
rack-mount on 19" cabinet.
Key Features
 Complies with IEEE 802.3 Ethernet,
IEEE 802.3u Fast Ethernet ,IEEE 802.3ab
Gigabit Ethernet Standards
 Provides 16 x 10/100/1000Mbps RJ-45
ports and 2 Gigabit SFP Open Slot
 19" rack-mount size
This  Non-blocking & Non-head-of-line blocking
full wire speed forwarding
 Store-and-forward operation support
 Supports 9 KB JUMBO packet
 Provides 16K MAC address entry
 Supports broadcast storm filtering
 All ports provide Auto-Negotiation and Auto
-MDI/ MDI-X functions
 Supports flow control: back pressure for
Half-duplex and IEEE 802.3x for Full-duplex
mode
 Smart plug & play
x

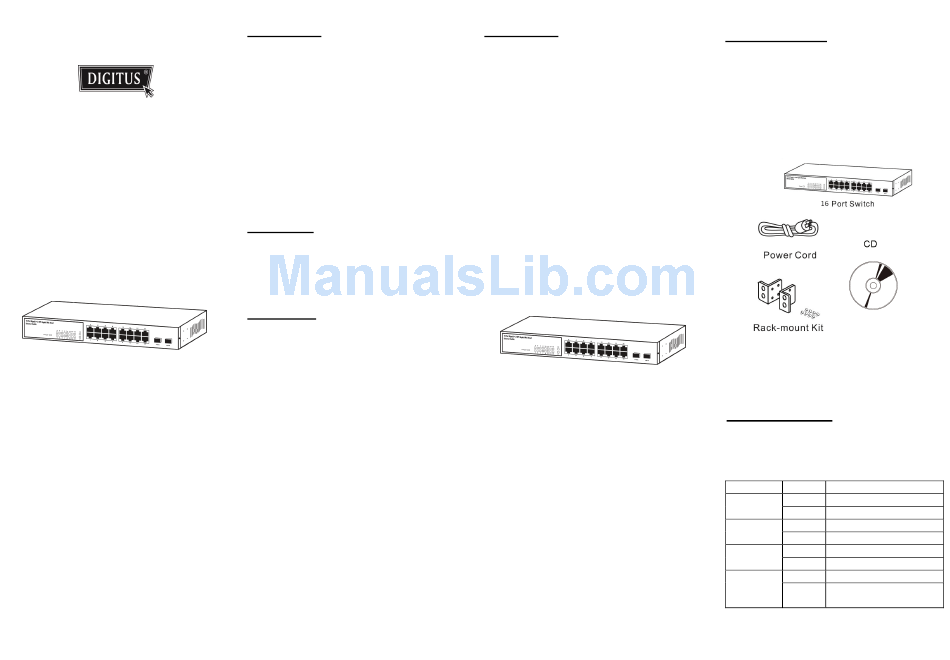

Package Contents
Before you start to install this Switch, please
verify your package contain the following
items:
• One Gigabit Ethernet Switch
• Rack-mount Kit for Rack Installation
• One AC Power Cord
• One CD ( User's Manual)
Note: If any of these items is missing or
damaged, please contact your local supplier for
replacement.
Front Panel (LEDs)
LED Indicators of 16
Ports Gigabit
+ 2 Gigabit SFP Ethernet Switch
LED Status Description
On Power on
Power
off Power off
LINK/ ACT On Link
Port 1~16 Flashing Data activating
1000M On Gigabit Speed
Port 1~16 Off Not Gigabit Speed
SFP On SFP module is plugged
Port 17 – No SFP module is
Off
18 plugged
