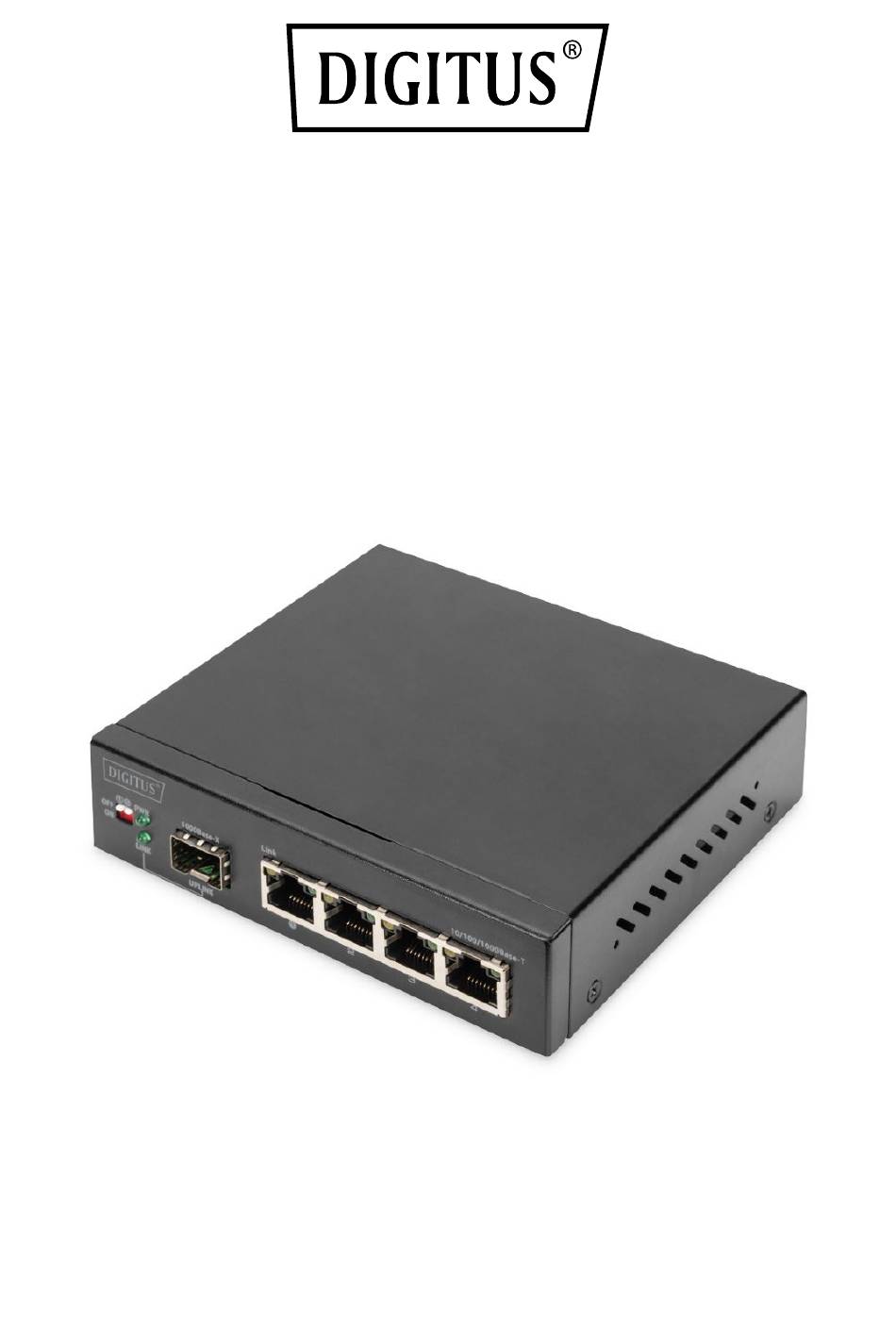

- Page 1 4-Port Gigabit Network Switch, 1 SFP Uplink Quick Installation Guide DN-80120...
-
Page 2: Product Introduction
1. Product Introduction DIGITUS® 4-Port Gigabit Network Switch, 1 SFP Uplink. The product provides high-speed packet forwarding capability and ample backplane bandwidth to ensure clear and smooth image transmission. It is embedded in static electricity and surge protection circuit to improve product stability. It also supports VLAN... -
Page 3: Specifications
4. Specifications Power supply AC Adapt to the AC 100 ~ 240V Power part voltage range Power <10W consumption 1~4 Electrical interface: Ports 10/100/1000 Mbps Fiber interface: 1000 Mbps Port Electrical interface : parameters Transmission Normal mode, 0-100m distance Long-distance mode,0-330m Fiber interface: 20km Network IEEE802.3/802.3u/802.3z/802.3ab... -
Page 4: Product Overview
109mm×125mm×32mm Dimensions (5 Port Switch) Housing Aluminum shell, IP30 protection Physical Color black Characteristics Weight 0.43kg (5 Port Switch) DIN-rail mounting, wall mounting Installation (with optional kit) Reliability MTBF ≥500000h 5. Product Overview DIP Switcher Fiber Link LED Power LED SFP Uplink Port Electric port Link LED RJ-45 Port... -
Page 5: Product Diagram
5.1 Product Diagram Broadband Router Home Cinema Wireless Access Point IPTV Laptop Game Player VoIP Phone Network cable IP Camera Fiber cable 5.2 LED Indicator status Description Power Operating normally PWR is not connected or is not operating properly Port link UP Link flash Port forwarding data... - Page 6 5.3 DIP switch The switch defaults to the standard network mode at the factory, and the dial keys ① ② are in the off position. After the device is power on, all of ports are interoperable. One-to-one isolation: Dial key ①...
-
Page 7: Port Isolation
6. Important function 6.1 Port Isolation The switch cannot carry out data transfer between each other, only to the optical port to communicate, so the data conversion more efficient, the system is running more secure. 6.2 One-to-one Isolation When two switches A and B are connected through the optical interface, the A switch port 1 can only communicate with the B switch port 1. -
Page 8: Installation
6.3 Long distance mode By default, the switch electrical port transmission distance of 0-100 meters, open long distance mode, the electrical port for 10Mbit/s, to meet the high-definition video transmission bandwidth while increasing the maximum transmission distance of 330 meters. Thus enabling the ability to install IP cameras at the front of the field. -
Page 9: Connect The Cable
7.2.1 Install to the desktop You can place this product directly on a clean, solid, grounded desk. 7.2.2 Wall mounted You can also place this product on a clean, solid vertical wall. The installation process is as follows: 1. Fix the mounting brackets with screws 2. - Page 10 9. Appendix - Port Properties 9.1 Electrical port properties Interface Type RJ45 Speed 10/100/1000Mbps (Gigabit switch) Duplex mode Half-duplex, full-duplex, adaptive Cable standard MDI/MDI-X Support standards IEEE 802.3/802.3u 10Base-T: 3/4/5 twisted pair, supports a maximum transmission distance of 300m Cable type ...
- Page 11 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
