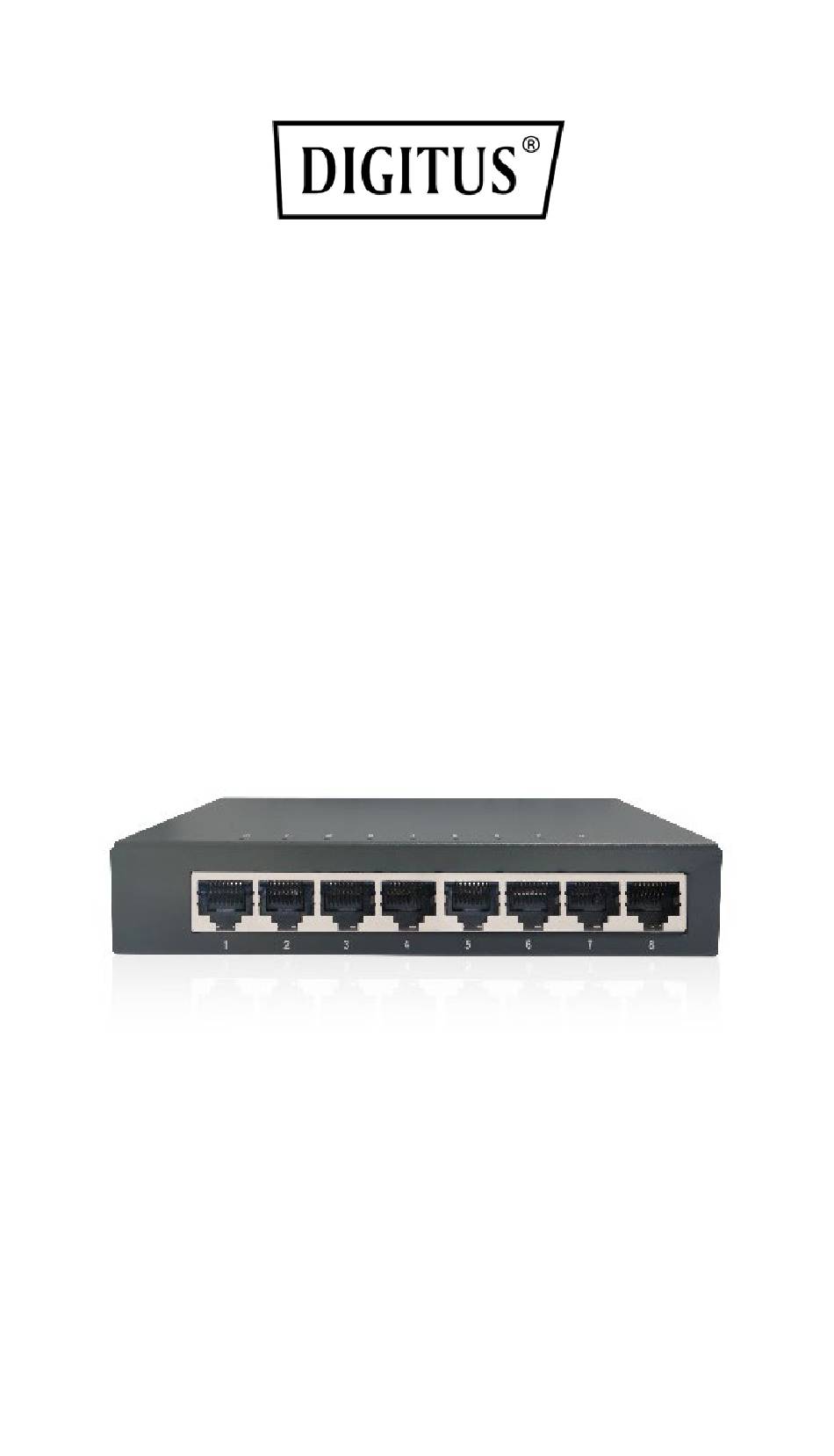

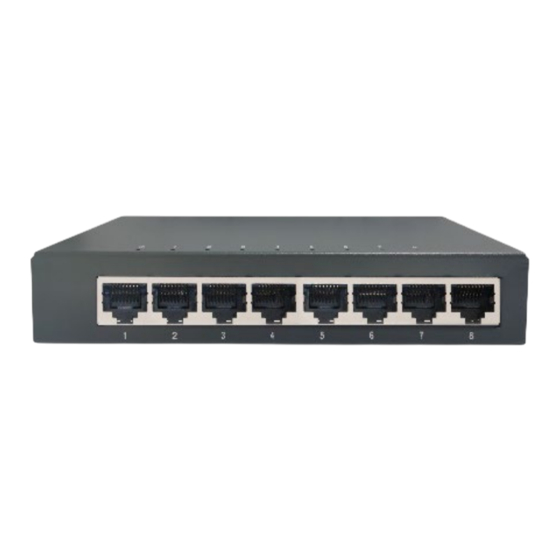

- Page 1 8-PORT GIGABIT SWITCH, DESKTOP, UNMANAGED Quick Installation Guide DN-80066-1...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............3 Main feature ..............3 Package Content ............... 4 Specifications ..............4 Hardware Description ............5 5.1 Front Panel ..............5 5.2 Rear Panel ..............6 Installation the Switch ............7 6.1 Installation Environment ..........7 6.2 Desktop Installation ............ -
Page 3: Introduction
1. Introduction The DN-80066-1 SOHO network switch is the ideal solution for home networks and small offices. With 8 Gigabit ports, it offers fast and reliable connections for all your devices. Thanks to its simple plug-and-play installation and compact, fanless design, it requires little maintenance and fits perfectly into any network... -
Page 4: Package Content
3. Package Content 8-Port Switch 5V/1A Mains adapter Quick Installation Guide (QIG) 4. Specifications IEEE802.3, IEEE802.3u, Standard IEEE802.3z, IEEE802.3x, IEEE802.3az, IEEE802.3ab 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5, 5e Network ¬Media cable (≤100m) 1000BASE-T: UTP category 5e, 6 cable (≤100m) MAC Address Table 4K, Auto-learning, Auto-aging... -
Page 5: Hardware Description
DC Pug Electrode Inside (+), Outside (-) Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F) Temperature Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F) Operating Humidity: 10% ~ 90% non-condensing Humidity Storage Humidity: 5% ~ 90% non-condensing 5. -
Page 6: Rear Panel
LED indicator Color Function Off: No Power supply. Green Light: Indicates the switch has power. Off: No device is connected to the corresponding port. Light: Indicates the link through that port is successfully DATA Green established at 10/100/1000Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port. -
Page 7: Installation The Switch
6. Installation the Switch Precautions: To avoid equipment damage and personal injury, observe the following precautions: The Switch room should be dry and ventilated, free from corrosive gases and strong electromagnetic interference. The humidity of the Switch equipment room should be ... -
Page 8: Desktop Installation
Ensure the stability of the workbench and good grounding. Check whether cables and connectors required for installation are in place (less than 100m). Environment requirements: The operating temperature ranges from 0°C to 40°C and the relative humidity ranges from 5% to 90%. -
Page 9: Turn On The Switch
7. Turn on the switch The PoE switch can be used with DC power supply. Powering on the switch, it will automatically initialize, and its LED indicators will respond as follows: Firstly, the Power LED indicator will light up. Then, the data LED indicators will flash momentarily for ...
