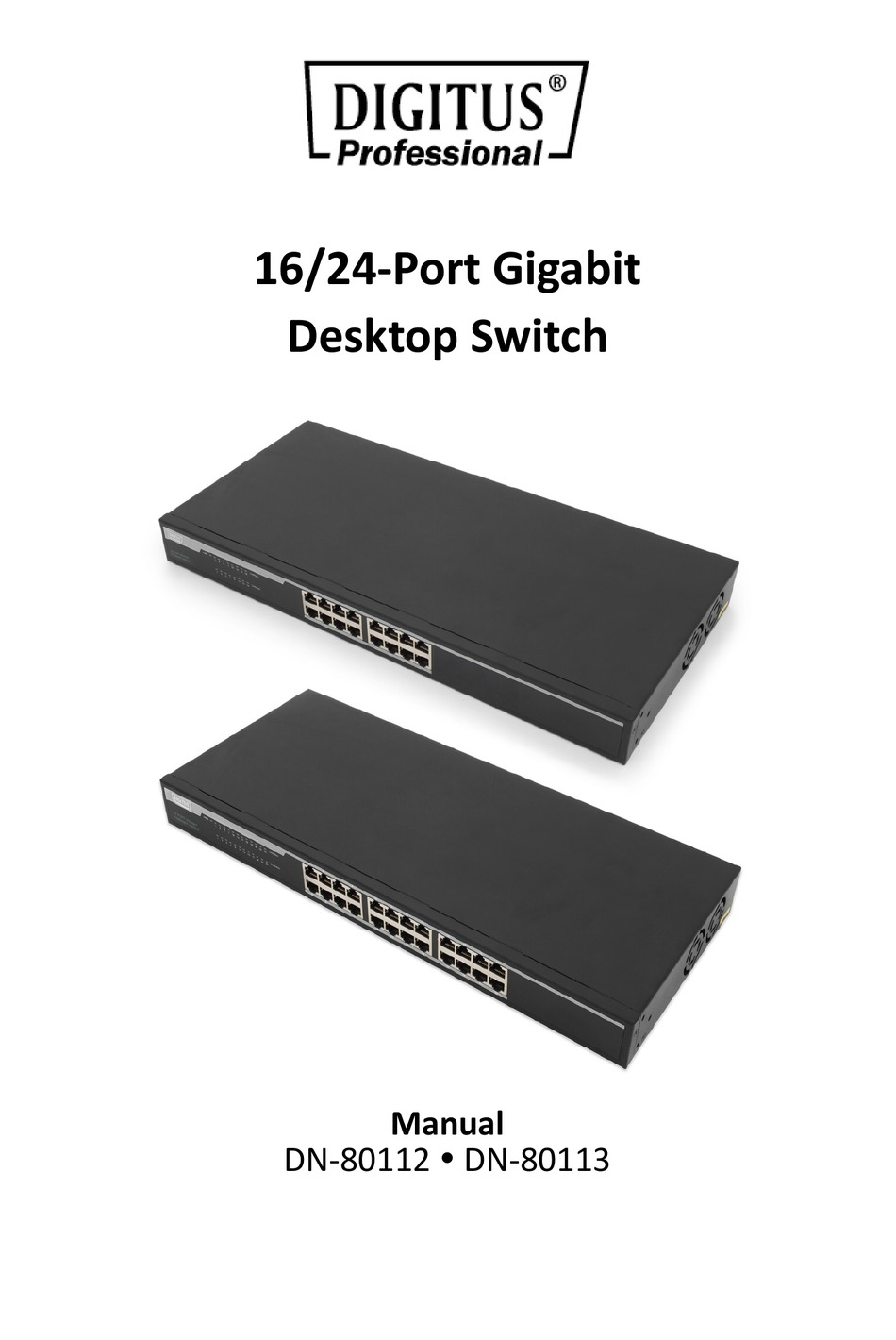

- Page 1 16/24-Port Gigabit Desktop Switch Manual DN-80112 DN-80113...
-
Page 2: Key Features

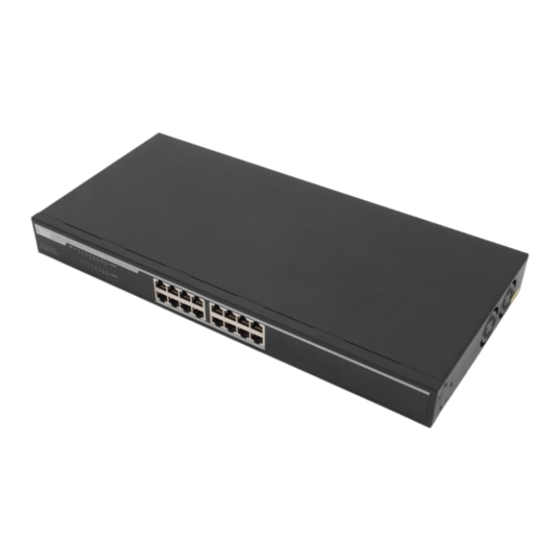

Introduction The DN-80112/DN-80113 is an Unmanaged Gigabit Ethernet rack-mount switch that provides wire connection. It provides Gigabit Ethernet switching function, which allows high-performance and backward compatible to all speed connections, 10Mbps, 100Mbps and 1000Mbps Ethernet networks. The Ethernet Switch delivers all the advantages of a switching hub in a standard 1U size of metal enclosure and it is ideal for any enterprise office or data server room. -
Page 3: Product Specifications
Operating Temp: 0°C to 40°C Operating Humidity: 10% to 90% (Non-condensing) Power Consumption: 15 Watt @ AC 240V/60Hz (Maximum) EMI: CE Class A DN-80113 (24-Port 10/100/1000Base-TX Gigabit Ethernet Switch) Ports: 24-Port 10/100/1000Base-TX MAC Address: 8K Mac address table Jumbo Frame:... -
Page 4: Hardware Description
Hardware Description The Front Panel The front panel consists of LED Indications and 16/24 auto-sensing ports. LED Indicators Per Device: Power Per Port: LINK/ACT (Link/Activity) Figure 2. Front panel view of LED indications Status Color Description Power Green The switch is supplied with suitable power. Green The port is connecting. -
Page 5: Troubleshooting
The Real Panel The rear panel view of the Ethernet switch consists of an AC power connector. Figure 3. Rear panel view of the switch AC Power Connector Plug the female connector into the switch and male connector into a power outlet. - Page 6 Diagnosing LED Indicators If link indicator does not light after making a connection, check whether network interface (e.g., a network adapter card on the attached device), network cable, or switch port is defective. Be sure the cable is plugged into both the switch and corresponding device.
