Summary of Contents for Digitus DN-80119

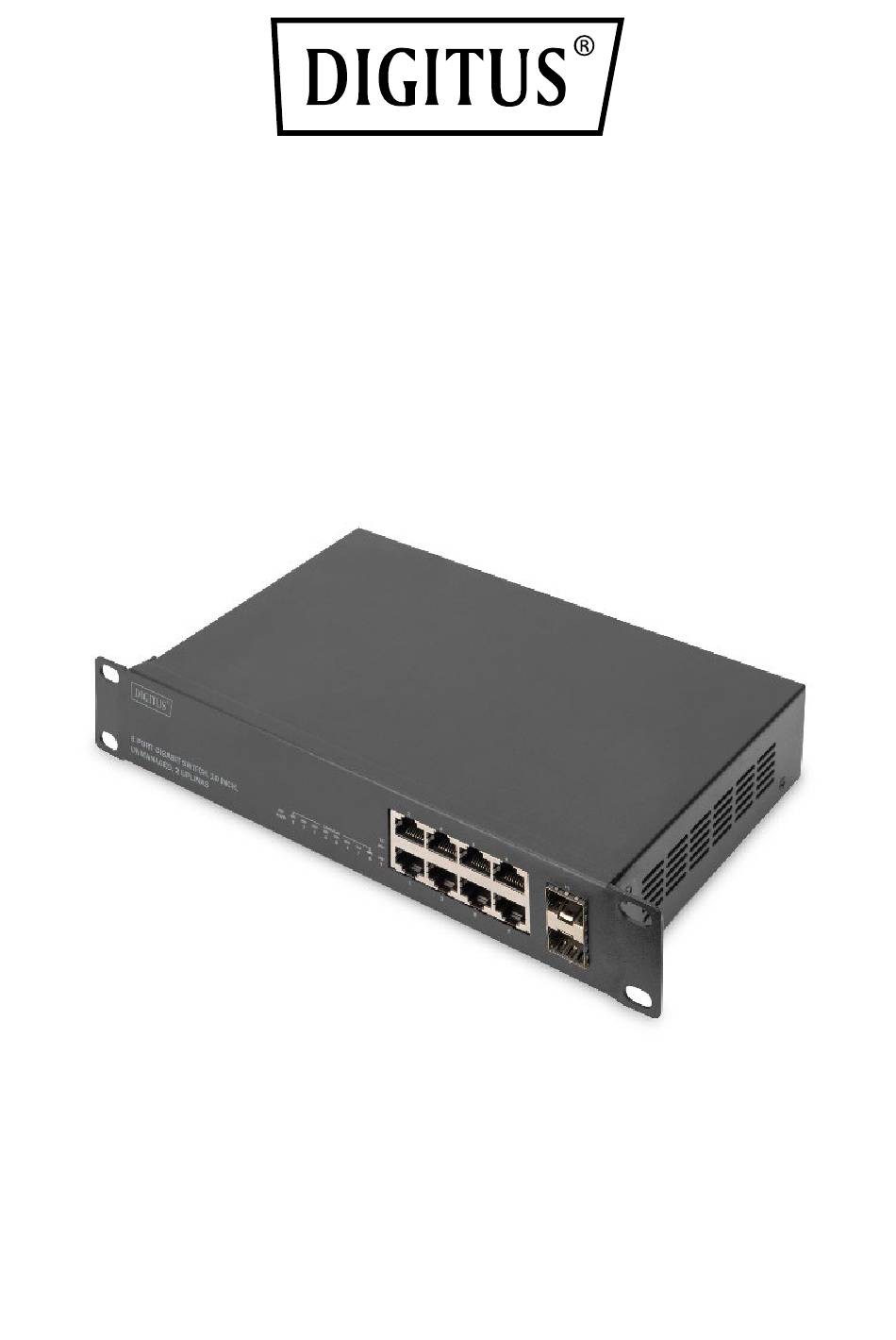

  • Page 1 8 Port Gigabit Switch, 10 inch, Unmanaged, 2 Uplinks Quick Installation Guide DN-80119...
  • Page 2: Product Introduction

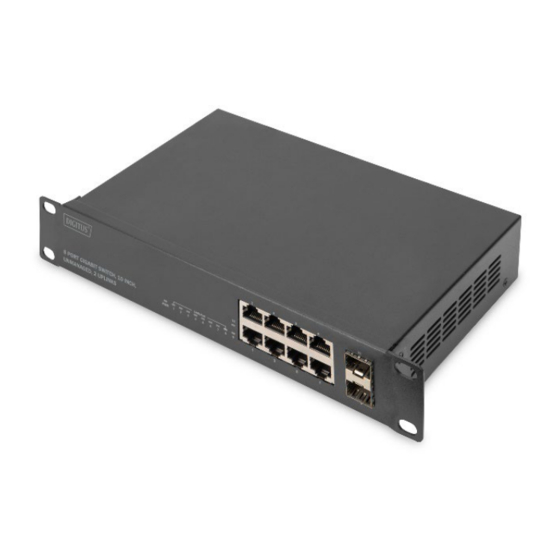

    1. Product introduction The 8-Port Gigabit Switch from DIGITUS® provides 8 x Gigabit RJ45 ports, additionally it offers 2 SFP uplink ports with 1 Gigabit bandwidth. Easily expand the existing network, providing a backplane bandwidth of 20 Gbps. The switch can be installed in 10-inch server racks and enclosures.
  • Page 3: Technical Features

    2. Technical Features Number of ports 8 x 10/100/1000Mbps Power consumption Type-F grounding plug (CEE 7/4) to Power cord IEC C13 cold-device socket Operating temperature 0°C to 40°C Operating humidity 20% - 85% (non-condensing) Storage temperature -10°C to 70°C Dimensions 252 x 150 x 44 mm Weight 0.95 kg...
  • Page 4: Package Content

    3. Package content 1x 8 Port Gigabit Switch, 10-Zoll, Unmanaged, 2 Uplinks • 1x Power supply cable • 1x QIG • 4. Hardware Description Thanks for purchasing the Ethernet Switch products. This product is a type Gigabit Ethernet Switch. The machine comes with 8 Port 10/100/1000Base-TX with 2 Gigabit SFP Port Ethernet Switch can satisfy the full speed forwarding of ports.
  • Page 5: Hardware Installation

    4.3 Rear Panel The rear panel view of the Switch consists of an AC power connector. Grounding: use specialized ground lead connect Connect the power adapter output terminal to this port. Supports input voltages 100-240VAC 5. Hardware installation Open a seal Open the shipping carton and carefully unpack its contents.
  • Page 6 5.2 Installation hole spacing 5.3 Plugging in the AC Power Cord You can connect AC power supply cord to switch back and the other side connect the power outlet. (Power outlet might as well grounding and support over voltage protection) Warning: Do not turn on the power switch before power cables are connected.
  • Page 7: Network Connection

    6. Network connection Game Player IPTV Wireless Access Point Home Cinema Laptop / PC VoIP Phone IP Camera Broadband Router This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures.
