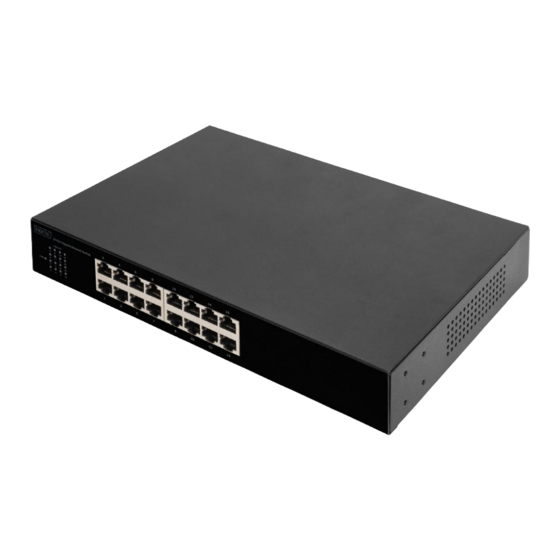

- Page 1 16/24-Port Gigabit Switch Quick Installation Guide DN-80112-1 DN-80113-1 ...
-
Page 2: Main Feature
1. Introduction DN-80112-1 has 16x10/100/1000Mbps RJ45 port, Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port. This switch is easy to install and does not require configuration， It is easy to manage and maintain which can meet a lot of networking environment, such as Business building, Community, Hotel, Office etc. -
Page 3: Specifications
4. Specifications Model DN-80112-1 DN-80113-1 IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, Standard IEEE802.3az, IEEE802.3x 10BASE-T: UTP category 3,4,5 cable (≤100m) Network Media 100BASE-TX: UTP category 5 cable (≤100m) 1000BASE-T: UTP category 5e cable (≤100m) MAC Address Table 8K, Auto-learning, Auto-aging Transfer mode... -
Page 4: Hardware Description
5. Hardware Description 5.1 Front Panel The Front Panel consists of Ethernet Ports. The LED indicators are also located on the panel. DN-80112-1 LED indicators 16x10/100/1000Mbps port DN-80113-1 LED indicators DIP Switch 24x10/100/1000Mbps port DIP Switch (Only for DN-80113-1) The DIP switch located on the left panel. - Page 5 5.2 Rear Panel The rear panel of the switch indicates an AC inlet power socket, which accepts input power from 100 to 240V AC, 50/60HZ. Power Socket Grounding Column Power socket Connect the female connector of the power cord here, and the male connector to the AC (Alternating Current) power outlet.
- Page 6 6.1 Desktop Installation Install the Switch on a desktop, please attach these cushioning rubber feet provided on the bottom at each corner of the Switch in case of the external vibration. Allow adequate space for ventilation between the device and the objects around it as example below.
- Page 7 6.2 Rack-mountable Installation The switch is rack-mountable and can be installed on an EIA-19-inch equipment rack. To do this, first, please install the mounting brackets on the switch’s side panels (one on each side), secure them with the included screws, and then use the screws provided with the equipment rack to mount the switch on the 19-inch rack as example below.
-
Page 8: Turn On The Switch
7. Turn on the switch Please connect the AC power cord into the rear of the switch and to an electrical outlet (preferably one that is grounded). When the switch is power on, the LED indicators flash momentarily for one second, which represents a resetting of the system.
