applications. Both PLC Reference Design boards include a Power Supply section,
specifically tailored for matching Power Line coupling requirements, and a Transceiver
section designed around the ST PLC chipset, including a 16-MHz crystal oscillator and an
external passive coupling filter for impedance adapting and noise filtering.
The Industrial Communication Board plus a PLC Reference Design board form a complete
PLC node. With the two boards together, and using the ST7538/40 Demo SW Tool, it is
possible to evaluate ST PLC chipset features and their transmitting and receiving
performances through an actual communication interface on the Power Line.
9.2

Motor control

ST Motor Control devices deal with many different applications, each of them having a
specific evaluation board controlled by means of the ST Industrial Communication Board.

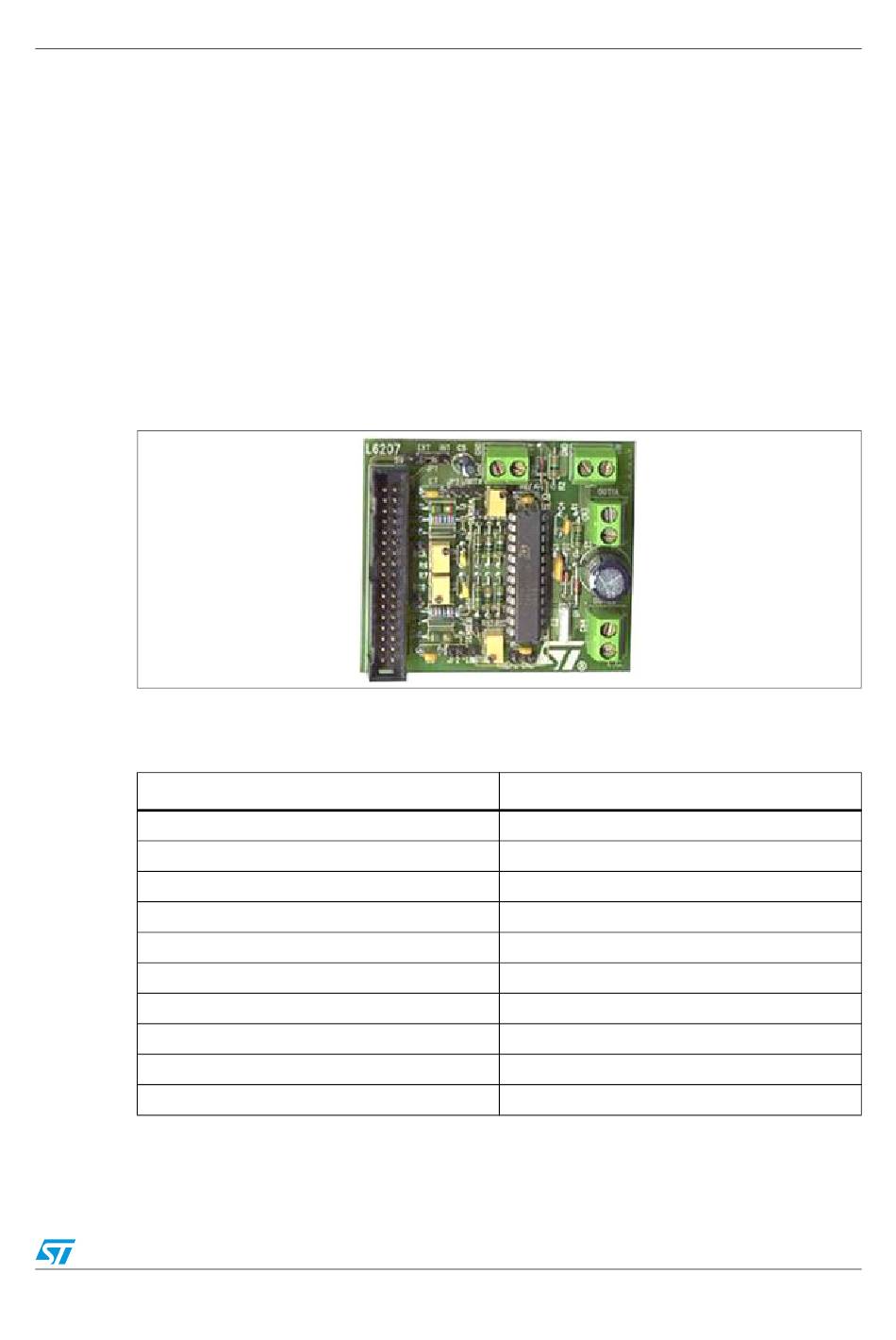

Figure 13. Motor control evaluation board EVAL6207N

Table 7 summarizes the ST Motor Control Evaluation Board family.
Table 7.
All Motor Control evaluation boards can be connected to the Industrial Communication
Board via connector J7.
ST motor control evaluation boards
Device
L6205 PowerDIP
L6206 PowerDIP
L6206 PowerSO
L6207N PowerDIP
L6208 PowerDIP
L6208 PowerSO
L6235 PowerDIP
L6225 PowerSO
L6227 PowerSO
L6229 PowerSO
Applications
Evaluation Board
EVAL6205N
EVAL6206N
EVAL6206PD
EVAL6207N
EVAL6208N
EVAL6208PD
EVAL6235N
EVAL6225PD
EVAL6227PD
EVAL6229PD
