ST EVALSP320SCPU User Manual

ST EVALSP320SCPU User Manual

Evaluation board for spear320s
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Introduction
This document applies to revision 2.0 SPEAr320S CPU evaluation boards.
This board can be used to evaluate SPEAr320S microprocessors; the evaluation board kit
comprises one board, one serial cable interface, and one power supply.
CPU board features
■
SPEAr320S embedded MPU
■
Up to 2 Gbit DDR2 333 MHz (standard 128 Mbytes)
■
Up to 16 Mbyte Serial Flash memory (standard 8 Mbytes)
■
Two USB 2.0 full host port channels
■
One USB 2.0 host device port
■
One serial port (up to 115 baud)
■
JTAG debug ports

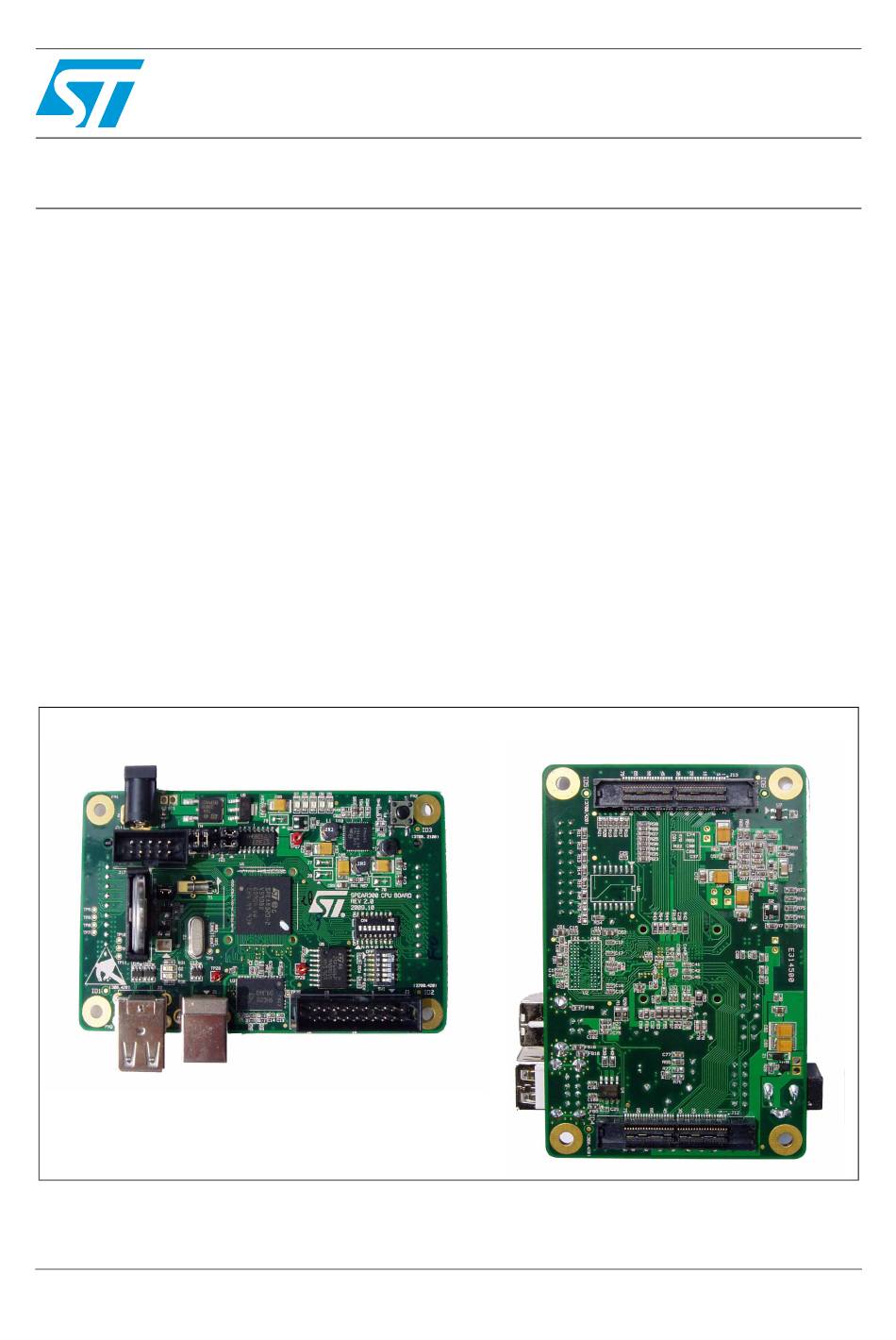

Figure 1.
EVALSP320SCPU evaluation board
March 2012
EVALSP320SCPU evaluation board for SPEAr320S
Top
Doc ID 022592 Rev 1
UM1499
User manual
Bottom
www.st.com
1/29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVALSP320SCPU and is the answer not in the manual?

Questions and answers

Related Manuals for ST EVALSP320SCPU

Summary of Contents for ST EVALSP320SCPU

  • Page 1: Figure 1. Evalsp320Scpu Evaluation Board

    UM1499 User manual EVALSP320SCPU evaluation board for SPEAr320S Introduction This document applies to revision 2.0 SPEAr320S CPU evaluation boards. This board can be used to evaluate SPEAr320S microprocessors; the evaluation board kit comprises one board, one serial cable interface, and one power supply.

  • Page 2: Table Of Contents

    Contents UM1499 Contents Getting started ..........5 Connections .
  • Page 3 UM1499 List of tables List of tables Table 1. Switch SW1 bits [2:1] ............7 Table 2.
  • Page 4 EVALSP320SCPU board block diagram ........

  • Page 5: Getting Started

    Connect a serial cable from connector J17 (serial link) to a host PC. On the host PC running Windows or Linux, start the Terminal program. Connect the +5 V voltage adapter (supplied in the EVALSP320SCPU package) to the J11 power voltage connector on the CPU board.

  • Page 6: Functional Description

    Functional description UM1499 Functional description The following figure shows the block diagram of the EVALSP320SCPU board. Figure 2. EVALSP320SCPU board block diagram Expansion connector bottom side NOR Flash DDR2 Serial I/F Power supply USB 2.0 Host 1 SPEAr320S USB 2.0...

  • Page 7: Static Memory Subsystem (Serial Flash Memory)

    UM1499 Functional description Signal termination A parallel termination is added on the clock lines to compensate, if needed, for the layout dissymmetry. Two 100k ohm resistors are used for each line in order to obtain an impedance of 50 ohms. All the other terminations are directly inside the pads (both on the SPEAr320S MPU and the memory sides).

  • Page 8: Serial Interface

    Functional description UM1499 Serial interface One serial interface port is available. Typically used as an OS monitor, this port is available on the J17 connector. It is possible to simulate a cross cable by changing the position of the J22 jumpers. Figure 3.

  • Page 9: Expansion Connectors

    UM1499 Expansion connectors Expansion connectors The CPU board has two 86-pin connectors (J12 and J13) that are used to extend the board. On the board the connectors are horizontally center-aligned, and the distance between the mechanical holes is 3400.00 th. Table 2 lists connector J12 pins.
  • Page 10 Expansion connectors UM1499 Table 2. CPU board extension connector J12 (continued) Description Description PL_GPIO11 PL_GPIO6 PL_GPIO19 PL_GPIO4 PL_GPIO15 PL_GPIO5 PL_GPIO14 PL_GPIO36 PL_GPIO41 PL_GPIO35 PL_GPIO31 +2.5V PL_GPIO32 +2.5V PL_GPIO25 +2.5V PL_GPIO22 +2.5V PL_GPIO21 INRESET PL_GPIO17 nRESET PL_GPIO12 +1.2V PL_GPIO10 +1.2V PL_GPIO7 +1.2V PL_GPIO1 +1.2V...

  • Page 11: Table 3. Cpu Board Extension Connector J13

    UM1499 Expansion connectors Table 3. CPU board extension connector J13 Description Description PL_GPIO47 +3.3V PL_GPIO49 PL_GPIO63 PL_GPIO56 PL_GPIO46 PL_GPIO58 PL_GPIO57 PL_GPIO64 PL_GPIO61 PL_GPIO45 PL_GPIO66 PL_GPIO48 PL_GPIO69 PL_GPIO50 PL_GPIO72 PL_GPIO55 PL_GPIO73 PL_GPIO59 PL_GPIO70 PL_GPIO60 PL_GPIO67 PL_GPIO65 PL_GPIO71 PL_GPIO62 PL_GPIO75 PL_GPIO68 PL_GPIO82 PL_GPIO52 PL_GPIO76 PL_GPIO53...
  • Page 12 Expansion connectors UM1499 Table 3. CPU board extension connector J13 (continued) Description Description PL_CLK3 AIN7 PL_CLK2 PL_CLK1 ADC VREFP 1. Physically connected to the internal metal plane of the connector. Pins 77 through 81 and 82 through 86 are shorted together. 12/29 Doc ID 022592 Rev 1...

  • Page 13: Switch And Jumper Settings

    UM1499 Switch and jumper settings Switch and jumper settings Switch 1 settings Table 4. Switch 1 (SoC functional configuration) Description Test – see Debug configuration below Reserved Reserved Reserved Reserved BootSel – see Debug configuration below Table 5. Switch 1 (debug configuration) Test bit Debug configuration Normal Mode (No debug enabled)

  • Page 14: Switch 2 Settings

    Switch and jumper settings UM1499 Switch 2 settings Table 7. Switch 2 settings Boot from SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 SW2-8 USB_BOOT ETH (parameter from I2C ROM) ETH (parameter from SPI ROM) Serial NOR (default setting) Parallel NOR 8 (EMI with ACK) Parallel NOR 16 (EMI with ACK) Parallel NAND 8...

  • Page 15: Jumpers And Connectors

    UM1499 Switch and jumper settings Jumpers and connectors The jumpers and connectors numbered below refer to the CPU board schematics (available on www.st.com/spear). Sheet 4 ● Connector J3 is a standard 20-pin 2.54 mm connector used for JTAG connections. ●...

  • Page 16: Board Components

    Board components UM1499 Board components Table 8. CPU board components Component Designator Footprint Description C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 C20 C21 C22 C23 C24 C25 C26 C27 C28 C29 C30 C31 Capacitor...
  • Page 17 UM1499 Board components Table 8. CPU board components (continued) Component Designator Footprint Description R10 R11 R12 R13 R14 R15 R16 R17 Resistor R18 R19 0603 Resistor 0603 10k ohm 1% 0.1W R20 R21 R22 R23 R24 R25 C75 C76 Capacitor 0603 Ceramic capacitor 10 nF 10% 50V X7R 0603 C61 C62...
  • Page 18 Board components UM1499 Table 8. CPU board components (continued) Component Designator Footprint Description Resistor R1 R53 0805 Resistor 0805 121k ohm 0.1% 0.1W R55 R56 Resistor 0603 Resistor 0603 150 Kohm 1% 0.1W Resistor R39 R40 0603 Resistor 0603 150 ohm 1% 0.1W Resistor 0603 Resistor 0603 330 ohm 1% 0.1W...
  • Page 19 ST2052; STm Current limited power distribution switches switch RS-232 driver SO16 ST3232C; STm RS-232 driver and receiver and receiver ST LD1117S25TR; STm low drop fixed positive voltage Voltage regulator SOT223 regulator 2.5V 800mA STM811; STm Reset generator and power monitor 3.3V Reset circuit...

  • Page 20: Board Layout

    Board layout UM1499 Board layout Note: The evaluation boards for SPEAr320S may use the same PCB as SPEAr320 devices. This is the reason why “SPEAr320 CPU BOARD” label can be found on some SPEAr320S boards. 20/29 Doc ID 022592 Rev 1...

  • Page 21: Figure 5. Spear320S Cpu Evaluation Board Layout (Top View)

    Figure 5. SPEAr320S CPU evaluation board layout (top view) Power (J11) Reset button (P1) & & & & Serial link (J17) & & 63($5 &38 %2$5' < & & & & USB Device (J1) JTAG (J3) Host (J2)

  • Page 22: Figure 6. Spear320S Cpu Evaluation Board Layout (Bottom View)

    Board layout UM1499 Figure 6. SPEAr320S CPU evaluation board layout (bottom view) Expansion connector (J13) & & & & & & & & & & & & & & & & & & & & & & & & & &...

  • Page 23: Appendix Alicense Agreements

    All other warranties, conditions or other terms implied by law are excluded to the fullest extent permitted by law. LIMITATION OF LIABILITIES. In no event ST or its licensors shall be liable to You or any third party for any indirect, special,...
  • Page 24 Demo Product if any. TERMINATION. ST may terminate this license at any time if You are in breach of any of its terms and conditions. Upon termination, You will immediately destroy or return all copies of the demo software and documentation to ST.
  • Page 25 Licensed Software or any portion or derivative thereof, for use with processors manufactured by or for an entity other than ST is a material breach of this Agreement and requires a separate license from ST. No source code and/or object code relating to and/or based upon Licensed Software is to be made available by You to any third party for whatever reason.
  • Page 26 You will take all reasonable precautions to ensure and monitor their compliance with such requirements. You agree to promptly notify ST in the event of a violation of any of the foregoing, and to cooperate with ST to take any remedial action appropriate to address the violation.
  • Page 27 UM1499 License agreements SEVERABILITY If any provision of this agreement is or becomes, at any time or for any reason, unenforceable or invalid, no other provision of this agreement shall be affected thereby, and the remaining provisions of this agreement shall continue with the same force and effect as if such unenforceable or invalid provisions had not been inserted in this Agreement.

  • Page 28: Revision History

    Revision history UM1499 Revision history Hardware revision history This user manual documents the revision 2.0 SPEAr320S CPU evaluation boards. Earlier board revisions are documented in UM0842, the EVALSPEAr320PLC user manual. Document revision history Table 9. Document revision history Date Revision Changes 02-Mar-2012 Initial release.
  • Page 29 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
